3240900
Part Number: 3240900
Product Information
Extended Description

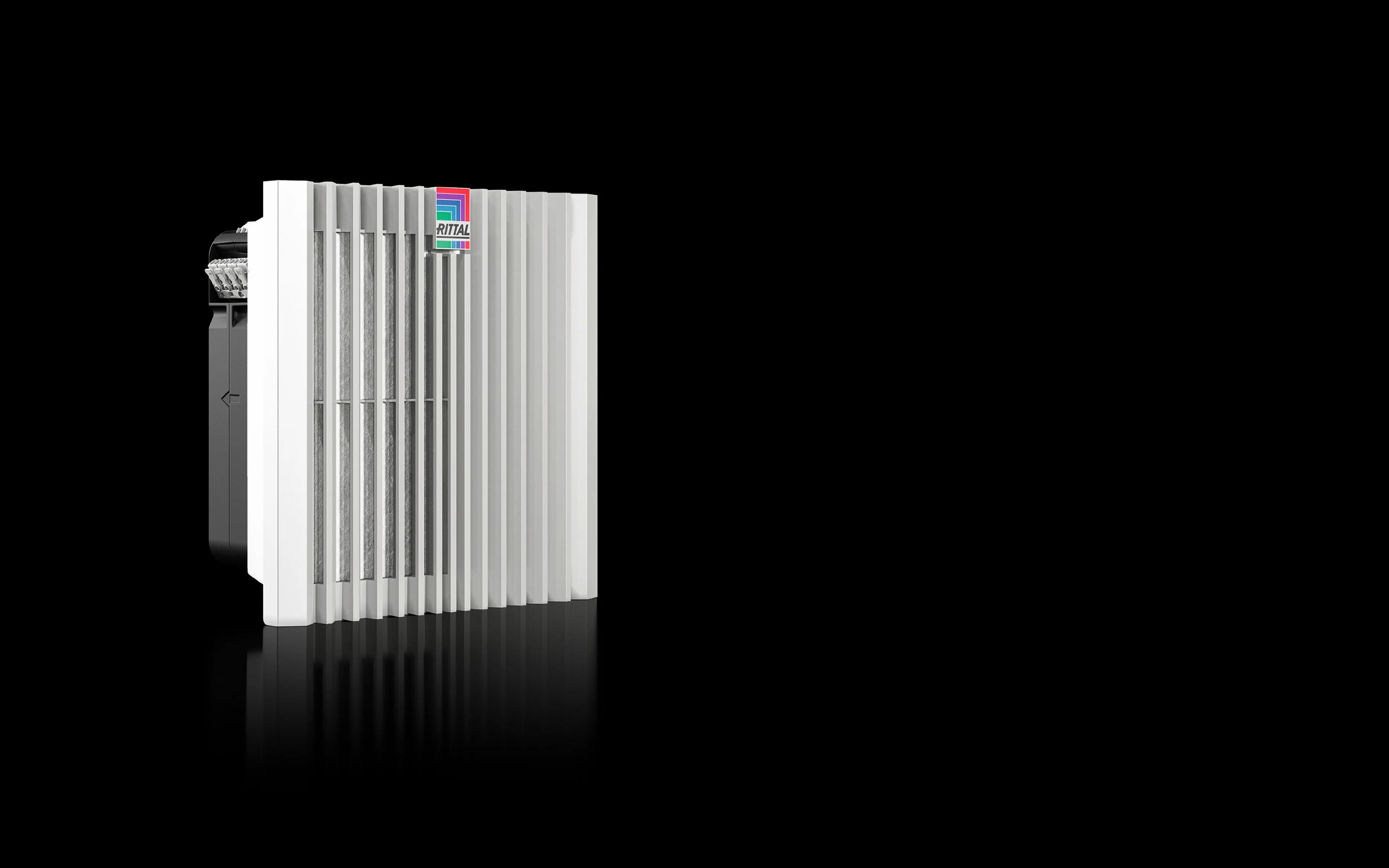

3240900 Rittal: SK Blue e+ fan-and-filter unit, EC technology, 218 m³/h, 100 V – 240 V, 1~, 50 Hz/60 Hz, WxHxD 255 x 255 x 137.5 mm, RAL 7035
Article number
SK 3240.900
Design
wall-mounted | EC
Product description
Blue e+ fan-and-filter units achieve maximum air throughput because they use pleated filters as standard. Wide-range input (100-240 V) enables worldwide use. Activation and monitoring via a Modbus interface supports exclusive features (automatic filter cleaning, filter maintenance display, emergency cooling function)
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
Diagonal, EC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 175 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 218 m³/h | At 60 Hz: 218 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 130 m³/h
Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 13.4 W
Rated current max.
At 50 Hz: 0.2 A
Dimensions
Width: 255 mm | Height: 255 mm | Depth: 137.5 mm
Installation depth
116.5 mm
Mounting cut-out
Cut-out width: 224 mm | Cut-out height: 224 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Operating temperature range
-25 °C...55 °C
Storage temperature range
-25 °C...70 °C
Noise level
At 50 Hz: 48 dB(A)
Interfaces
0 - 10 V/PWM input
Weight/pack
1.77 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177998070
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EC technology, 218 m³/h, 100 V – 240 V, 1~, 50 Hz/60 Hz, WxHxD 255 x 255 x 137.5 mm, RAL 7035
