3241124
Part Number: 3241124
Product Information
Extended Description

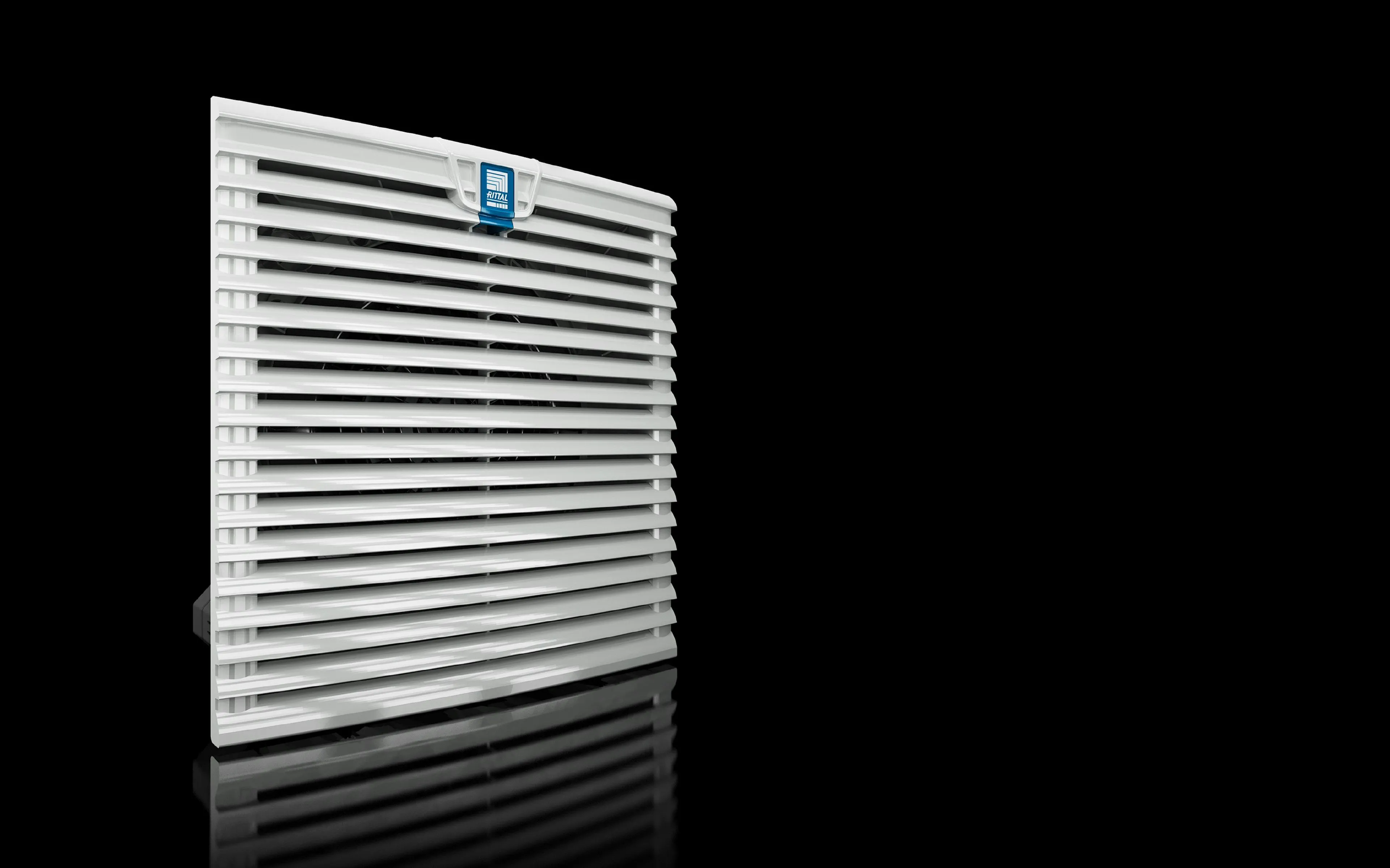

3241124 Rittal: SK Fan-and-filter unit TopTherm, 225 m³/h, 24 V (DC), WHD: 255 x 255 x 25 mm
Article number
SK 3241.124
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Diagonal, DC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
With DC: 225 m³/h
Air throughput, unimpeded airflow (with pleated filter)
With DC: 272 m³/h
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3240200: 171 m³/h
Rated operating voltage
24 V (DC)
Power consumption Pel
With DC: 19 W
Rated current max.
With DC: 0.78 A
Dimensions
Width: 255 mm | Height: 255 mm
Installation depth
107 mm
Mounting cut-out
Cut-out width: 224 mm | Cut-out height: 224 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 2 A
Note
To increase the air throughput, a pleated filter may optionally be used (see characteristic curve). Suitable for use with fan-and-filter units, roof-mounted fans and outlet filters.
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
With DC: 54 dB(A)
Weight/pack
2.04 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177652019
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Fan-and-filter unit TopTherm, 225 m³/h, 24 V (DC), WHD: 255 x 255 x 25 mm
