3241500
Part Number: 3241500
Product Information
Extended Description

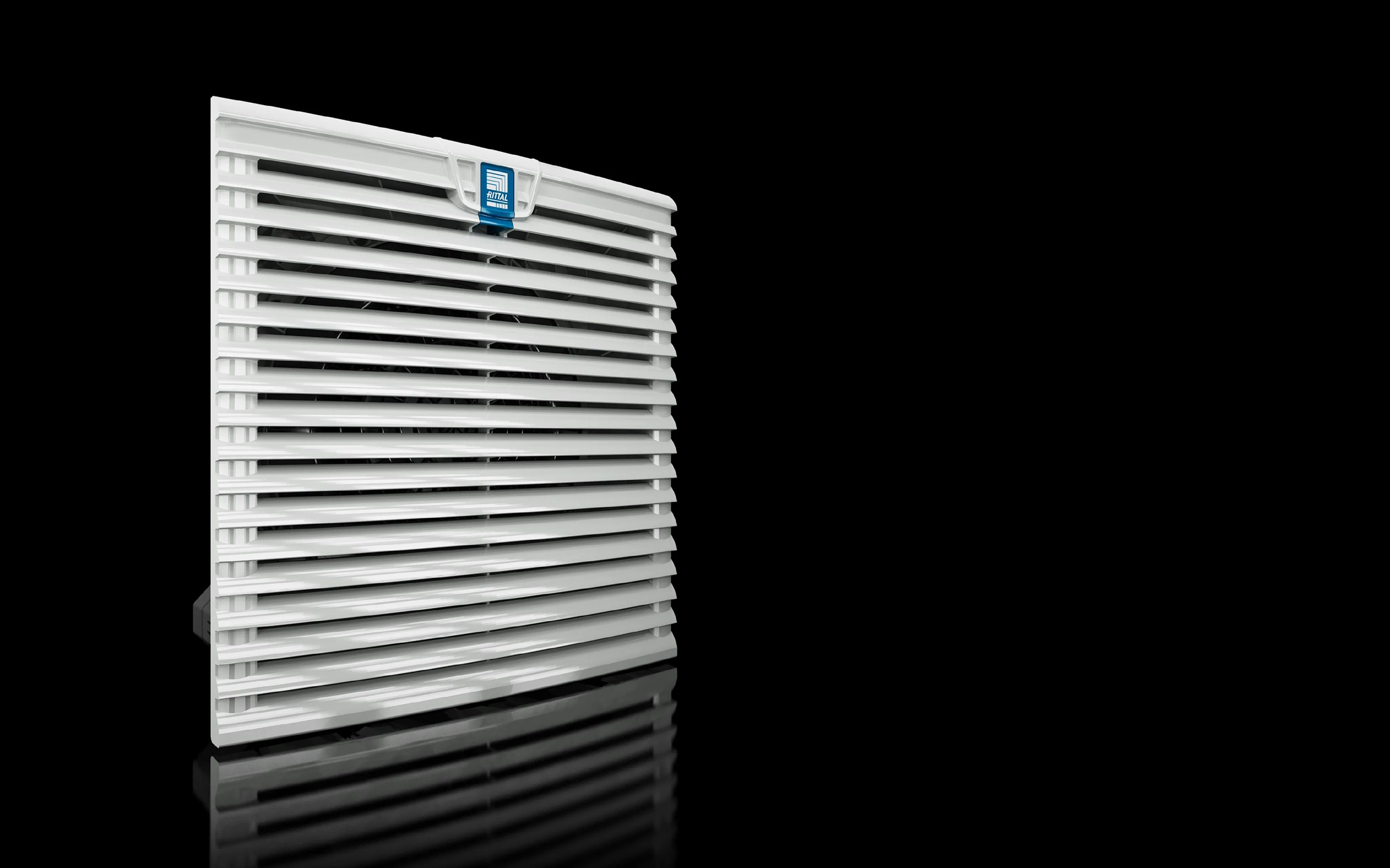

3241500 Rittal: SK Fan-and-filter unit TopTherm, 225 m³/h, 200-240 V, 1~, 50/60 Hz, WHD: 255 x 255 x 25 mm, EC technology
Article number
SK 3241.500
Design
wall-mounted | EC
Product description
Energy-efficient version of the TopTherm fan-and-filter units with diagonal fan technology. For controlling and monitoring fans 3240.50x to 3245.51x. The fan may be activated via the control interface with tacho signal output integrated as standard, and monitoring of the fan speed and function is supported.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Diagonal, EC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 225 m³/h | At 60 Hz: 225 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 272 m³/h | At 60 Hz: 272 m³/h
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3240200: 171 m³/h
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 11 W | At 60 Hz: 11 W
Rated current max.
At 50 Hz: 0.17 A | At 60 Hz: 0.15 A
Dimensions
Width: 255 mm | Height: 255 mm
Installation depth
107 mm
Mounting cut-out
Cut-out width: 224 mm | Cut-out height: 224 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Control interface
Yes
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Note
To increase the air throughput, a pleated filter may optionally be used (see characteristic curve). Suitable for use with fan-and-filter units, roof-mounted fans and outlet filters.
Operating temperature range
-25 °C...55 °C
Storage temperature range
-25 °C...70 °C
Noise level
At 50 Hz: 52 dB(A) | At 60 Hz: 52 dB(A)
Weight/pack
1.98 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177652026
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Fan-and-filter unit TopTherm, 225 m³/h, 200-240 V, 1~, 50/60 Hz, WHD: 255 x 255 x 25 mm, EC technology
