3241710
Part Number: 3241710
Product Information
Extended Description

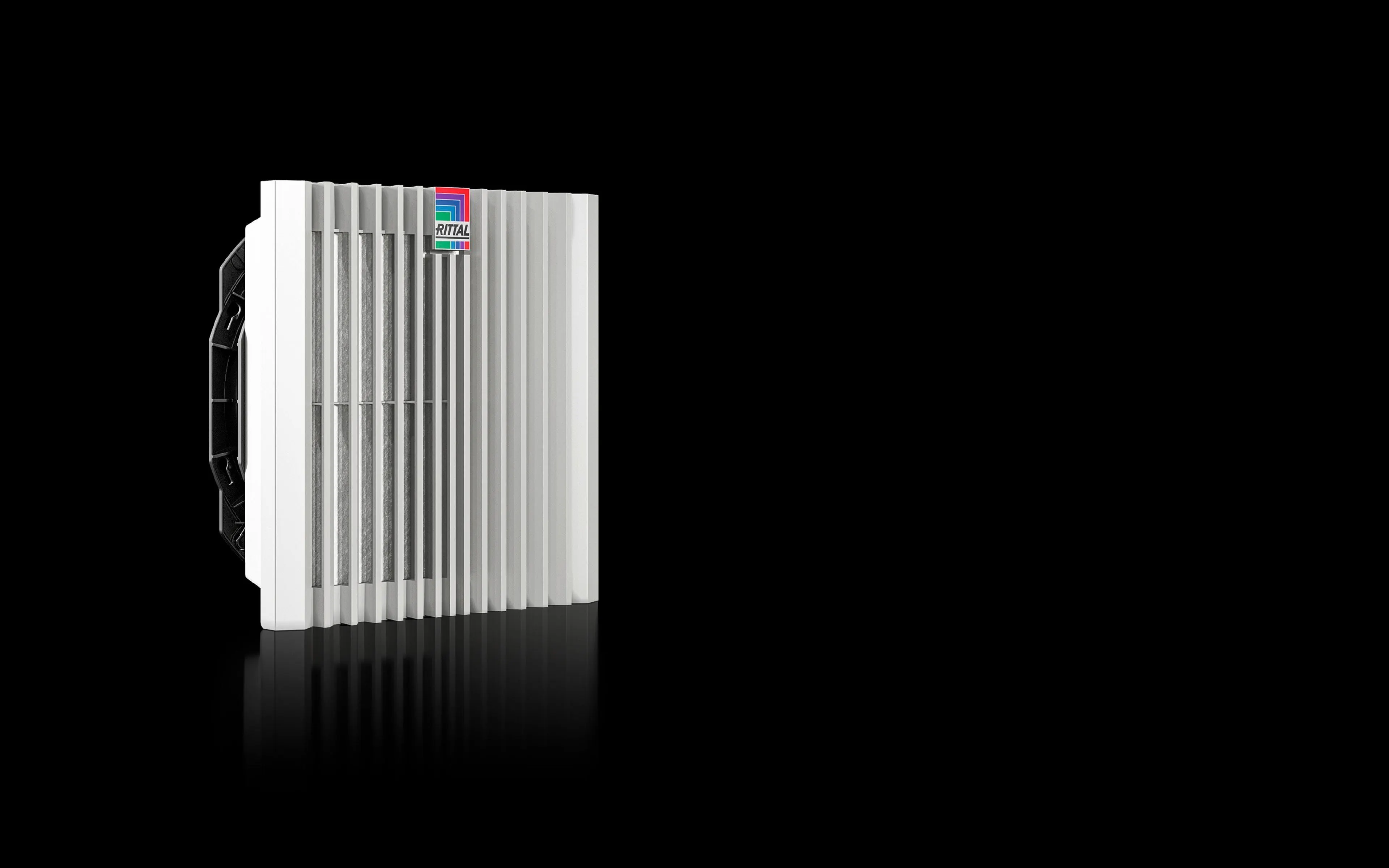

3241710 Rittal: SK Blue e+ fan-and-filter unit, 272/280 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 255 x 255 x 129 mm, RAL 7035
Article number
SK 3241.710
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
Diagonal, shaded pole motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 225 m³/h | At 60 Hz: 245 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 272 m³/h | At 60 Hz: 280 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 173 m³/h | At 60 Hz: 187 m³/h
Air throughput with matching outlet filter including pleated filter
At 50 Hz: 242 m³/h | At 60 Hz: 246 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 43.4 W | At 60 Hz: 52.2 W
Rated current max.
At 50 Hz: 0.54 A | At 60 Hz: 0.6 A
Dimensions
Width: 255 mm | Height: 255 mm | Depth: 129 mm
Installation depth
108 mm
Mounting cut-out
Cut-out width: 224 mm | Cut-out height: 224 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Note
With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 53 dB(A) | At 60 Hz: 54 dB(A)
Weight/pack
1.8 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177998049
ETIM 8
EC000320
ETIM 7.0
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, 272/280 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 255 x 255 x 129 mm, RAL 7035
