3243110
Part Number: 3243110
Product Information
Extended Description

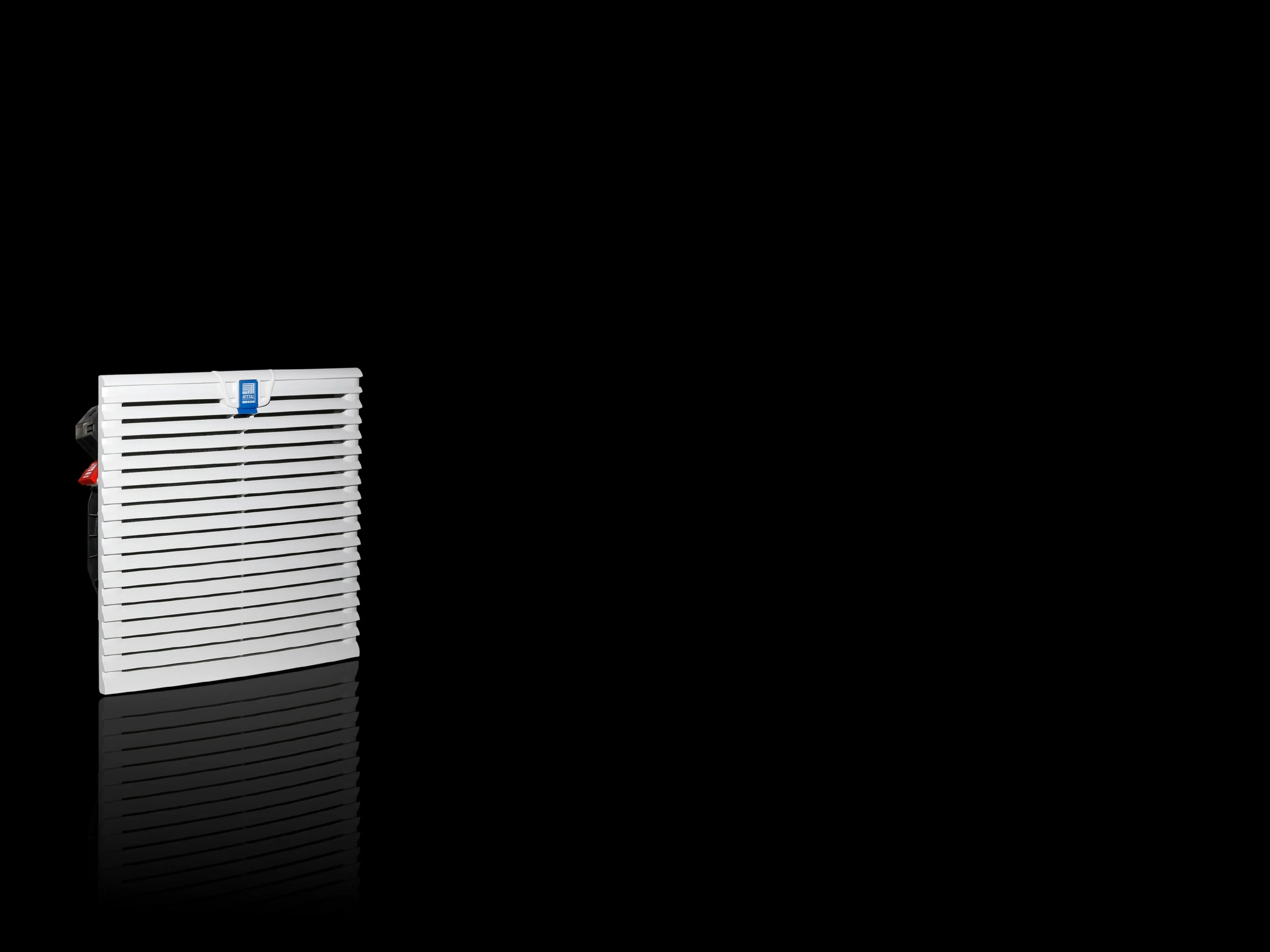

3243110 Rittal: SK Fan-and-filter unit TopTherm, 540/590 m³/h, 115 V, 1~, 50/60 Hz, WHD: 323 x 323 x 25 mm
Article number
SK 3243.110
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Diagonal, 1~ capacitor motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 540 m³/h | At 60 Hz: 590 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 625 m³/h | At 60 Hz: 716 m³/h
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3243200: 405/460 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 75 W | At 60 Hz: 90 W
Rated current max.
At 50 Hz: 0.78 A | At 60 Hz: 0.8 A
Dimensions
Width: 323 mm | Height: 323 mm
Installation depth
118.5 mm
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Note
To increase the air throughput, a pleated filter may optionally be used (see characteristic curve). Suitable for use with fan-and-filter units, roof-mounted fans and outlet filters.
Service life of fans (L10, 40 °C)
At 50 Hz: 61,000 h | At 60 Hz: 59,000 h
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 59 dB(A) | At 60 Hz: 61 dB(A)
Weight/pack
3.58 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177652125
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Fan-and-filter unit TopTherm, 540/590 m³/h, 115 V, 1~, 50/60 Hz, WHD: 323 x 323 x 25 mm
