3243208
Part Number: 3243208
Manufacturer
Rittal
Part number
3243208
Category
Alt Part Number
SK 3243.208
Product Information
Extended Description

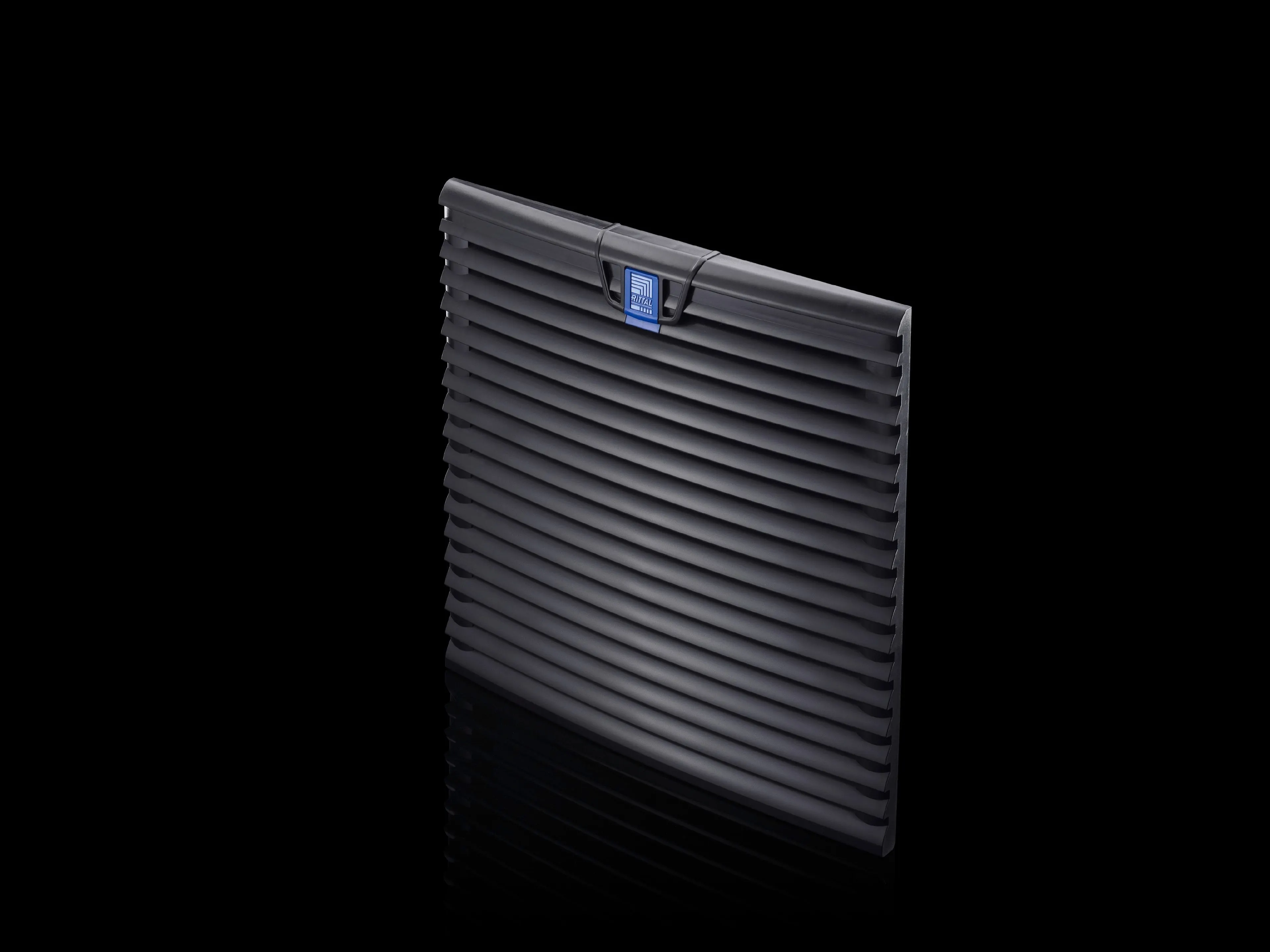

3243208 Rittal: SK outlet filter, standard, WHD: 323 x 323 x 25 mm
Article number
SK 3243.208
Product description
For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.
Material
ABS
Colour
RAL 9005
Supply includes
Outlet filter | Chopped-fibre filter mat
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
To fit Model No.
SK 3243.1xx/3243.5xx/3244.1xx/3244.5xx/3245.5xx
Dimensions
Width: 323 mm | Height: 323 mm | Depth: 25 mm
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Weight/pack
0.84 kg
Packs of
1 pc(s).
Customs tariff number
39269097
EAN
4028177663879
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK outlet filter, standard, WHD: 323 x 323 x 25 mm
