3243800
Part Number: 3243800
Product Information
Extended Description

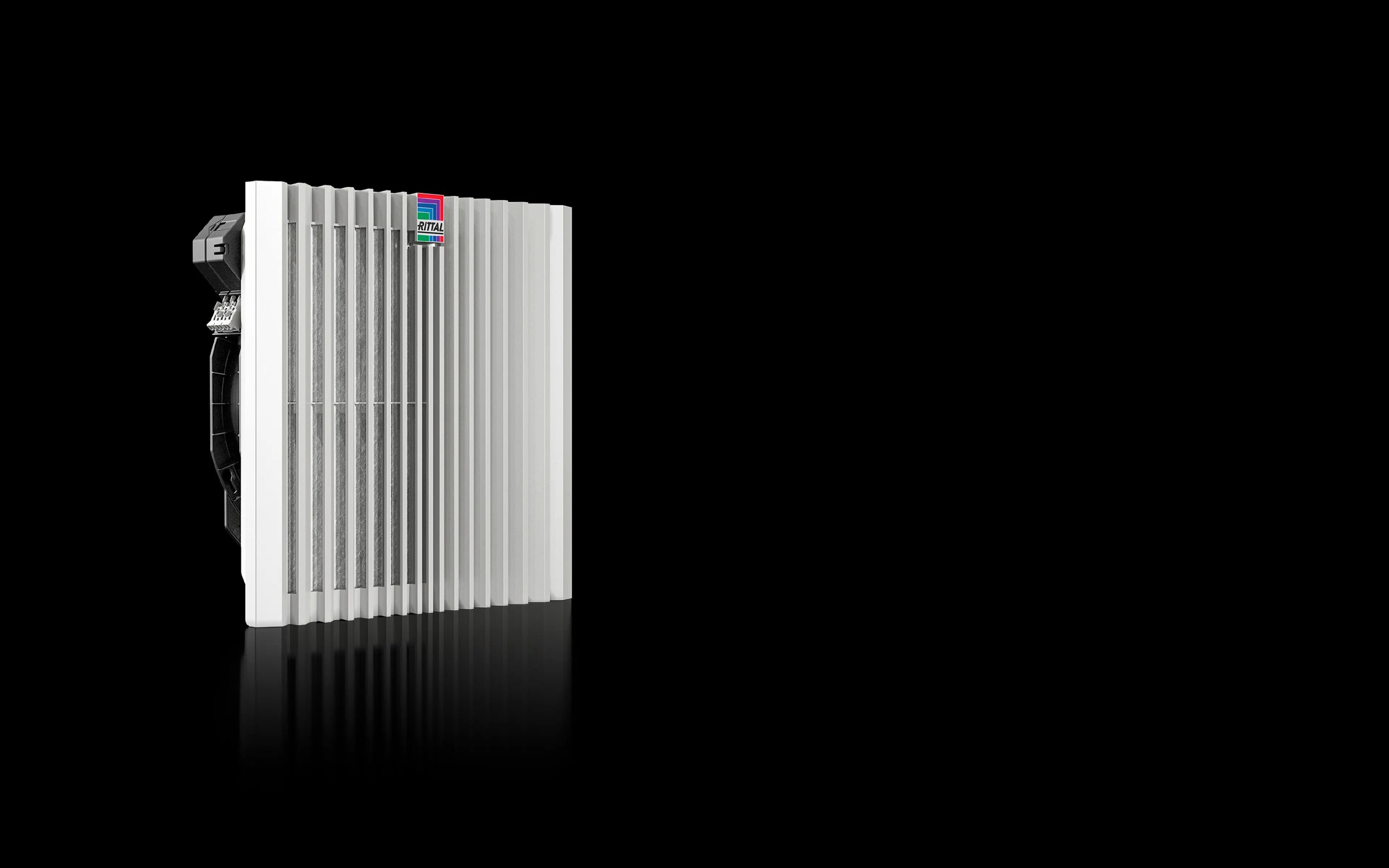

3243800 Rittal: SK Blue e+ fan-and-filter unit, EMC, 540/590 m³/h, 230 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 144.5 mm, RAL 7035
Article number
SK 3243.800
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Benefits
Easy filter changes, thanks to a new opening mechanism on the louvred grille
Colour
RAL 7035
Supply includes
Complete unit ready to install, including EMC filter mat
Fan
Diagonal, 1~ capacitor motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 540 m³/h | At 60 Hz: 590 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 444 m³/h | At 60 Hz: 498 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 77.7 W | At 60 Hz: 106.4 W
Rated current max.
At 50 Hz: 0.39 A | At 60 Hz: 0.47 A
Dimensions
Width: 323 mm | Height: 323 mm | Depth: 144.5 mm
Installation depth
124 mm
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter
Protection category NEMA
Type 12 with chopped-fibre filter
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 62 dB(A) | At 60 Hz: 65 dB(A)
Weight/pack
3.12 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177997943
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EMC, 540/590 m³/h, 230 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 144.5 mm, RAL 7035
