Part Number: 3244108
Product Information
Extended Description

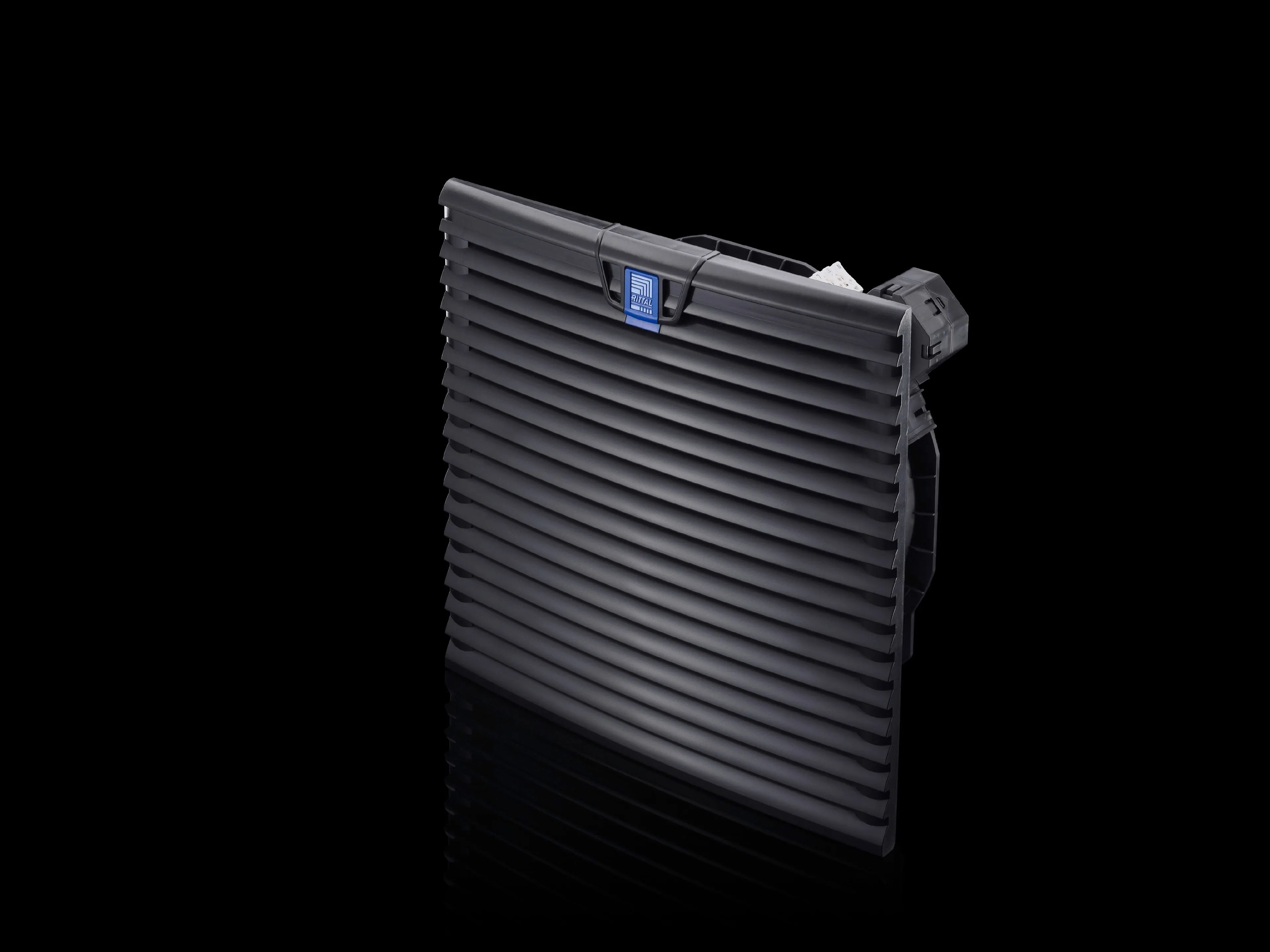

3244108 Rittal: SK fan-and-filter fan TopTherm, 700/770 m³/h, 230 V, 1 ~, 50/60 Hz, WHD: 323 x 323 x 25 mm
Article number
SK 3244.108
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Colour
RAL 9005
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Diagonal, 1~ capacitor motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 700 m³/h | At 60 Hz: 770 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 855 m³/h | At 60 Hz: 905 m³/h
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3243208: 485/520 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 95 W | At 60 Hz: 135 W
Rated current max.
At 50 Hz: 0.43 A | At 60 Hz: 0.6 A
Dimensions
Width: 323 mm | Height: 323 mm
Installation depth
130.5 mm
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Note
To increase the air throughput, a pleated filter may optionally be used (see characteristic curve). Suitable for use with fan-and-filter units, roof-mounted fans and outlet filters.
Service life of fans (L10, 40 °C)
At 50 Hz: 66,000 h | At 60 Hz: 64,000 h
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 65 dB(A) | At 60 Hz: 66 dB(A)
Weight/pack
4.3 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177663886
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK fan-and-filter fan TopTherm, 700/770 m³/h, 230 V, 1 ~, 50/60 Hz, WHD: 323 x 323 x 25 mm
