3244718
Part Number: 3244718
Product Information
Extended Description

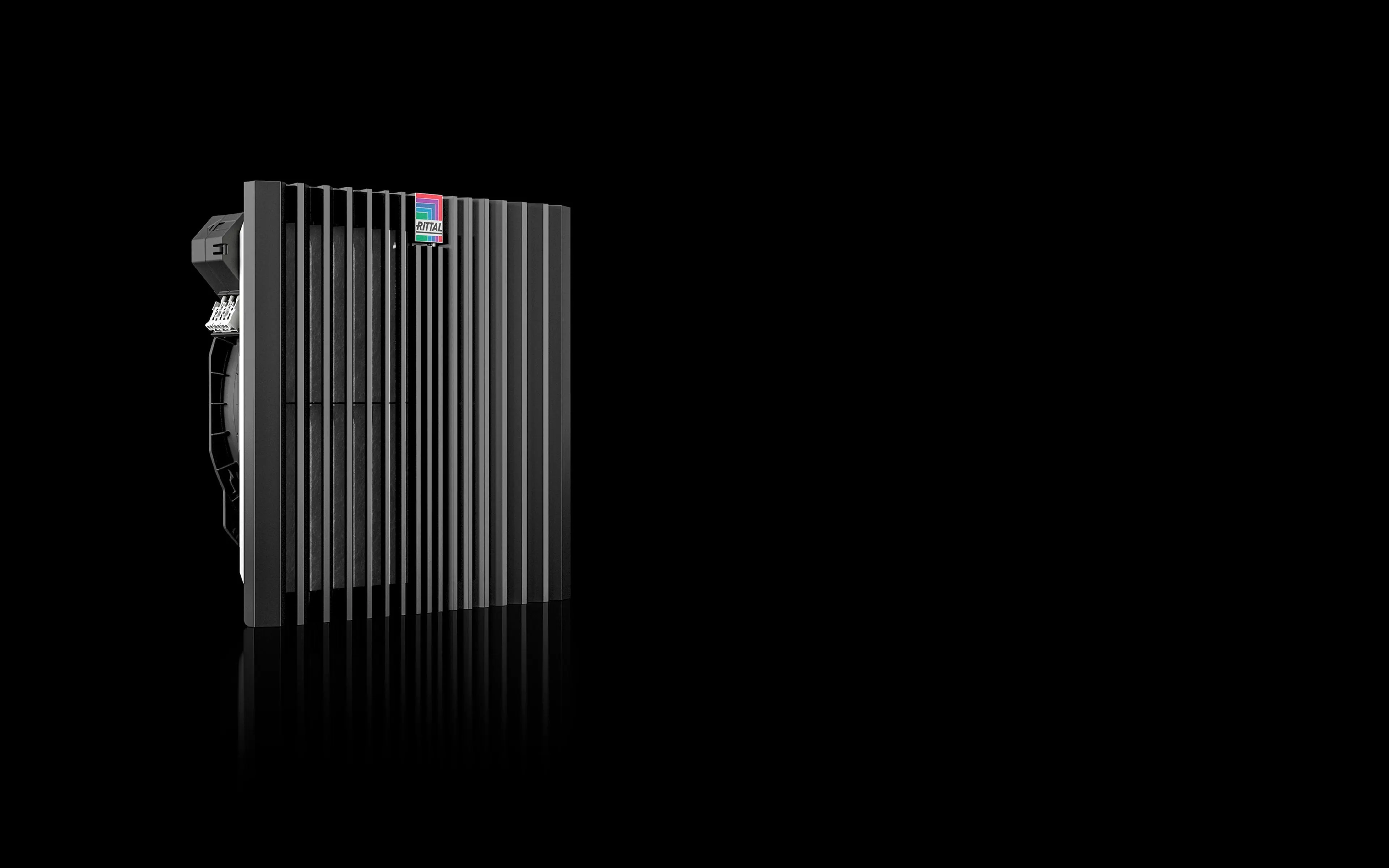

3244718 Rittal: SK Blue e+ fan-and-filter unit, 867/910 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 323 x 323 x 156 mm, RAL 9005
Article number
SK 3244.718
Design
wall-mounted
Product description
Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 9005
Supply includes
Complete unit ready to install, including pleated filter
Fan
Diagonal, 1~ capacitor motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 700 m³/h | At 60 Hz: 770 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 867 m³/h | At 60 Hz: 910 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 537 m³/h | At 60 Hz: 587 m³/h
Air throughput with matching outlet filter including pleated filter
At 50 Hz: 720 m³/h | At 60 Hz: 745 m³/h
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 120.7 W | At 60 Hz: 166.1 W
Rated current max.
At 50 Hz: 1.06 A | At 60 Hz: 1.47 A
Dimensions
Width: 323 mm | Height: 323 mm | Depth: 156 mm
Installation depth
136 mm
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
IP protection category to IEC 60 529
IP54 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 12 with chopped-fibre filter/pleated filter
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Note
With the fan-and-filter unit 3237.XXX, electrical connection is made via two single wires (length approx. 300 mm) on the unit, for all other fan-and-filter units, a screwless spring terminal is used
Operating temperature range
-30 °C...55 °C
Storage temperature range
-30 °C...70 °C
Noise level
At 50 Hz: 64 dB(A) | At 60 Hz: 66 dB(A)
Weight/pack
3.84 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177997882
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, 867/910 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 323 x 323 x 156 mm, RAL 9005
