3245600
Part Number: 3245600
Product Information
Extended Description

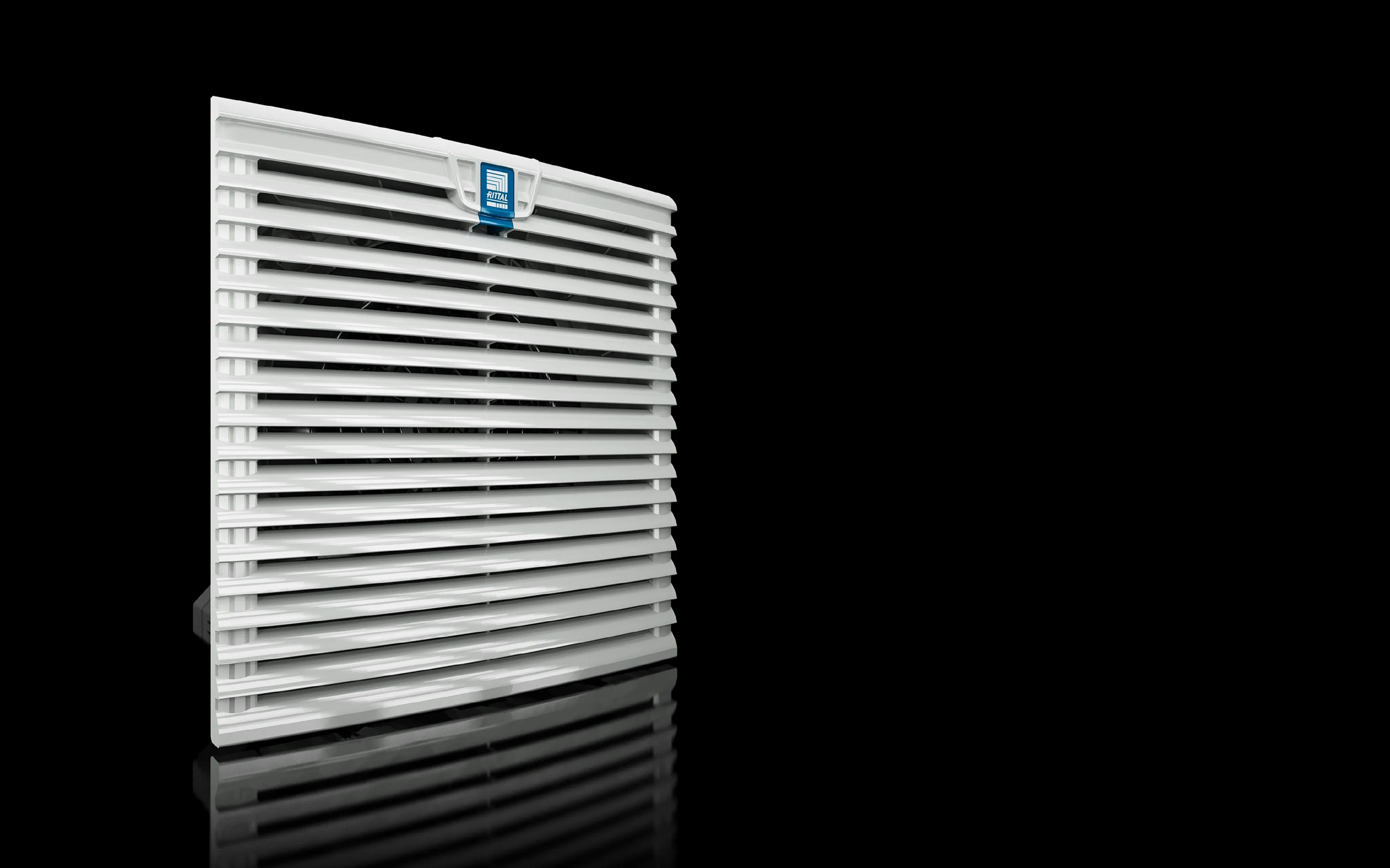

3245600 Rittal: SK Fan-and-filter unit TopTherm, 890/890 m³/h, 200-240 V, 1~, 50/60 Hz, WHD: 323 x 323 x 25 mm, EMC
Article number
SK 3245.600
Design
wall-mounted | EMC
Product description
EMC fan-and-filter units offer a high shielding/attenuation effect and meet requirement category 2 to EN 61587-3.
Colour
RAL 7035
Supply includes
Complete unit ready to install, including chopped-fibre filter mat
Fan
Diagonal, EC motor
Air throughput (unimpeded air flow)
At 50 Hz: 890 m³/h | At 60 Hz: 890 m³/h
Air throughput with outlet filter including chopped-fibre filter mat (quantity x order number)
1 x 3243060: 630/630 m³/h
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 1.33 A | At 60 Hz: 1.33 A
Power consumption Pel
At 50 Hz: 165 W | At 60 Hz: 165 W
Dimensions
Width: 323 mm | Height: 323 mm
Installation dimensions
Build depth: 25 mm | Installation depth: 130.5 mm
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
Note
To improve energy efficiency and extend the service life of the devices, we recommend the use of thermostats or temperature displays
IP protection category to IEC 60 529
IP51 with chopped-fibre filter
Protection category NEMA
Type 1
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Service life
59,000 h
Operating temperature range
-25 °C...55 °C
Storage temperature range
-25 °C...70 °C
Noise level
At 50 Hz: 72 dB(A)
Packs of
1 pc(s).
Weight/pack
3.5 kg
Customs tariff number
84145915
EAN
4028177652491
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Fan-and-filter unit TopTherm, 890/890 m³/h, 200-240 V, 1~, 50/60 Hz, WHD: 323 x 323 x 25 mm, EMC
