3245908

Part Number: 3245908
3245908
Manufacturer
Rittal
Part number
3245908
Category
Alt Part Number
SK 3245.908

Product Information

Extended Description

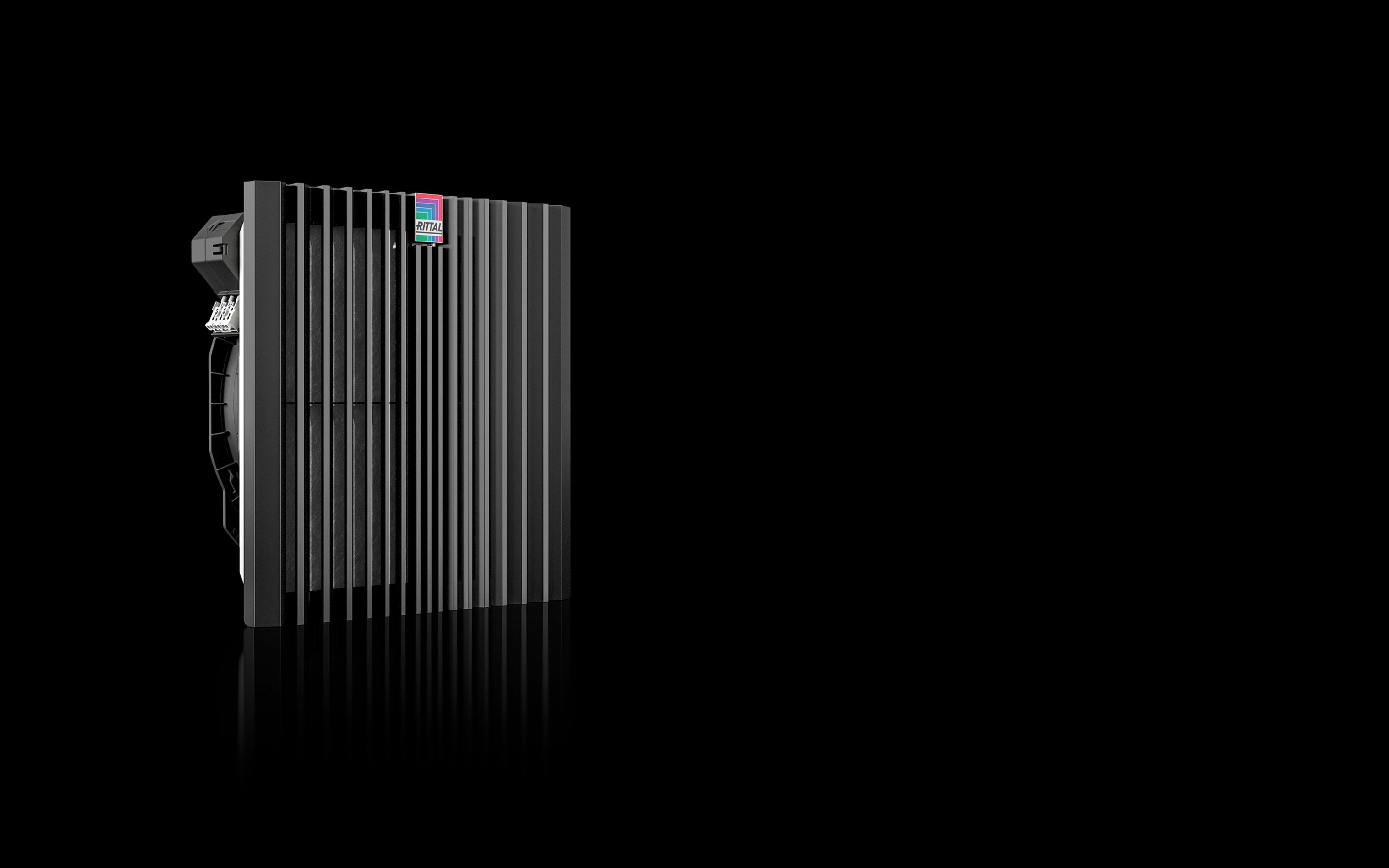

3245908 Rittal: SK Blue e+ fan-and-filter unit, EC technology, 1161 m³/h, 200 V – 240 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 161 mm, RAL 9005
Article number
SK 3245.908
Design
wall-mounted | EC
Product description
Blue e+ fan-and-filter units achieve maximum air throughput because they use pleated filters as standard. Wide-range input (100-240 V) enables worldwide use. Activation and monitoring via a Modbus interface supports exclusive features (automatic filter cleaning, filter maintenance display, emergency cooling function)
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 9005
Supply includes
Complete unit ready to install, including pleated filter
Fan
Diagonal, EC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz: 931 m³/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz: 1,161 m³/h | At 60 Hz: 1,161 m³/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz: 728 m³/h
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 173.5 W
Rated current max.
At 50 Hz: 1.38 A
Dimensions
Width: 323 mm | Height: 323 mm | Depth: 161 mm
Installation depth
141 mm
Mounting cut-out
Cut-out width: 292 mm | Cut-out height: 292 mm
IP protection category to IEC 60 529
IP51 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 1
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Operating temperature range
-25 °C...55 °C
Storage temperature range
-25 °C...70 °C
Noise level
At 50 Hz: 72 dB(A)
Interfaces
0 - 10 V/PWM input
Weight/pack
3.1 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177997806
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EC technology, 1161 m³/h, 200 V – 240 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 161 mm, RAL 9005
