3245910
Part Number: 3245910
Product Information
Extended Description

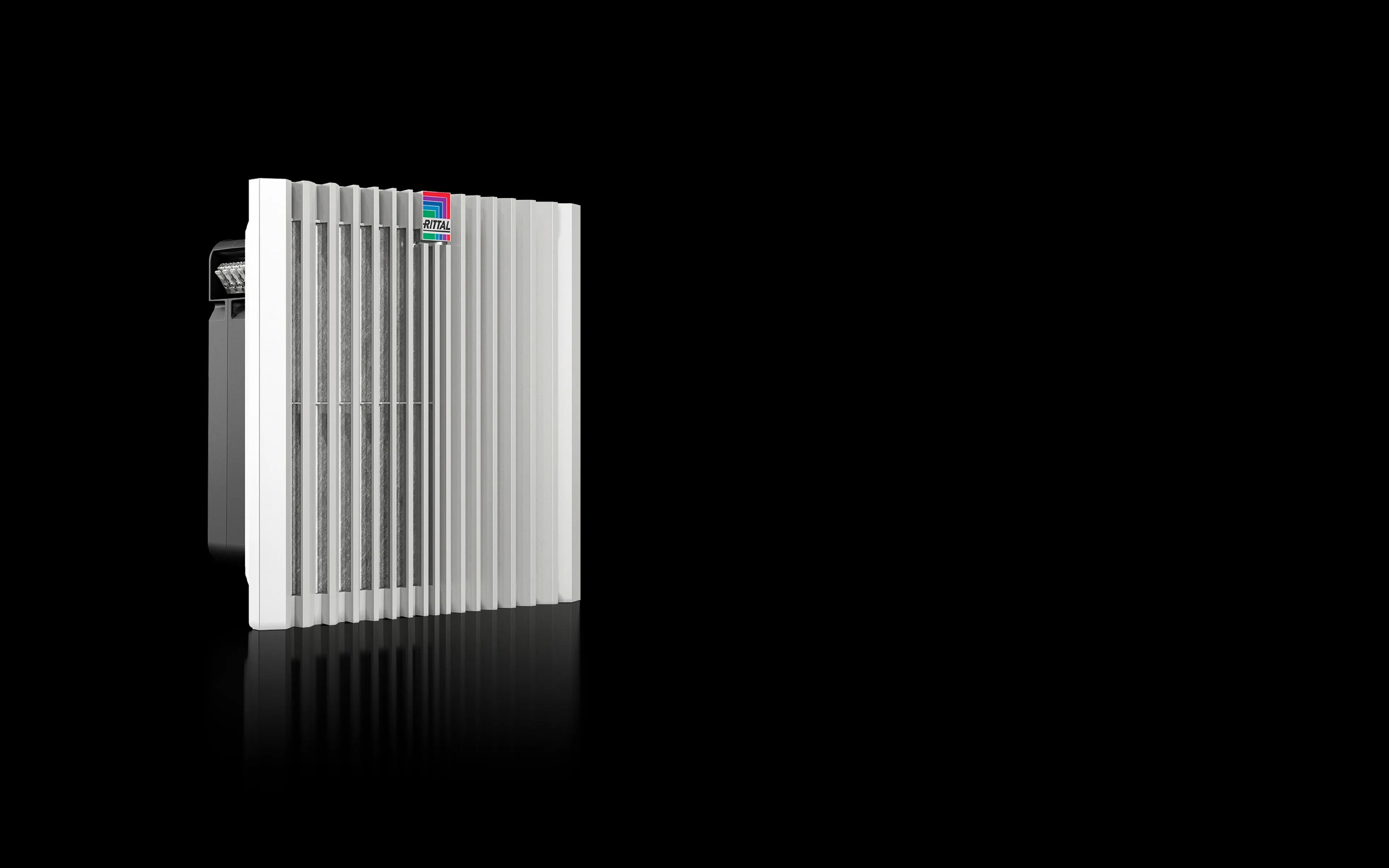

3245910 Rittal: SK Blue e+ fan-and-filter unit, EC technology, 1161 m³/h, 100 V – 130 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 156.5 mm, RAL 7035
Article number
SK 3245.910
Design
wall-mounted | EC
Benefits
Maximum air throughput via pleated filter included in the delivered state
Colour
RAL 7035
Supply includes
Complete unit ready to install, including pleated filter
Fan
Diagonal, EC motor
Air throughput, unimpeded airflow (with chopped-fibre filter)
At 50 Hz:Â 931 mÂł/h
Air throughput, unimpeded airflow (with pleated filter)
At 50 Hz:Â 1,161 mÂł/h | At 60 Hz:Â 1,161 mÂł/h
Air throughput with matching outlet filter including chopped-fibre filter
At 50 Hz:Â 728 mÂł/h
Rated operating voltage
100Â V - 130Â V, 1~, 50Â Hz/60Â Hz
Power consumption Pel
At 50 Hz:Â 174.6 W
Rated current max.
At 50 Hz:Â 2.52 A
Dimensions
Width:Â 323 mm | Height:Â 323 mm | Depth:Â 156 mm
Installation depth
136 mm
Mounting cut-out
Cut-out width:Â 292 mm | Cut-out height:Â 292 mm
IP protection category to IEC 60 529
IP51 with chopped-fibre filter/pleated filter
Protection category NEMA
Type 1
Pre-fuse
Miniature circuit-breaker/fuse:Â 6Â A
Operating temperature range
-25 °C...55 °C
Storage temperature range
-25 °C...70 °C
Noise level
At 50 Hz:Â 72 dB(A)
Interfaces
0 - 10 V/PWM input
Weight/pack
3.2 kg
Packs of
1 pc(s).
Customs tariff number
84145915
EAN
4028177997790
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK Blue e+ fan-and-filter unit, EC technology, 1161 m³/h, 100 V – 130 V, 1~, 50 Hz/60 Hz, WxHxD 323 x 323 x 156.5 mm, RAL 7035
