3248000
Part Number: 3248000
Product Information
Extended Description

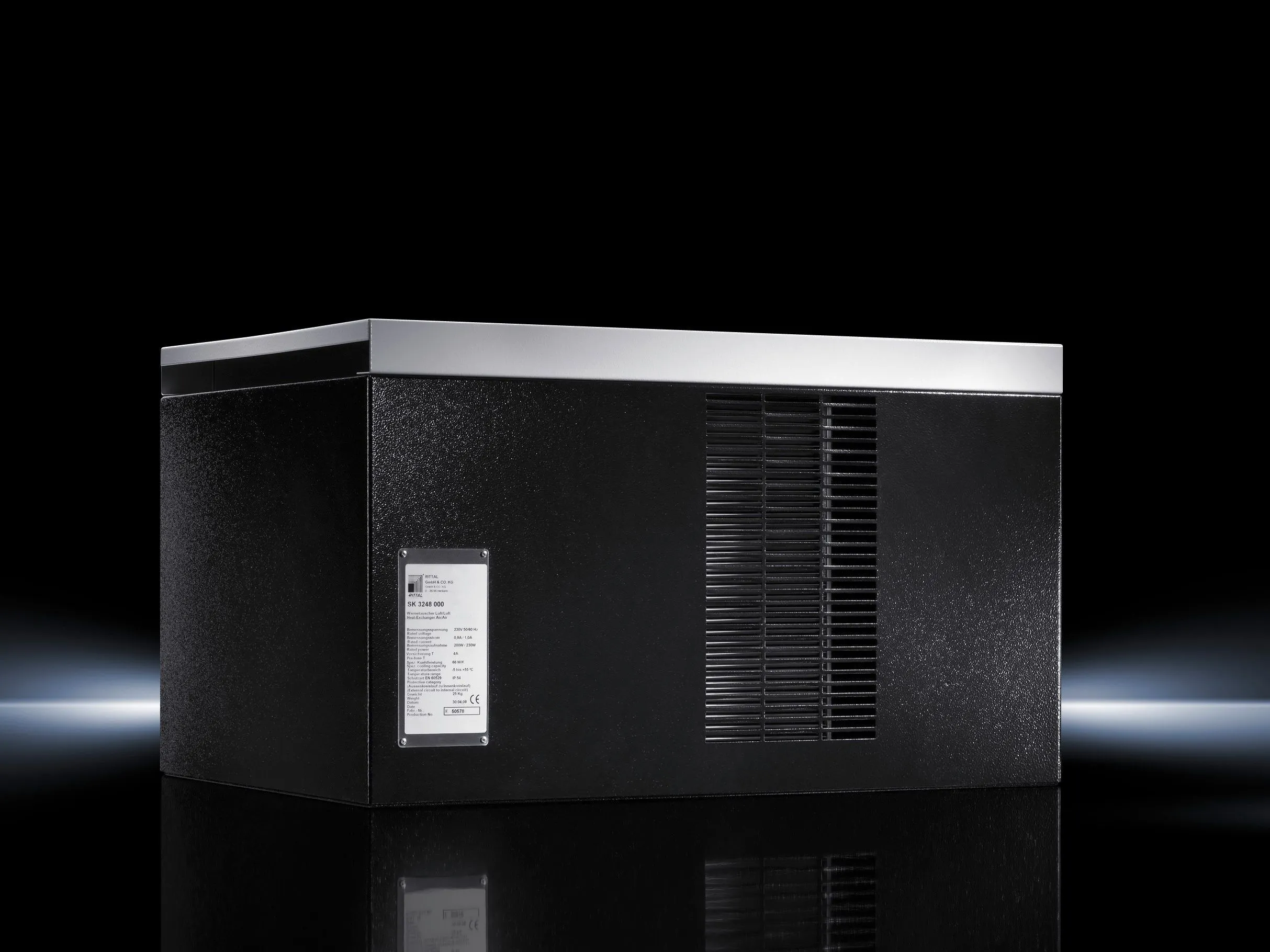

3248000 Rittal: SK Direct Air Cooling system (DAC), roof mounting, 48 V DC, WHD: 875 x 125 x 313 mm
Article number
SK 3248.000
Design
roof-mounted
Product description
Air/air heat exchangers are particularly well-suited to aggressive ambient conditions, because the internal and external air circuits are completely separate from one another.
Colour
Cover: RAL 7035 | Enclosure: RAL 7016
Supply includes
Complete unit ready for connection | The fans are connected via two 3-wire connection cables, with wire end ferrules | Drilling template | Assembly parts
Specific thermal output
66 W/K
Air throughput (unimpeded air flow)
External circuit with 50 Hz: 965 m³/h | Internal circuit at 50 Hz: 965 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Rated current max.
per fan at 50 Hz: 0.32 A | per fan at 60 Hz: 0.4 A
Type of electrical connection
Connection cable
Dimensions
Width: 595 mm | Height: 362 mm | Depth: 440 mm
Note
For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat, the digital enclosure internal temperature display and thermostat or the speed control.
No. of fans
2
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Operating temperature range
-5 °C...55 °C
IP protection category to IEC 60 529
Internal circuit IP 54
Packs of
1 pc(s).
Weight/pack
25 kg
Customs tariff number
84158300
EAN
4028177039247
ETIM 9
EC002514
ETIM 8
EC002514
ECLASS 8.0
27180711
Product description
SK Direct Air Cooling system (DAC), roof mounting, 48 V DC, WHD: 875 x 125 x 313 mm
