3286850
Part Number: 3286850
Manufacturer
Rittal
Part number
3286850
Category
Alt Part Number
SK 3286.850
Product Information
Extended Description

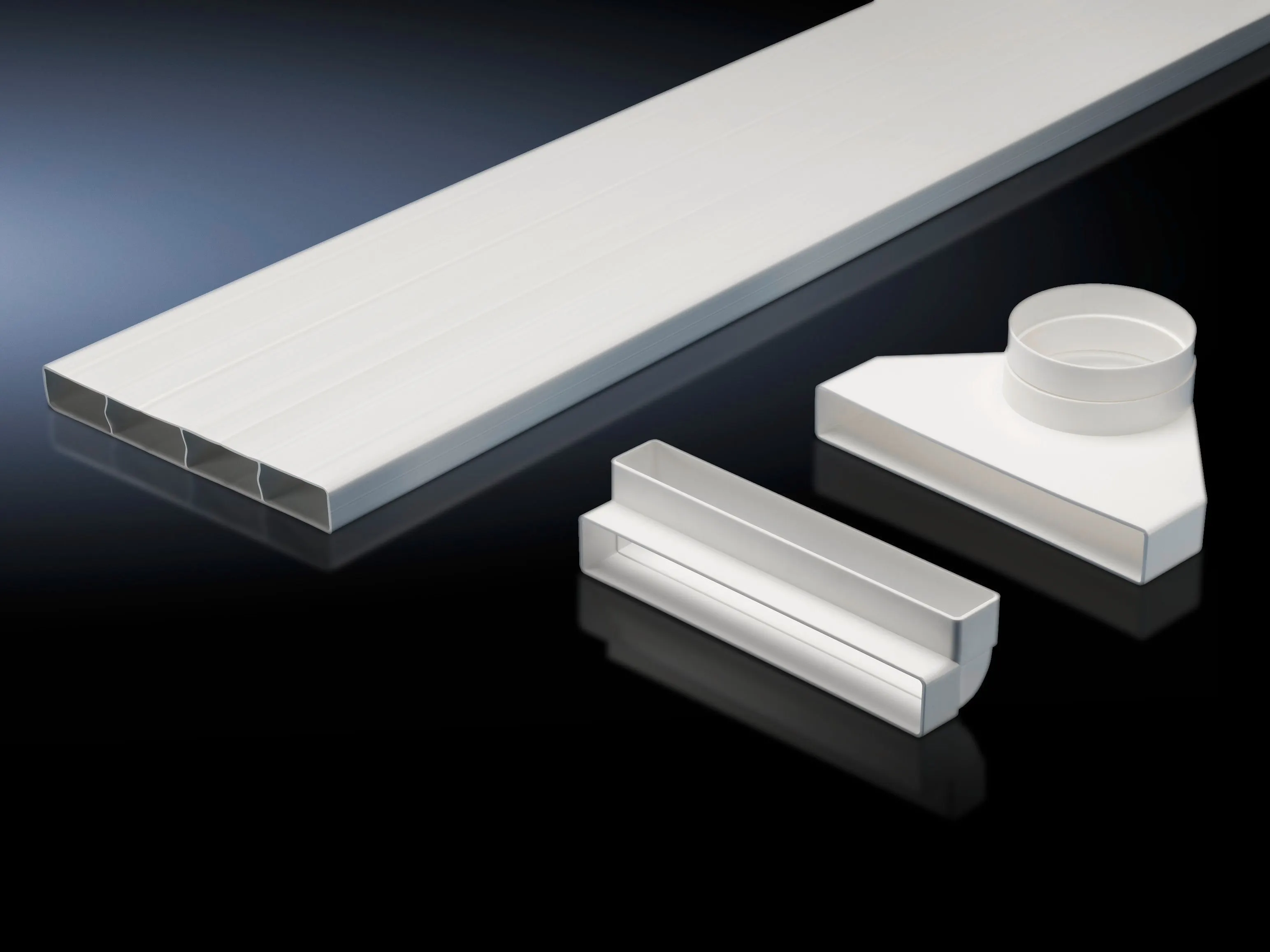

3286850 Rittal: SK Air duct system Flat, for SK 3209/3210/3273/3383/3384/3385/3359/3382, WHD: 229 x 1500 x 29 mm
Article number
SK 3286.850
Product description
Cold air may be routed directly to specific areas of the enclosure using the air duct system. The risk of air short circuits due to self-ventilated installed devices is therefore eliminated. The dimensions of the shallow duct are W x H x D 229 x 1500 x 29 mm, and can be shortened to the required length.
Applications
Suitable for enclosures with widths of 800 mm or more and depths of 600 mm or more.
Material
Flame-resistant plastic to DIN 4102/B1
Colour
RAL 7035
Supply includes
Shallow duct | Adaptor | Compensating piece | Deflector, 90°
Assembly instruction
For devices 3359.XXX and 3382.XXX, the air duct adaptor 3286.840 is required for mounting.
Note
Do not direct cold air straight at active components.
To fit Model No.
3209....
Packs of
1 pc(s).
Weight/pack
3.5 kg
Customs tariff number
39269097
EAN
4028177557055
ETIM 9
EC011217
ETIM 8
EC011217
ECLASS 8.0
22410601
Product description
SK Air duct system Flat, for SK 3209/3210/3273/3383/3384/3385/3359/3382, WHD: 229 x 1500 x 29 mm
