3286870
Part Number: 3286870
Manufacturer
Rittal
Part number
3286870
Category
Alt Part Number
SK 3286.870
Product Information
Extended Description

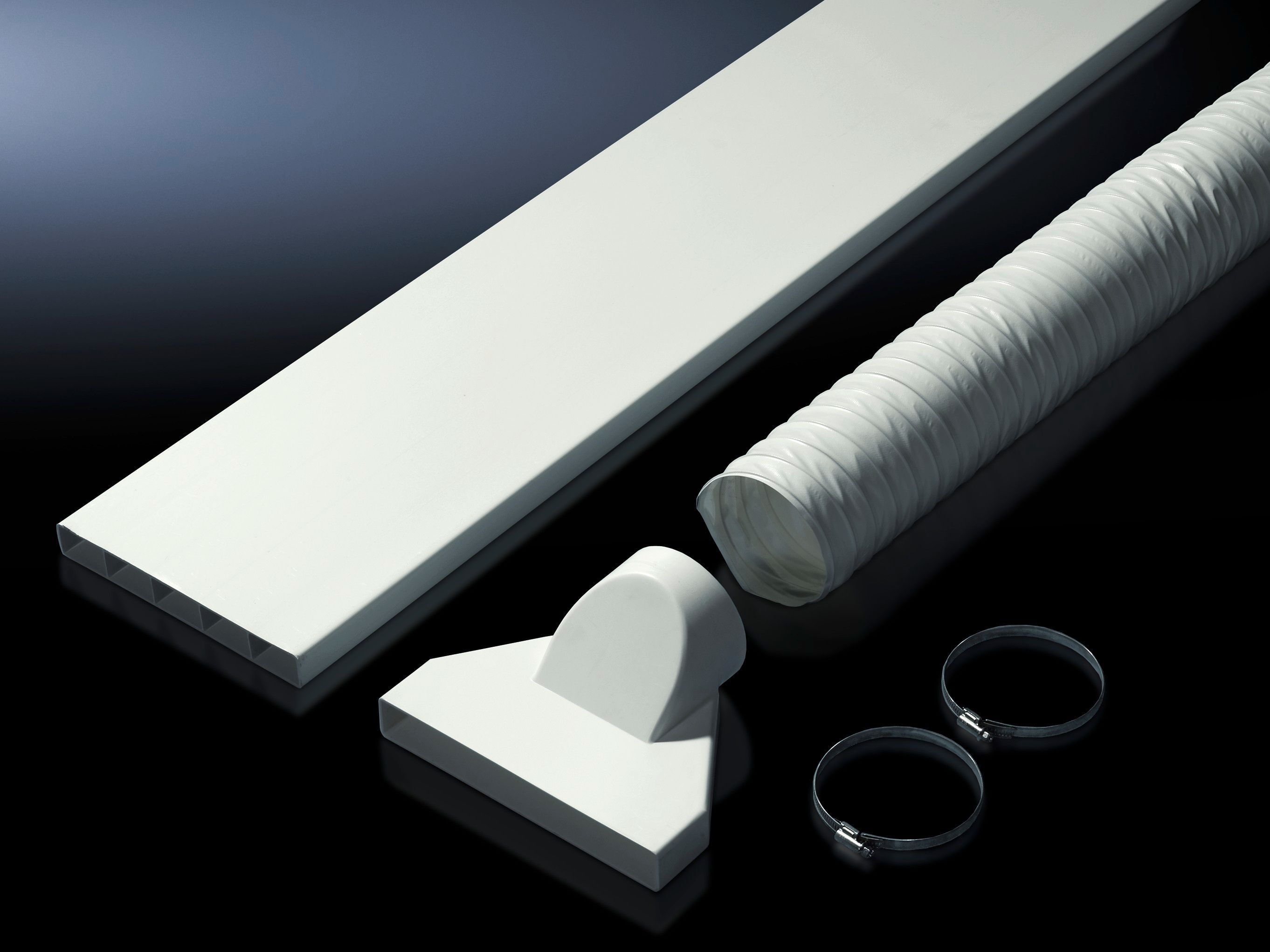

3286870 Rittal: SK Air duct system, for SK 3386/3387, WHD: 229 x 1500 x 29 mm
Article number
SK 3286.870
Product description
Cold air may be routed directly to specific areas of the enclosure using the air duct system. The risk of air short circuits due to self-ventilated installed devices is therefore eliminated. The dimensions of the shallow duct are W x H x D 229 x 1500 x 29 mm, and can be shortened to the required length.
Material
Flame-resistant plastic to DIN 4102/B1
Colour
RAL 7035
Supply includes
Shallow duct | Compensating hose (length approx. 1 m)
Note
Do not direct cold air straight at active components.
To fit Model No.
3209....
Packs of
1 pc(s).
Weight/pack
4.15 kg
Customs tariff number
39269097
EAN
4028177325449
ETIM 9
EC011444
ETIM 8
EC011444
ECLASS 8.0
22410601
Product description
SK Air duct system, for SK 3386/3387, WHD: 229 x 1500 x 29 mm
