3301800
Part Number: 3301800
Product Information
Extended Description

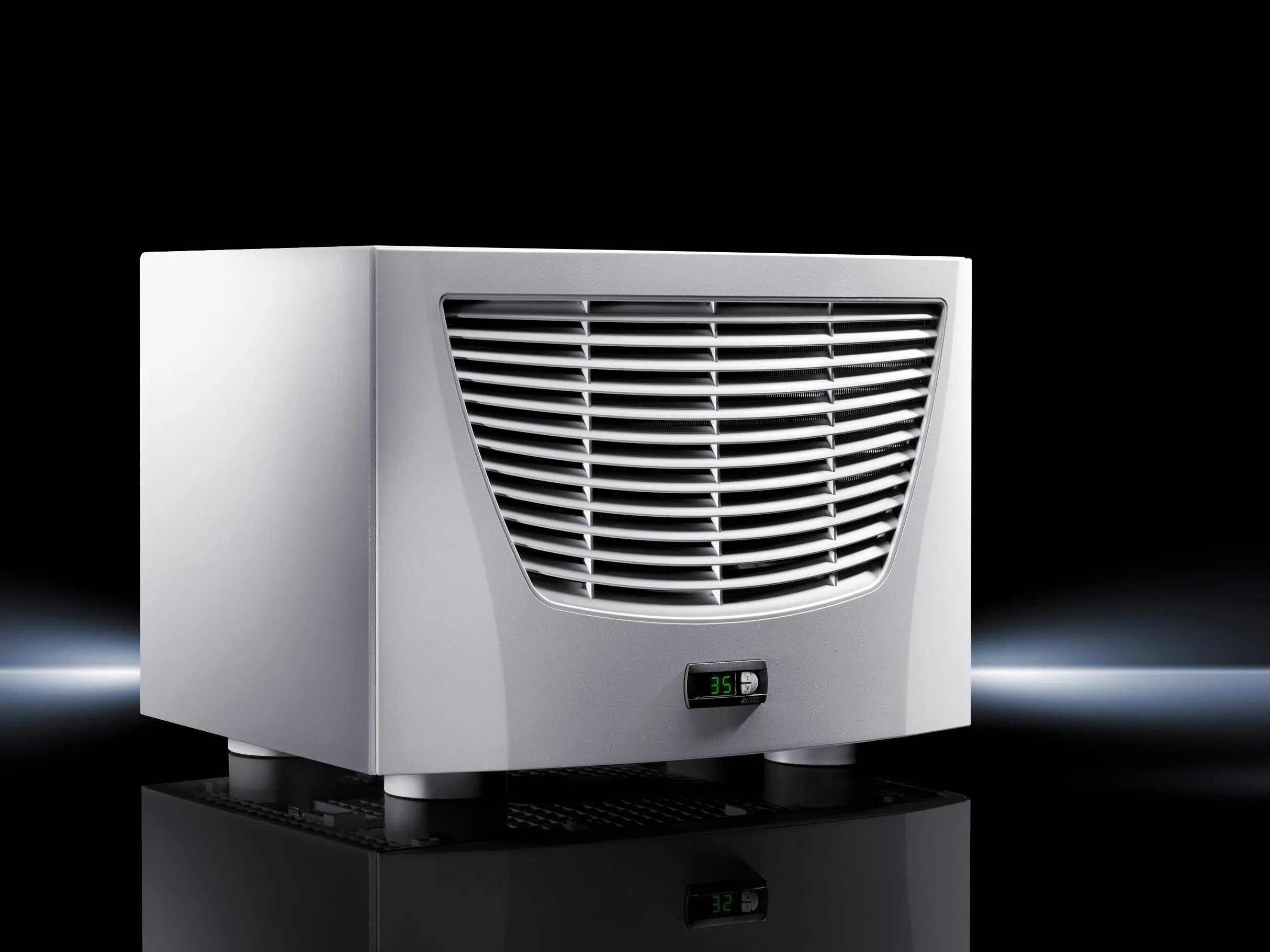

3301800 Rittal: SK Roof-mounted cooling unit, For cooling IT equipment, Control of the server air infeed temperature, WHD: 597x417x895 mm, 230 V, 1~, 50 Hz
Article number
SK 3301.800
Benefits
Even air distribution in front of the 482.6 mm (19") level
Applications
Cooling of IT equipment in IT enclosures sited as stand-alone units in secondary rooms
Function principle
The device supports front-to-back air routing typical of IT applications, and regulates the server inlet temperature to the set value
Material
Sheet steel
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Integral electric condensate evaporation | Fully wired ready for connection | Drilling template | Air baffle plate | Assembly parts
Total cooling output to DIN EN 14511
Total cooling output L35 L45: 3,200 W
Air throughput (unimpeded air flow)
External circuit: 2,000 m³/h | Internal circuit: 1,450 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.6
Rated operating voltage
230 V, 1~, 50 Hz
Rated current max.
At 50 Hz: 10.4 A
Type of electrical connection
Plug-in terminal strip
Dimensions
Width: 597 mm | Height: 417 mm | Depth: 895 mm
Start-up current max.
At 50 Hz: 36 A
Duty cycle
100 %
Temperature control
Control of the server inlet temperature
Monitoring
Monitoring of incoming air temperature
Permissible operating pressure (p. max.)
25 bar
Pre-fuse
Miniature circuit-breaker/fuse: 16 A
Setting range
20 °C...25 °C
Protection category to IEC 60 529
External circuit IP 20
Refrigerant/cooling medium
Refrigerant: R134a | Quantity: 1.2 kg
Packs of
1 pc(s).
Weight/pack
97 kg
Customs tariff number
84158200
EAN
4028177558298
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Roof-mounted cooling unit, For cooling IT equipment, Control of the server air infeed temperature, WHD: 597x417x895 mm, 230 V, 1~, 50 Hz
