3304510
Part Number: 3304510
Product Information
Extended Description

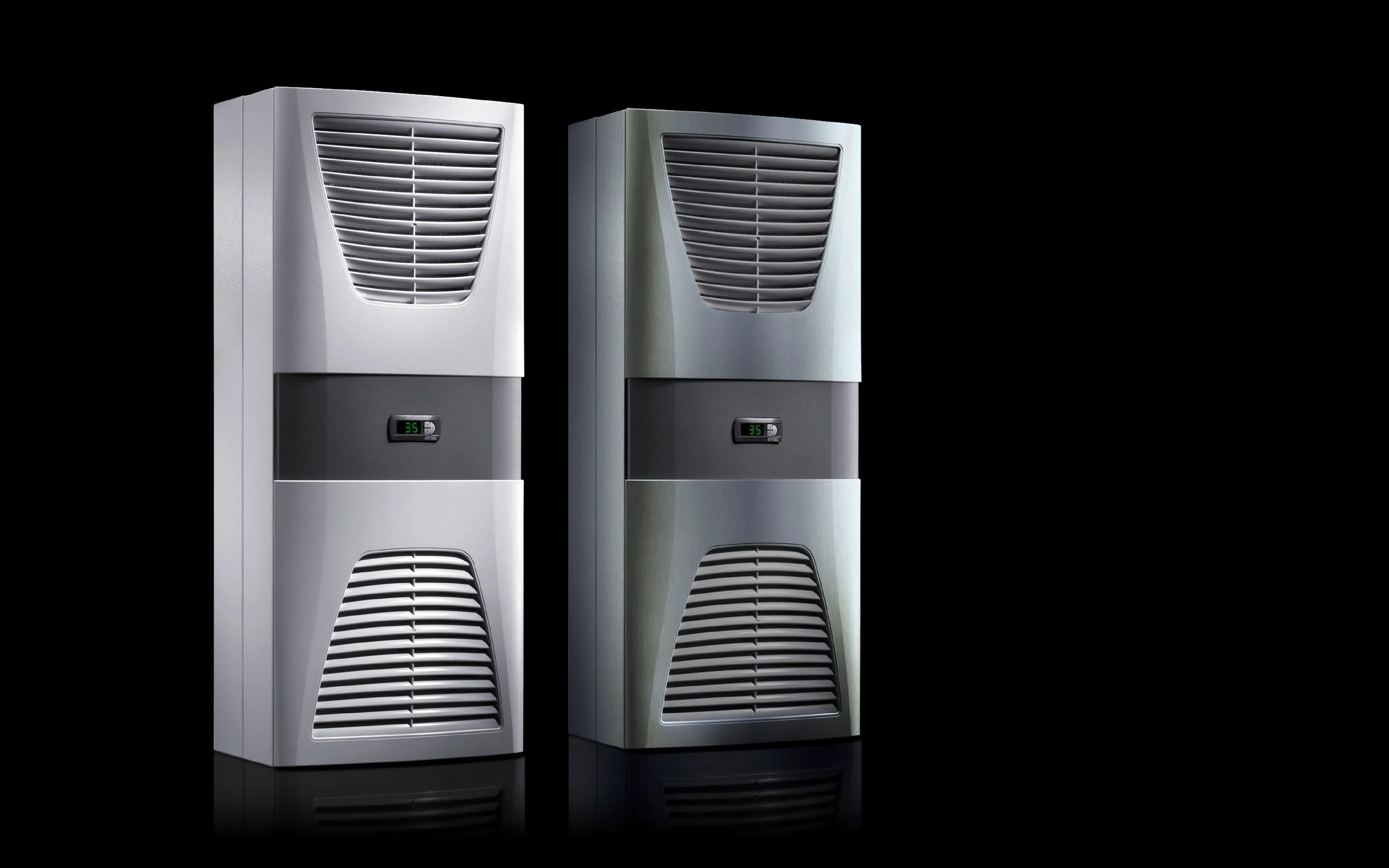

3304510 Rittal: SK cooling unit Blue e, wall-mounted, 1.1 kW, 115 V, 1~, 50/60 Hz, Sheet steel, WHD: 400 x 950 x 260 mm
Article number
SK 3304.510
Design
wall-mounted
Product description
Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W).
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Sheet steel
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts | Integral electric condensate evaporation
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 1.1 kW | Cooling output L35 L35/60 Hz: 1.25 kW | Cooling output L35 L50/50 Hz: 0.91 kW | Cooling output L35 L50/60 Hz: 0.9 kW
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 8 A | At 60 Hz: 8.8 A
Start-up current max.
At 50 Hz: 26 A | At 60 Hz: 28 A
Air throughput (unimpeded air flow)
External circuit: 805 m³/h | Internal circuit: 600 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.83 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.84
Design
wall-mounted
Dimensions
Width: 400 mm | Height: 950 mm | Depth: 260 mm
Protection category to IEC 60 529
External circuit IP 34
Protection category NEMA
UL Type 12
Refrigerant/cooling medium
Refrigerant: R134a | Quantity: 0.325 kg | Global Warming Potential (GWP): 1,430 | CO₂ equivalent (CO₂e): 0.46 t
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...55 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.64 kW | Power consumption L35 L35/60 Hz: 0.68 kW | Power consumption L35 L50/50 Hz: 0.71 kW | Power consumption L35 L50/60 Hz: 0.81 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Transformer circuit-breaker: 11...16 A
Packs of
1 pc(s).
Weight/pack
44 kg
Customs tariff number
84158200
EAN
4028177322929
ETIM 8
EC000855
ETIM 7.0
EC000855
ECLASS 8.0
27180704
Product description
SK cooling unit Blue e, wall-mounted, 1.1 kW, 115 V, 1~, 50/60 Hz, Sheet steel, WHD: 400 x 950 x 260 mm
