3304544
Part Number: 3304544
Product Information
Extended Description

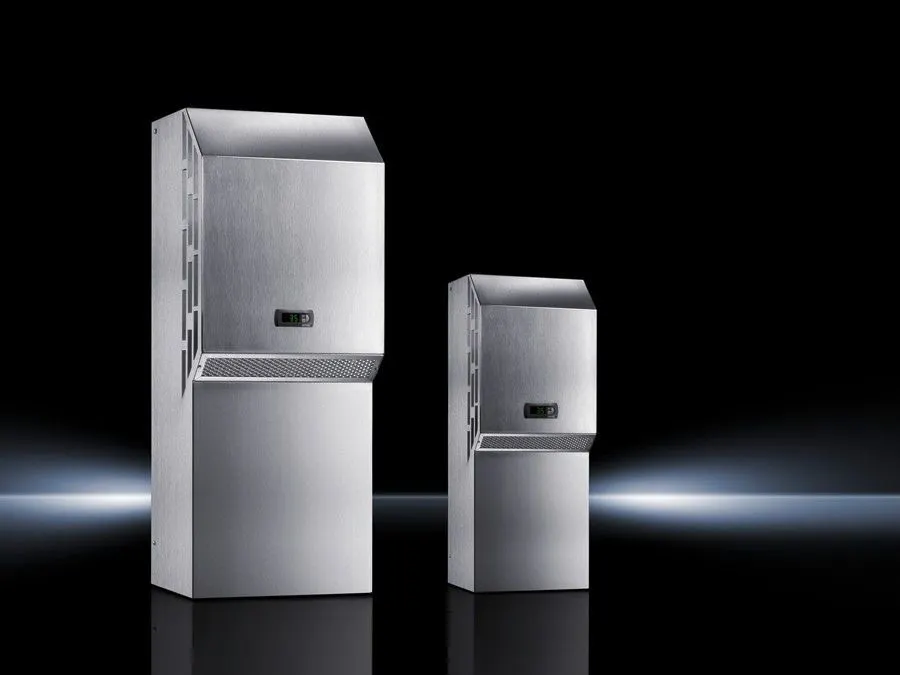

3304544 Rittal: SK cooling unit Blue e, wall-mounted, NEMA 4X, 1.1 kW, 400-460 V, 3~, 50/60 Hz, Stainless steel, WHD: 405 x 1020 x 358 mm
Article number
SK 3304.544
Design
wall-mounted
Product description
Energy-efficient Blue e wall-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard. Protection category NEMA 4X.
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Stainless steel 1.4404 (AISI 316L)
Supply includes
Condenser with hydrophobic RiNano coating | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts | Integral electric condensate evaporation
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 1.1 kW | Cooling output L35 L35/60 Hz: 1.25 kW | Cooling output L35 L50/50 Hz: 0.98 kW | Cooling output L35 L50/60 Hz: 0.9 kW
Rated operating voltage
400 V, 3~, 50 Hz
Rated current max.
At 50 Hz: 2.2 A | At 60 Hz: 2.1 A
Start-up current max.
At 50 Hz: 11.5 A | At 60 Hz: 12.7 A
Air throughput (unimpeded air flow)
External circuit: 950 m³/h | Internal circuit: 540 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.72 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.58
Design
wall-mounted
Dimensions
Width: 405 mm | Height: 1,020 mm | Depth: 358 mm
Protection category to IEC 60 529
External circuit IP 34
Protection category NEMA
NEMA 4X
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 0.325 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.21 t
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...50 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.64 kW | Power consumption L35 L35/60 Hz: 0.79 kW | Power consumption L35 L50/50 Hz: 0.73 kW | Power consumption L35 L50/60 Hz: 0.9 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Motor circuit-breaker: 6.3...10 A
Packs of
1 pc(s).
Weight/pack
50 kg
Customs tariff number
84158200
EAN
4028177384330
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK cooling unit Blue e, wall-mounted, NEMA 4X, 1.1 kW, 400-460 V, 3~, 50/60 Hz, Stainless steel, WHD: 405 x 1020 x 358 mm
