Part Number: 3305548
Product Information
Extended Description

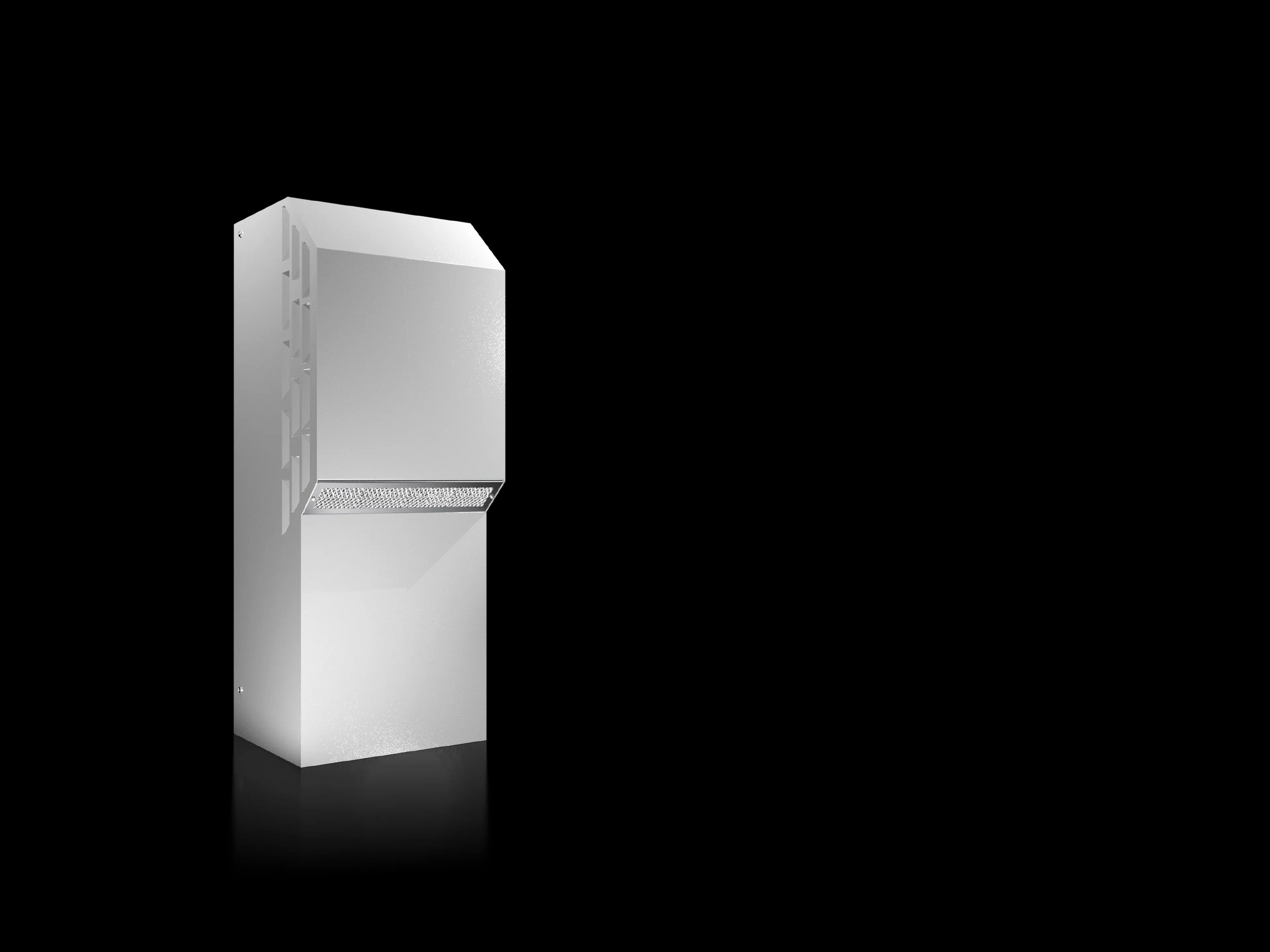

3305548 Rittal: SK Blue e cooling unit, wall-mounted, UL Type 3R/4, 1.60 kW, 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz, sheet steel, WHD: 405 x 1020 x 358 mm
Article number
SK 3305.548
Design
wall-mounted
Product description
Energy-efficient Blue e wall-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard. Protection category UL Type 3R/4, 12.
Benefits
Suitable for outdoor siting
Material
Sheet steel
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts | Integral electric condensate evaporation
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 1.6 kW | Cooling output L35 L35/60 Hz: 1.61 kW | Cooling output L35 L50/50 Hz: 1.1 kW | Cooling output L35 L50/60 Hz: 1.25 kW
Rated operating voltage
400 V, 3~, 50 Hz
Rated current max.
At 50 Hz: 2.5 A | At 60 Hz: 2.8 A
Start-up current max.
At 50 Hz: 12.2 A | At 60 Hz: 11.3 A
Air throughput (unimpeded air flow)
External circuit: 950 m³/h | Internal circuit: 540 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.64
Design
wall-mounted
Dimensions
Width: 405 mm | Height: 1,020 mm | Depth: 358 mm
Protection category to IEC 60 529
External circuit IP 34
Protection category NEMA
UL Type 3R
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 0.61 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.38 t
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
-20 °C...50 °C
Operating temperature
Compressor cooling mode from +10 °C ambient temperature. Only the internal fan is active in the temperature range -20 °C to +10 °C.
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...50 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.8 kW | Power consumption L35 L35/60 Hz: 0.98 kW | Power consumption L35 L50/50 Hz: 0.87 kW | Power consumption L35 L50/60 Hz: 1.15 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Motor circuit-breaker: 6.3...10 A
Packs of
1 pc(s).
Weight/pack
52 kg
Customs tariff number
84158200
EAN
4028177943742
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Blue e cooling unit, wall-mounted, UL Type 3R/4, 1.60 kW, 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz, sheet steel, WHD: 405 x 1020 x 358 mm
