3307740
Part Number: 3307740
Manufacturer
Rittal
Part number
3307740
Alt Part Number
SK 3307.740
Product Information
Extended Description

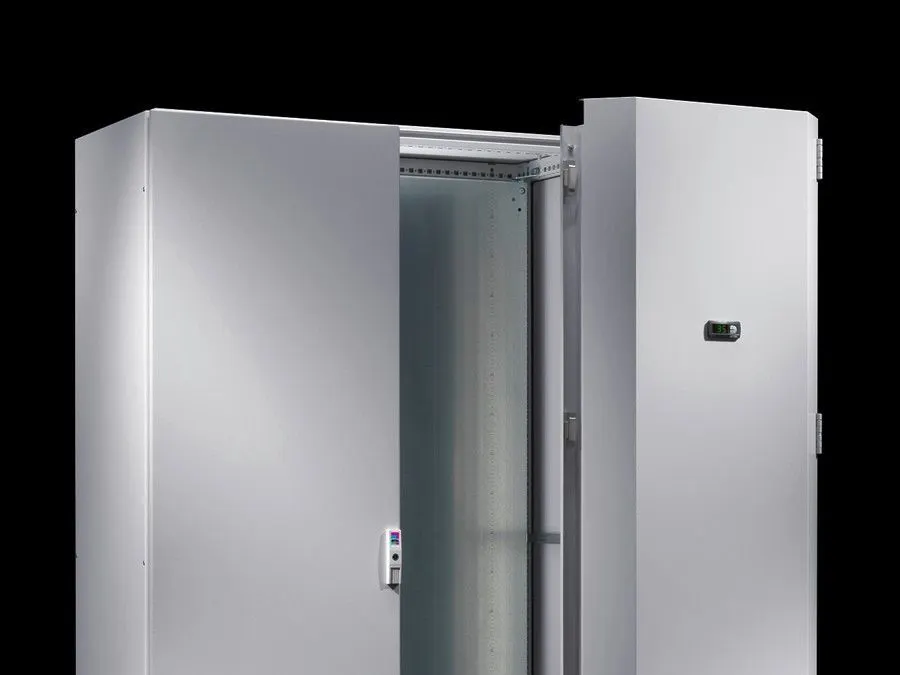

3307740 Rittal: SK modular climate control concept, Blue e cooling module, 1.60/1.65 kW, 400-460 V, 3~, 50/60 Hz
Article number
SK 3307.740
Product description
All cooling modules may be individually combined with any climate control door. The cooling modules are equipped with energy-efficient Blue e technology, with integral e-Comfort controller and electric condensate evaporation as standard.
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Sheet steel
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Cooling module prepared for installation in climate control door | Integral electric condensate evaporation | Fully wired ready for connection (plug-in terminal strip)
Rated current max.
At 50 Hz: 2.5 A | At 60 Hz: 2.7 A
Start-up current max.
At 50 Hz: 8.5 A | At 60 Hz: 9.2 A
Power consumption Pel 50/60 Hz L35 L35
0.79 kW/1 kW
Power consumption Pel 50/60 Hz L35 L50
0.9 kW/1.1 kW
Temperature control
e-Comfort controller (factory setting +35 °C)
At 60 Hz
2.7 A
Note
A base/plinth with a height of 100 or 200 mm is required for efficient operation
Air throughput (unimpeded air flow)
External circuit: 1,100 m³/h | Internal circuit: 600 m³/h
Refrigerant/cooling medium
Refrigerant: R134a | Quantity: 0.7 kg | Global Warming Potential (GWP): 1,430 | CO₂ equivalent (CO₂e): 1 t
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.9 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.55
Operating temperature range
10 °C...55 °C
Permissible operating pressure (p. max.)
28 bar
Setting range
20 °C...55 °C
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 1.5 kW | Cooling output L35 L35/60 Hz: 1.55 kW | Cooling output L35 L50/50 Hz: 0.93 kW | Cooling output L35 L50/60 Hz: 0.95 kW
Rated operating voltage
400 V, 3~, 50 Hz
Packs of
1 pc(s).
Weight/pack
68 kg
Note
Includes section door weight
Customs tariff number
84158200
EAN
4028177559462
ETIM 9
EC002510
ETIM 8
EC002510
ECLASS 8.0
27180702
Product description
SK modular climate control concept, Blue e cooling module, 1.60/1.65 kW, 400-460 V, 3~, 50/60 Hz
