3311370
Part Number: 3311370
Product Information
Extended Description

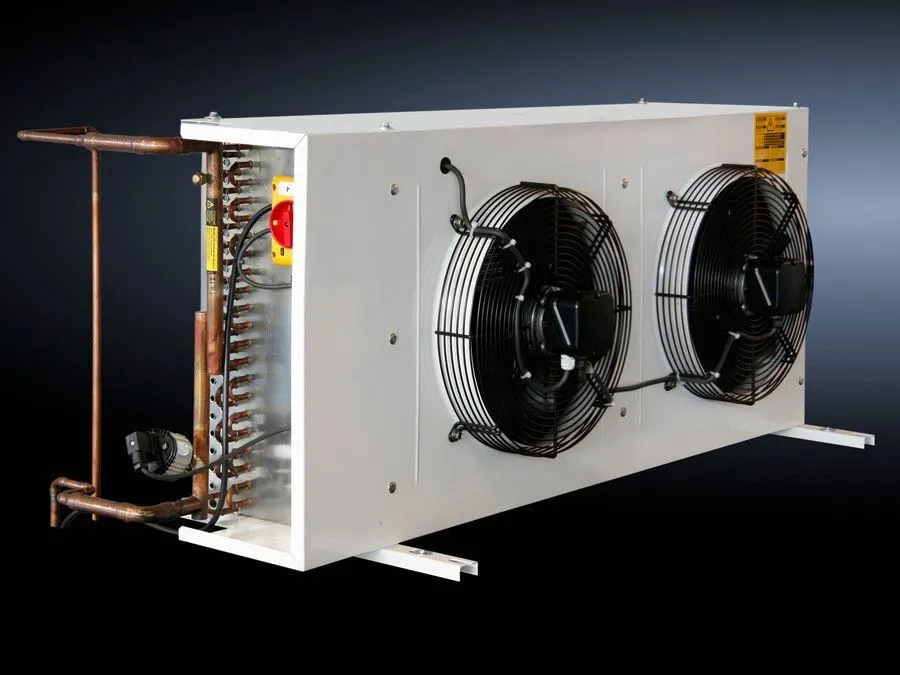

3311370 Rittal: Air-cooled condenser for LCP Inline DX 35 kW, for roof and wall mounting, power supply: 230 V, 1~, 50/60 Hz, WHD: 2219 x 1110 x 850 mm, colour: RAL 9003
Article number
SK 3311.370
Design
Condenser
Product description
The condenser unit is needed to operate the refrigerant-based LCPs, and comprises the external condenser and two fans whose speed is controlled as a function of the pressure in the cooling circuit.
Material
Sheet steel, spray-finished
Surface finish
Powder-coated, zinc-plated
Colour
RAL 9003
Supply includes
Base unit | Assembly parts
Max. cooling output
35 kW
Temperature control
Speed-controlled fan
Refrigerant/cooling medium
Refrigerant: R410A | Cooling medium: -
Dimensions
Width: 2,293 mm | Height: 1,270 mm | Depth: 1,110 mm
Total cooling output/Number of fan modules
2
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Packs of
1 pc(s).
Weight/pack
120 kg
Customs tariff number
84189910
EAN
4028177691445
ETIM 8
EC002515
ETIM 7.0
EC002515
ECLASS 8.0
27180712
Product description
Air-cooled condenser for LCP Inline DX 35 kW, for roof and wall mounting, power supply: 230 V, 1~, 50/60 Hz, WHD: 2219 x 1110 x 850 mm, colour: RAL 9003
