3311380
Part Number: 3311380
Product Information
Extended Description

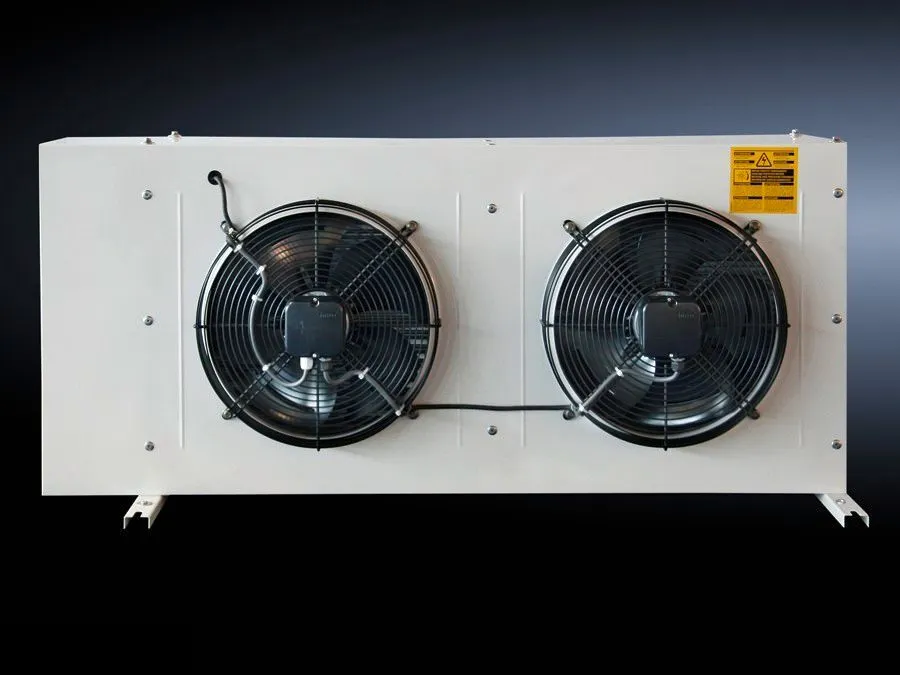

3311380 Rittal: Air-cooled hybrid condenser for LCP Inline DX/ FC, for roof/wall mounting, power supply: 400 V, 3~, 50/60 Hz, WHD: 3048x1270x1110 mm, RAL 9003
Article number
SK 3311.380
Design
Condenser with free cooler
Material
Sheet steel, spray-finished
Surface finish
Powder-coated, zinc-plated
Colour
RAL 9003
Supply includes
Basic unit and external condenser unit | Assembly parts
Max. cooling output
35 kW
Temperature control
Speed-controlled fan
Refrigerant/cooling medium
Refrigerant: R410A | Cooling medium: Water/glycol
Dimensions
Width: 3,048 mm | Height: 1,270 mm | Depth: 1,100 mm
Total cooling output/Number of fan modules
2
Rated operating voltage
400 V, 3~, 50 Hz/60 Hz
Packs of
1 pc(s).
Weight/pack
285 kg
Customs tariff number
84189910
EAN
4028177811683
ETIM 8
EC002515
ETIM 7.0
EC002515
ECLASS 8.0
27180712
Product description
Air-cooled hybrid condenser for LCP Inline DX/ FC, for roof/wall mounting, power supply: 400 V, 3~, 50/60 Hz, WHD: 3048x1270x1110 mm, RAL 9003
