3311492
Part Number: 3311492
Product Information
Extended Description

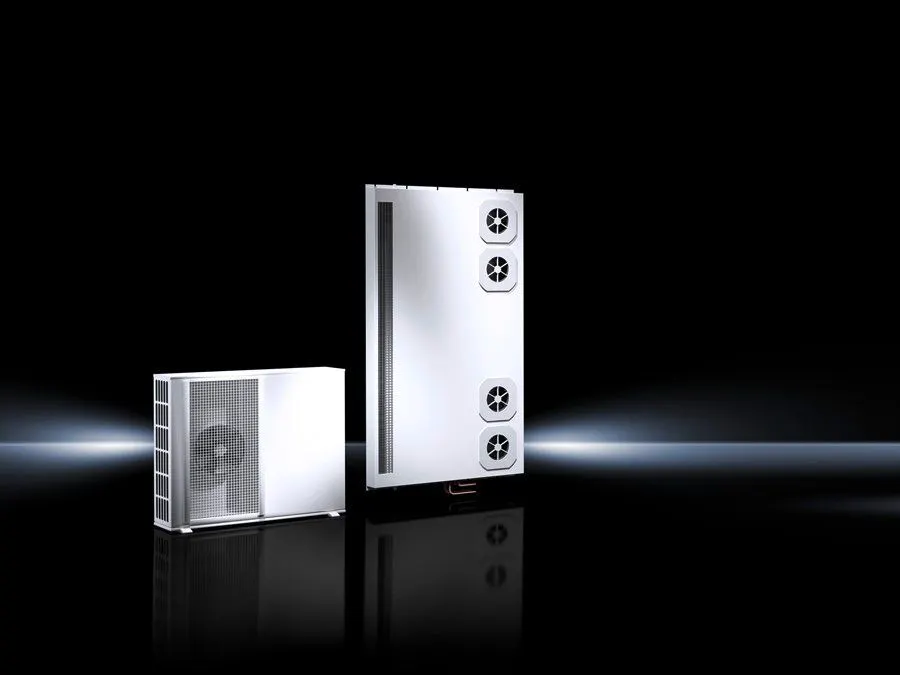

3311492 Rittal: SK LCU DX split cooling unit 6.5 kW, refrigerant-based cooling of IT racks and Micro Data Centers, 1 x external unit with inverter-controlled compressor, 1 x internal unit, single version
Article number
SK 3311.492
Design
LCU DX 6.5 kW
Benefits
Space-saving solution by installing the internal unit in the VX IT server enclosure or the Micro Data Center
Applications
Cooling unit for VX IT server racks and for Micro Data Centers
Function principle
The device supports front-to-back air routing typical of IT applications, and regulates the server inlet temperature to the set value
Material
Sheet steel, spray-finished
Colour
Internal unit: RAL 7035 | External unit: white
Supply includes
Internal unit (evaporator coil) | External unit (inverter-controlled) | 482.6 mm (19") mounting trim panel with display and control components | Condensate hose
Installation options in VX
482.6 mm (19") mounting angles, standard or dynamic, must be offset in the width by 50 mm off-centre
Note
Below the operating limit, fluctuations in the air inlet temperature are possible
IP protection category to IEC 60 529
Internal unit IP 20
Modulation range
3 ‐ 6.5 kW
Max. cooling output
6.5 kW
Type of electrical connection
Connection clamp
Duty cycle
100 %
Operating temperature
The specified operating temperature refers to the external unit
To fit
Enclosure type: VX IT | Width: = 800 mm | Height: ≥ 1,800 mm | Depth: ≥ 1,000 mm
Internal unit dimensions
Width: 105 mm | Height: 1,550 mm | Depth: 820 mm
External unit dimensions
Width: 845 mm | Height: 700 mm | Depth: 320 mm
Rated operating voltage
230 V, 1~, 50 Hz
Pre-fuse
20 A
Rated current
15.9 A
Packs of
1 pc(s).
Weight/pack
121.5 kg
Customs tariff number
84158200
EAN
4028177709300
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK LCU DX split cooling unit 6.5 kW, refrigerant-based cooling of IT racks and Micro Data Centers, 1 x external unit with inverter-controlled compressor, 1 x internal unit, single version
