3312800
Part Number: 3312800
Product Information
Extended Description

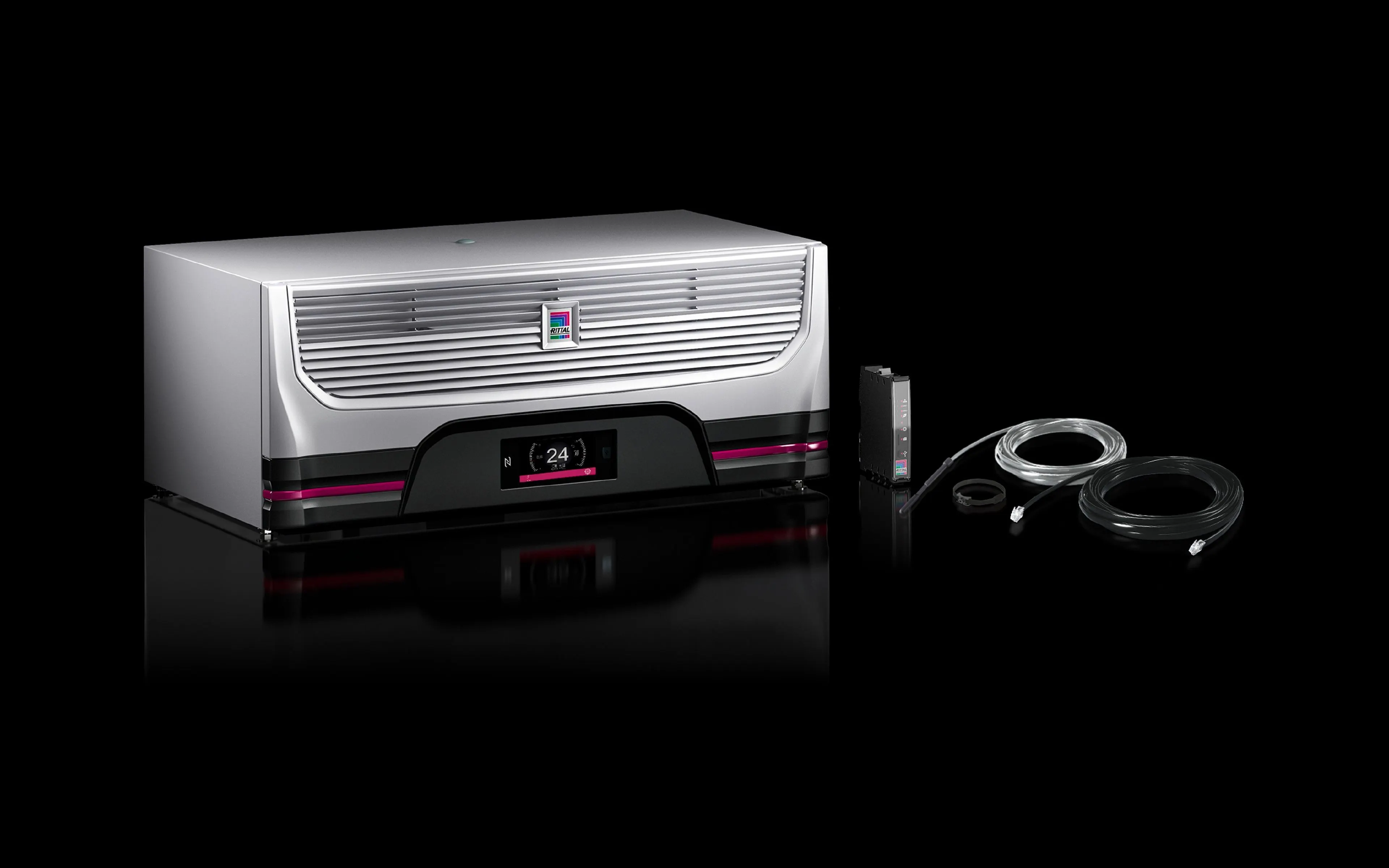

3312800 Rittal: SK IT roof-mounted cooling unit Blue e+, 1.6 kW, for energy-efficient cooling of IT racks
Article number
SK 3312.800
Design
roof-mounted
Product description
The use of Blue e+ technology makes this bundle ideally suited to the requirements of energy-efficient cooling of IT racks. In combination with the IoT interfaces, it supports communication with various different systems as well as monitoring and energy management.
Benefits
Energy savings thanks to speed-regulated components and heat pipe technology
Technical specifications
Further information, instructions and technical data on the individual components listed in this bundle can be found on the relevant item pages
Material
Sheet steel
Colour
RAL 7035
Supply includes
Bundle comprised of the following individual components: | Roof-mounted cooling unit (3185.730) | IoT interface (3124.300) | Temperature sensor (3124.400) | Connection cable (7030.091) | Nylon loop cable holder (7111.350)
Useful cooling output L22 L30
1,600 W
Rated operating voltage
110 V - 240 V, 1~, 50 Hz/60 Hz
Rated power input
0.75 kW
Type of electrical connection
Plug-in terminal strip
Dimensions
Width: 700 mm | Height: 308 mm | Depth: 560 mm
Duty cycle
100 %
Temperature control
e+ controller
Protocols
OPC-UA
Operating temperature range
-20 °C...55 °C
Permissible operating pressure (p. max.)
24 bar
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...50 °C
Protection category to IEC 60 529
External circuit IP 54 with pleated filter
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 0.6 kg | CO₂ equivalent (CO₂e): 0.38 t
Packs of
1 pc(s).
Weight/pack
38 kg
Customs tariff number
84158200
EAN
4028177942431
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK IT roof-mounted cooling unit Blue e+, 1.6 kW, for energy-efficient cooling of IT racks
