3312810
Part Number: 3312810
Product Information
Extended Description

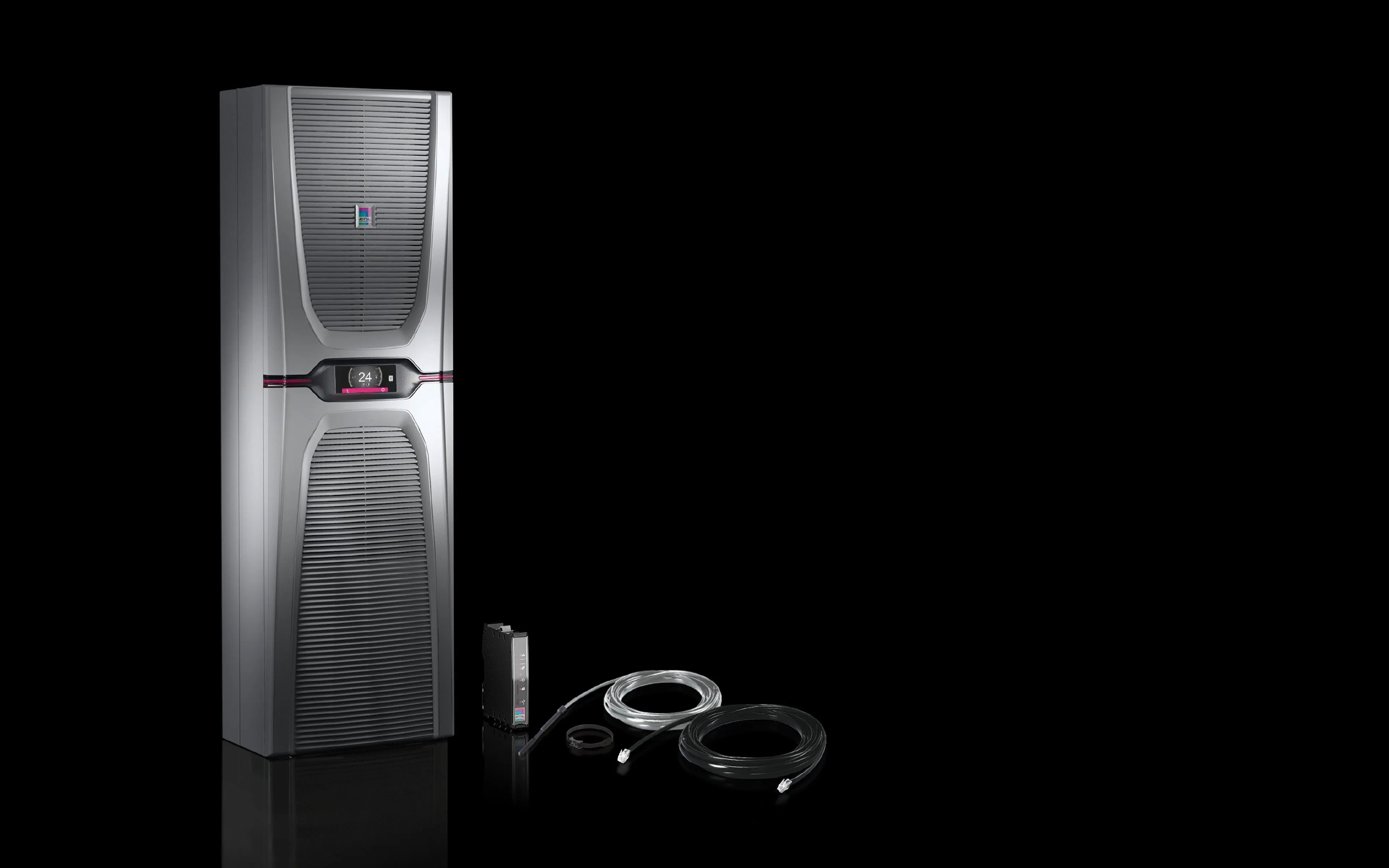

3312810 Rittal: SK IT wall cooling unit Blue e+, 2kW, With IoT Interface, WHD: 450x1600x294 mm
Article number
SK 3312.810
Design
wall-mounted
Product description
The use of Blue e+ technology makes this bundle ideally suited to the requirements of energy-efficient cooling of IT racks. In combination with the IoT interfaces, it supports communication with various systems as well as monitoring and energy management.
Benefits
Energy savings thanks to speed-regulated components and heat pipe technology
Technical specifications
Further information, instructions and technical data on the individual components listed in this bundle can be found on the relevant item pages
Material
Sheet steel
Colour
RAL 7035
Supply includes
Bundle comprised of the following individual components: | Wall-mounted cooling unit (3187.930) | IoT interface (3124.300) | Temperature sensor (3124.400) | Connection cable (7030.091) | Nylon loop cable holder (7111.350)
Useful cooling output L22 L30
3,000 W
Rated operating voltage
110 V - 240 V, 1~, 50 Hz/60 Hz
Rated power input
1.05 kW
Type of electrical connection
Plug-in terminal strip
Dimensions
Width: 450 mm | Height: 1,600 mm | Depth: 294 mm
Duty cycle
100 %
Temperature control
e+ controller
Protocols
OPC-UA
Operating temperature range
-20 °C...60 °C
Permissible operating pressure (p. max.)
25 bar
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...50 °C
Protection category to IEC 60 529
External circuit IP 24
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 1.07 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.68 t
Packs of
1 pc(s).
Weight/pack
55.2 kg
Customs tariff number
84158200
EAN
4028177944558
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK IT wall cooling unit Blue e+, 2kW, With IoT Interface, WHD: 450x1600x294 mm
