3313016
Part Number: 3313016
Product Information
Extended Description

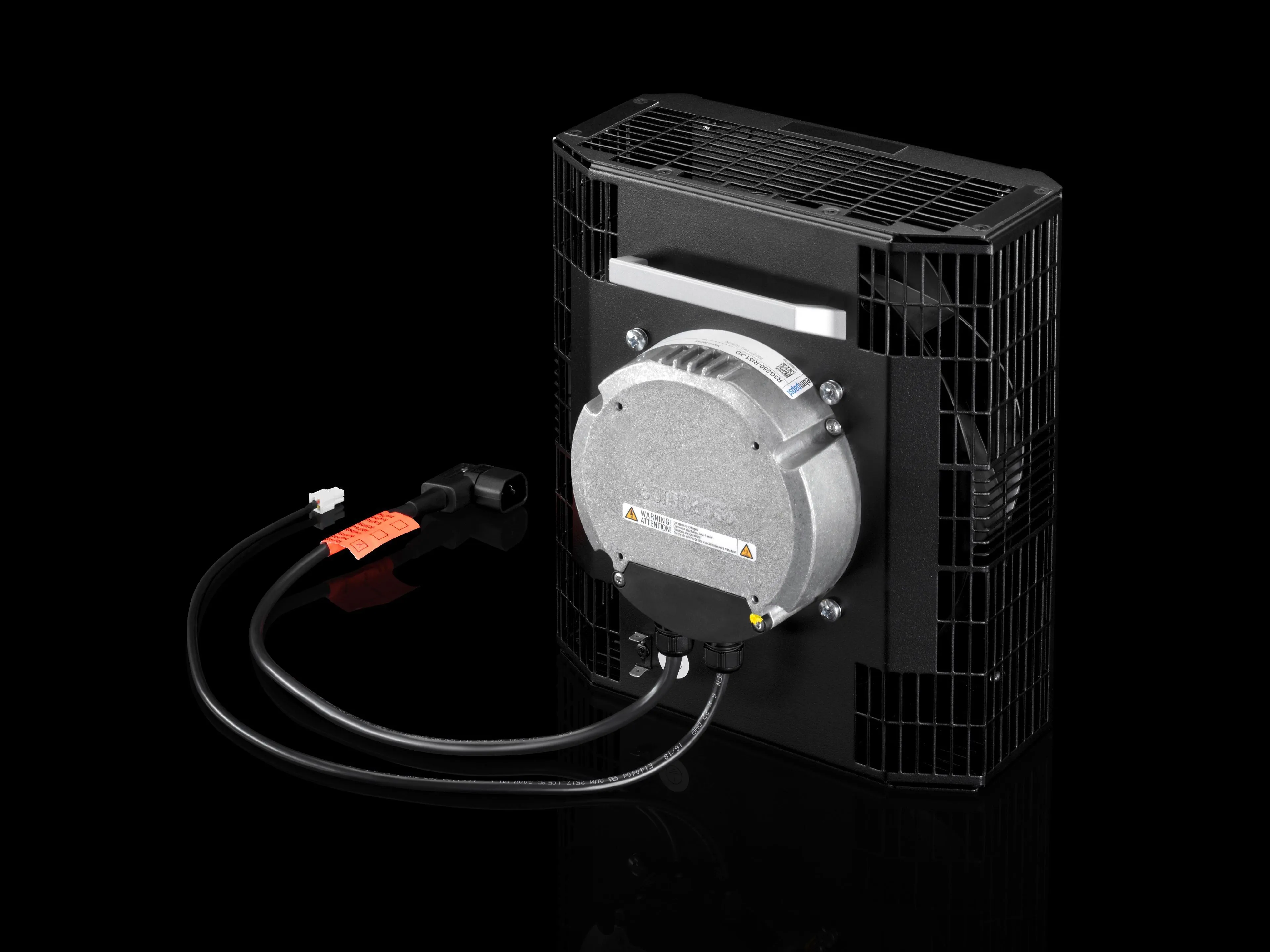

3313016 Rittal: SK fan module, UL, for LCP Rack/Inline CW, based on VX IT, to increase the cooling capacity, individual fan modules may be retro-fitted into the LCPs. Additional integration can also achieve redundancy or reduce the electric power consumption of the LCP. RAL 9005
Article number
SK 3313.016
Design
for LCP Rack/Inline CW
Product description
To increase the cooling output, individual fan modules may be retro-fitted into the LCPs. Additional integration can also achieve redundancy or reduce the electric power consumption of the LCPs.
Benefits
May be connected with the system operational
Function principle
Installing fan modules in an LCP increases the air throughput and hence the cooling output of the chosen variant. With an adequate cooling output, fan modules may be added to create redundancy. Retro-fitting additional fans over and above the required volumetric air flow allows you to reduce the electrical energy consumption, since the fans then operate at a lower speed. At the same time, the noise level of the unit will be significantly reduced.
Material
Enclosure: Sheet steel
Colour
RAL 9005
Supply includes
1 fan unit | EC fan | Fully wired ready for connection | Assembly parts
Power consumption
500 W
Speed
3,780 rpm
Air throughput (unimpeded air flow)
1,990 m³/h
Packs of
1 pc(s).
Weight/pack
6.9 kg
Customs tariff number
84145915
EAN
4028177954458
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK fan module, UL, for LCP Rack/Inline CW, based on VX IT, to increase the cooling capacity, individual fan modules may be retro-fitted into the LCPs. Additional integration can also achieve redundancy or reduce the electric power consumption of the LCP. RAL 9005
