Part Number: 3313268
Product Information
Extended Description

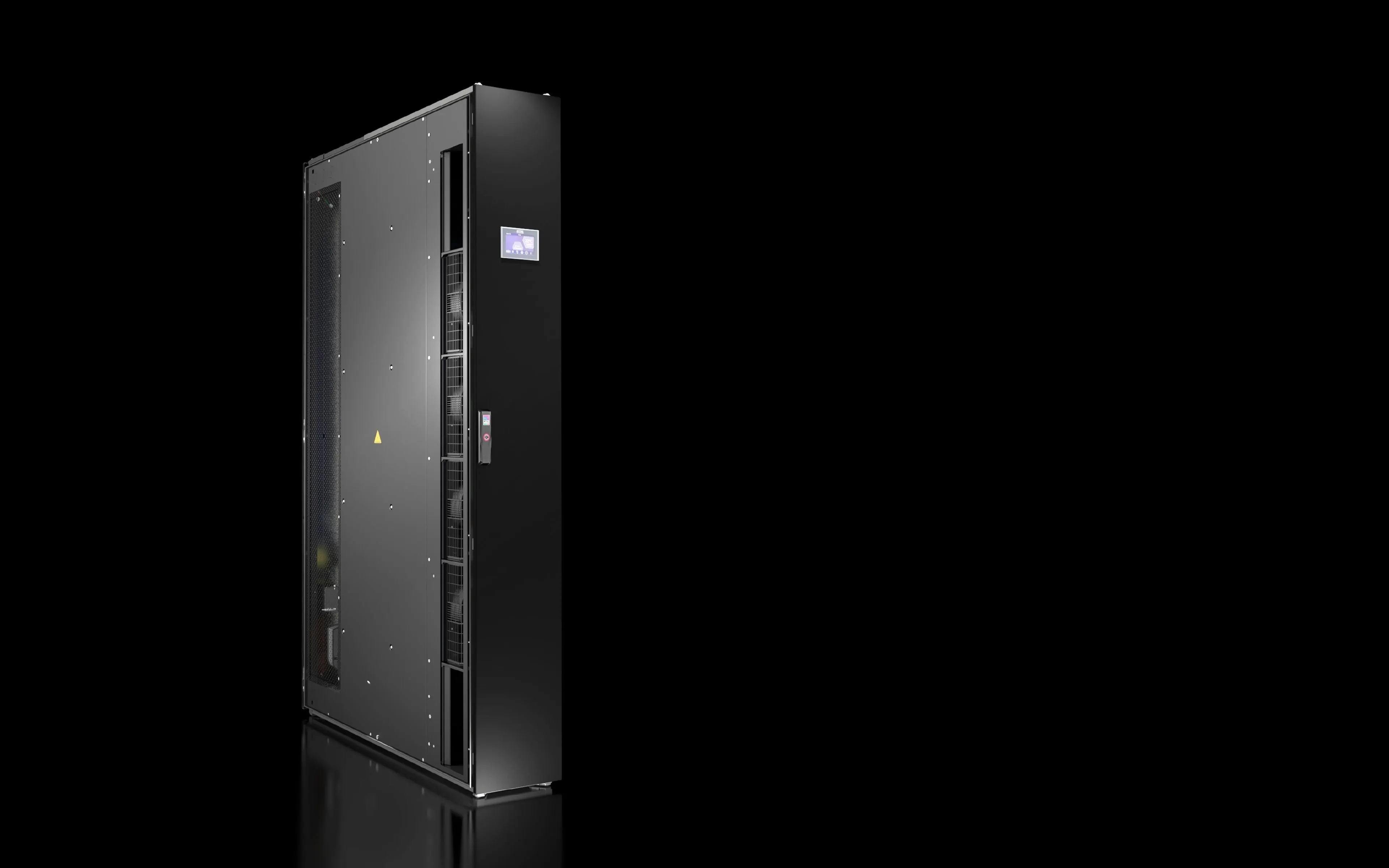

3313268 Rittal: SK LCP Rack CW UL, based on VX IT, air/water heat exchanger for rack cooling, side mounting on the rack, flush, RAL 9005
Article number
SK 3313.268
Design
CW
Benefits
Maximum energy efficiency due to EC fan technology and IT-based control
Function principle
The LCP draws in the air at the sides at the rear of the server enclosures, cools it using high-performance compact impellers, and blows the cooled air back into the front part of the server enclosure at the sides
Material
Sheet steel, spray-finished
Surface finish
RAL 9005, finely textured matt
Colour
RAL 9005
Options
Fully integrated fire detection and extinguisher system | Automatic server enclosure door opening | Direct connection of additional CMC III sensors is supported | Racks 2200 mm high
Design
Rack cooling
Monitoring
Monitoring of all system-relevant parameters such as server air intake temperature, server waste air temperature, water inlet/return temperature, water flow, cooling output, fan speed, leakage
Total cooling output
485153
Total cooling output/Number of fan modules
48 kW/4 | 51 kW/5 | 53 kW/6
Air throughput (unimpeded air flow)
At 60 Hz: 8,000 m³/h
Number of fan modules in supplied state
6
Dimensions
Width: 300 mm | Height: 2,000 mm | Depth: 1,200 mm
To fit enclosure type
VX IT
Installation in bayed enclosure suite
Flush
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Max. cooling output
53 kW
Type of electrical connection
Connector
Duty cycle
100 %
Cooling medium
Water
Temperature control
Linear fan control
Water connections
DN 40 (G 1½" external thread)
Permissible operating pressure (p. max.)
10 bar
Water inlet temperature
15 °C
Protection category to IEC 60 529
IP 20
Options
Fully integrated fire detection and extinguisher system
Packs of
1 pc(s).
Weight/pack
260 kg
Customs tariff number
84186900
EAN
4028177962767
ETIM 9
EC002515
ETIM 8
EC002515
ECLASS 8.0
27180712
Product description
SK LCP Rack CW UL, based on VX IT, air/water heat exchanger for rack cooling, side mounting on the rack, flush, RAL 9005
