3313420
Part Number: 3313420
Product Information
Extended Description

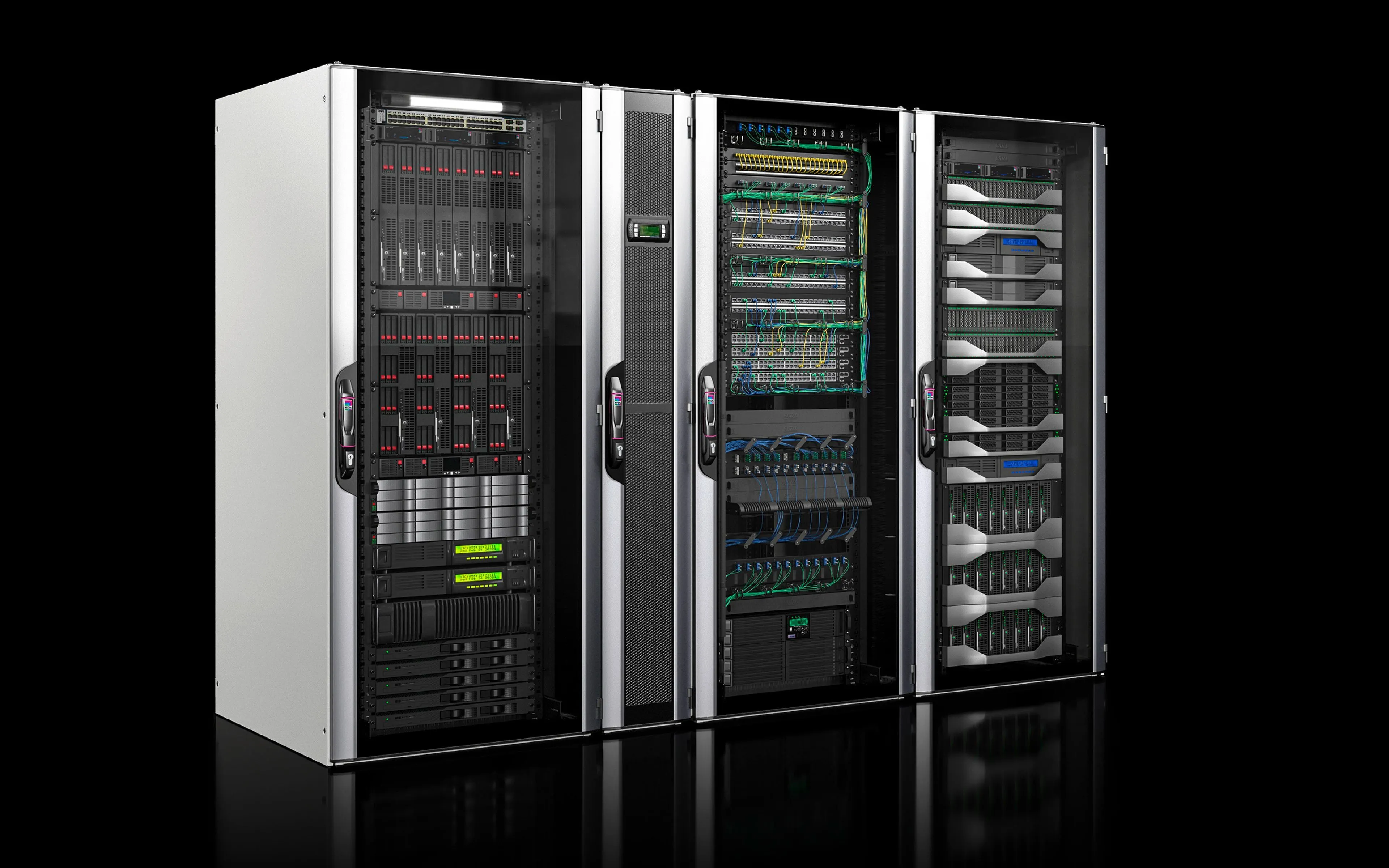

3313420 Rittal: LCP Rack DX, 12 kW, flush, RAL 7035, WHD: 300 x 2000 x 1200 mm, 380 – 480 V/3~/50 – 60 Hz
Article number
SK 3313.420
Design
DX
Benefits
Maximum energy efficiency due to EC fan technology and IT-based control
Applications
Ideal for IT cooling of small and medium-sized locations
Function principle
The LCP draws in the air at the sides at the rear of the server enclosures, cools it using high-performance compact impellers, and blows the cooled air back into the front part of the server enclosure at the sides
Material
Sheet steel, spray-finished
Colour
RAL 7035
Options
Humidifier | Dehumidification and reheater | Condensate drain pump | Low-temperature/high-temperature condenser (-40 °C/+53 °C)
Design
Rack cooling
Monitoring
Direct connection of the unit via SNMP over Ethernet
Total cooling output to DIN EN 14511
Useful cooling output L22 L35: 12 kW | Useful cooling output L22 L45: 10 kW
Total cooling output
12
Total cooling output/Number of fan modules
12 kW/4
Modulation range
3 ‐ 12 kW
Air throughput (unimpeded air flow)
At 50 Hz: 4,800 m³/h
Dimensions
Width: 300 mm | Height: 2,000 mm | Depth: 1,200 mm
To fit enclosure type
VX IT
Installation in bayed enclosure suite
Flush
Rated operating voltage
380 V - 480 V, 3~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 7.5 A
Max. cooling output
12 kW
Type of electrical connection
Connection clamp
Duty cycle
100 %
EC fan
Yes
SNMP card
Yes
Fans may be exchanged with the system operational
Yes
Temperature control
Linear fan control
Pre-fuse
Miniature circuit-breaker/fuse: 20 A
Storage temperature range
-20 °C...50 °C
Operating temperature range
5 °C...35 °C
Noise level
At 50 Hz: 68 dB(A)
Protection category to IEC 60 529
IP 40
Options
Humidifier
Packs of
1 pc(s).
Weight/pack
201 kg
Customs tariff number
84186900
EAN
4028177953840
ETIM 9
EC002515
ETIM 8
EC002515
ECLASS 8.0
27180712
Product description
LCP Rack DX, 12 kW, flush, RAL 7035, WHD: 300 x 2000 x 1200 mm, 380 – 480 V/3~/50 – 60 Hz
