3313610
Part Number: 3313610
Product Information
Extended Description

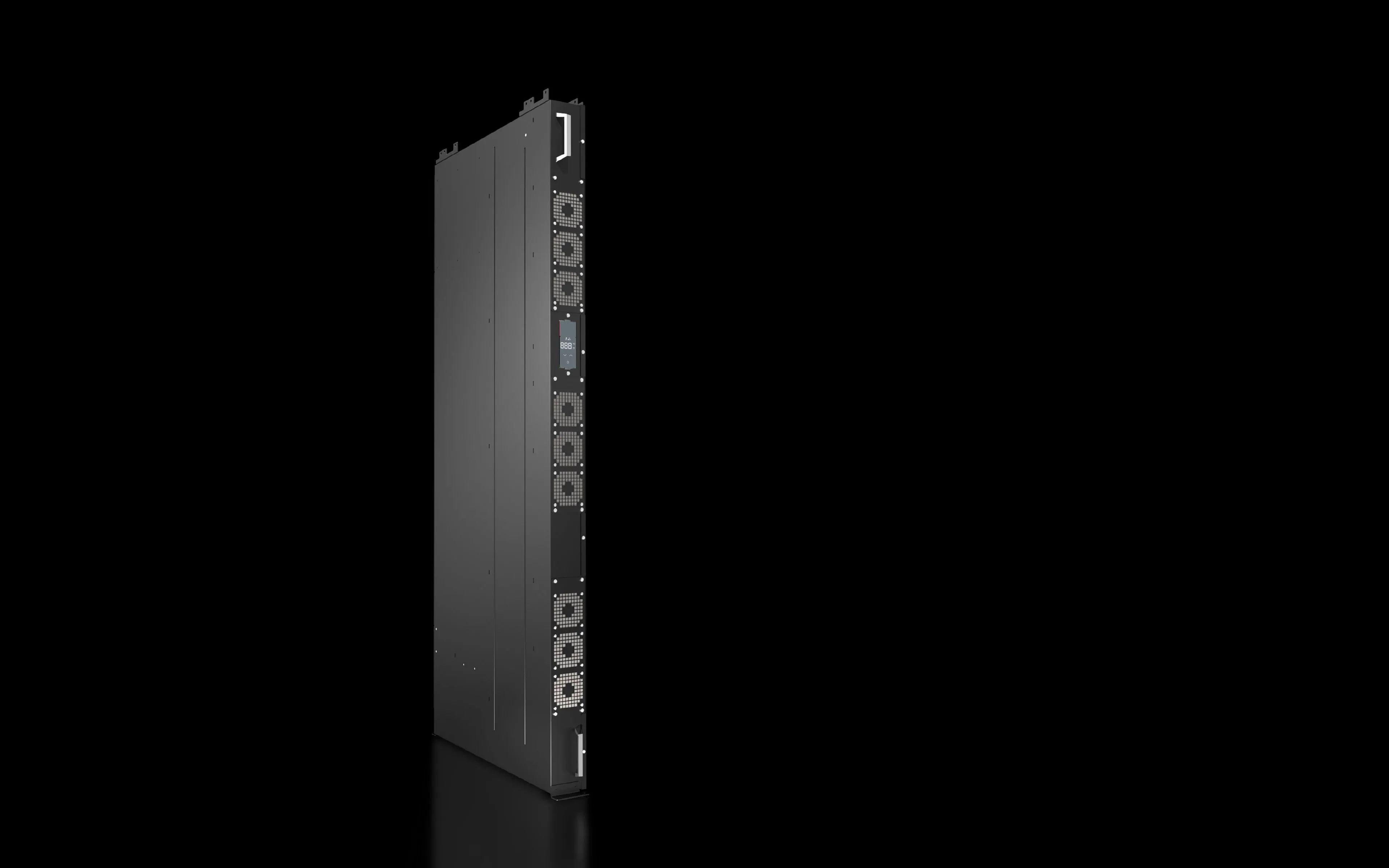

3313610 Rittal: SK 3313.610 Liquid Cooling Unit LCU CW, L24/W15: 7.9 kW, WHD: 110x1866.5x756 mm
Article number
SK 3313.610
Design
Rack cooling | CW
Benefits
Efficient cooling of network/server racks
Function principle
The LCU CW is built into the network/server rack adjacent to the 482.6 mm (19") mounting level. The heated air is drawn in at the rear third of the rack, cooled via the heat exchanger, and then expelled again from the front section of the rack.
Material
Sheet steel, spray-finished
Colour
RAL 9005
Supply includes
1 liquid cooling unit CW | 1 support for LCU CW | 3 m braided hose (for condensate discharge) | 2 angular hose connectors 90° | 12 screws M5 x 12 self-tapping NZ/TX30 | 1 female multi-point connector (7-pole) | 1 set of assembly, installation and operating instructions
Options
Connect a maximum of 16 CMC III sensors
Monitoring
Monitoring of all system-relevant parameters such as server air intake temperature, server waste air temperature, water inlet/return temperature, water flow, cooling output, fan speed, leakage
Temperature control
Control of the server inlet temperature
IP protection category to IEC 60 529
IP 20
Duty cycle
100 %
Refrigerant/cooling medium
Cooling medium: Water
To fit
Enclosure type: VX IT Standard 19" mounting angles | Width: ≥ 800 mm | Height: ≥ 2,000 mm | Depth: ≥ 1,000 mm
Dimensions
Width: 110 mm | Height: 1,866.5 mm | Depth: 756 mm
Rated operating voltage
90 – 264 V, 1~, 50 Hz/60 Hz
Air throughput (unimpeded air flow)
1,500 m³/h
Rated power input
0.5 kW
DC fans
Yes
Fans may be exchanged with the system operational
Yes
Water connections
G ¾" external thread
Permissible operating pressure (p. max.)
1 MPa
Operating temperature range
10 °C...50 °C
Operating temperature range of cooling medium
10 °C...30 °C
Total cooling output
Useful cooling output L24 (server air inlet temperature) W15: 7.9 kW | Useful cooling output L24 (server air inlet temperature) W18: 6.8 kW
Packs of
1 pc(s).
Weight/pack
53 kg
Customs tariff number
84186900
EAN
4028177973251
ETIM 9
EC000855
ETIM 8
EC000855
Product description
SK 3313.610 Liquid Cooling Unit LCU CW, L24/W15: 7.9 kW, WHD: 110x1866.5x756 mm
