Part Number: 3314230
Product Information
Extended Description

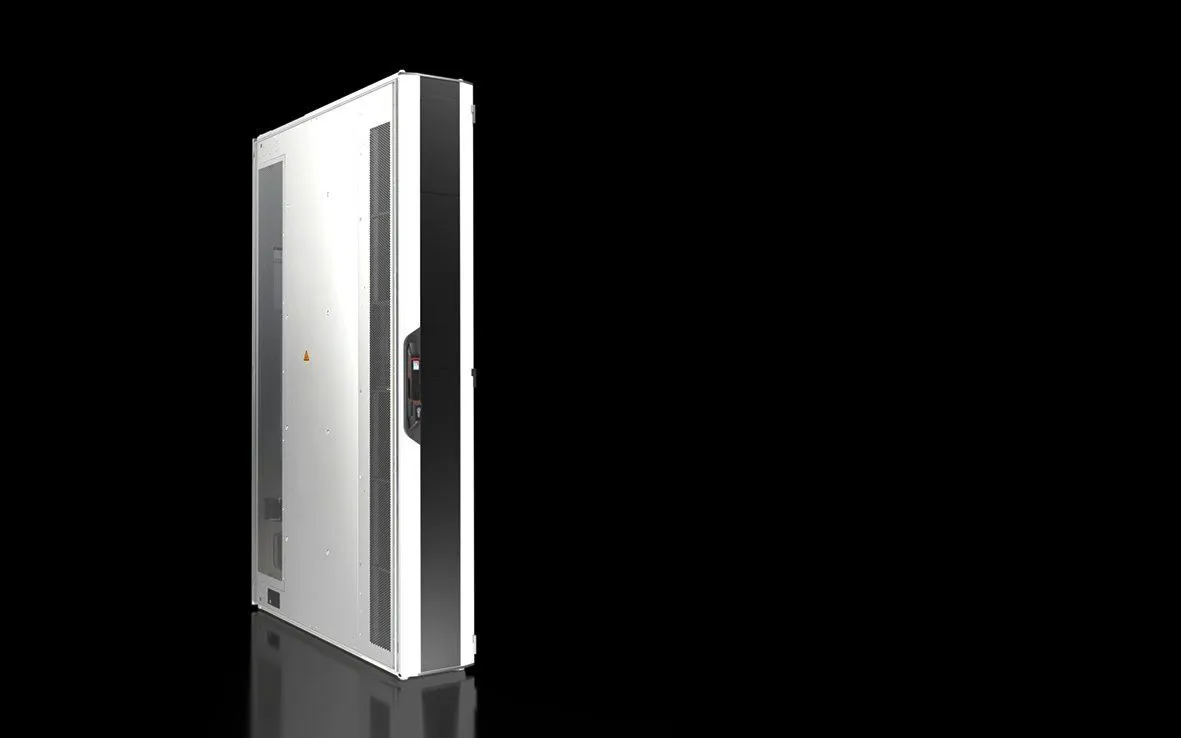

3314230 Rittal: LCP Rack CW, 30 kW, flush, RAL 7035, WHD: 300x2000x1200 mm
Article number
SK 3314.230
Design
Rack cooling | CW
Benefits
Maximum energy efficiency due to EC fan technology and IT-based control
Function principle
The LCP draws in the air at the sides at the rear of the server enclosures, cools it using high-performance compact impellers, and blows the cooled air back into the front part of the server enclosure at the sides
Material
Enclosure: Sheet steel | Front door: Aluminium, anodised/spray-finished
Colour
Enclosure: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005
Options
Fully integrated fire detection and extinguisher system | Automatic server enclosure door opening | Direct connection of an additional 16 CMC III sensors possible | Racks 2200 mm high
Monitoring
Monitoring of all system-relevant parameters such as server air intake temperature, server waste air temperature, water inlet/return temperature, water flow, cooling output, fan speed, leakage
Note on Model No.
Optimised condensate management also at low water inlet temperatures, available upon request.
Total cooling output
102030
Total cooling output/Number of fan modules
10 kW/1 | 20 kW/2 | 30 kW/3
Air throughput (unimpeded air flow)
At 50 Hz: 4,800 m³/h
Number of fan modules in supplied state
1
Dimensions
Width: 300 mm | Height: 2,000 mm | Depth: 1,200 mm
To fit enclosure type
VX IT
Installation in bayed enclosure suite
Flush
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Max. cooling output
30 kW
Type of electrical connection
Connector
Duty cycle
100 %
Cooling medium
Water
EC fan
Yes
Fans may be exchanged with the system operational
Yes
Temperature control
Linear fan control
Water connections
DN 40 (G 1½" external thread)
Permissible operating pressure (p. max.)
10 bar
Water inlet temperature
15 °C
Protection category to IEC 60 529
IP 10B
Options
Fully integrated fire detection and extinguisher system
Packs of
1 pc(s).
Weight/pack
230 kg
Customs tariff number
84186900
EAN
4028177977785
Product description
LCP Rack CW, 30 kW, flush, RAL 7035, WHD: 300x2000x1200 mm
