3314250
Part Number: 3314250
Product Information
Extended Description

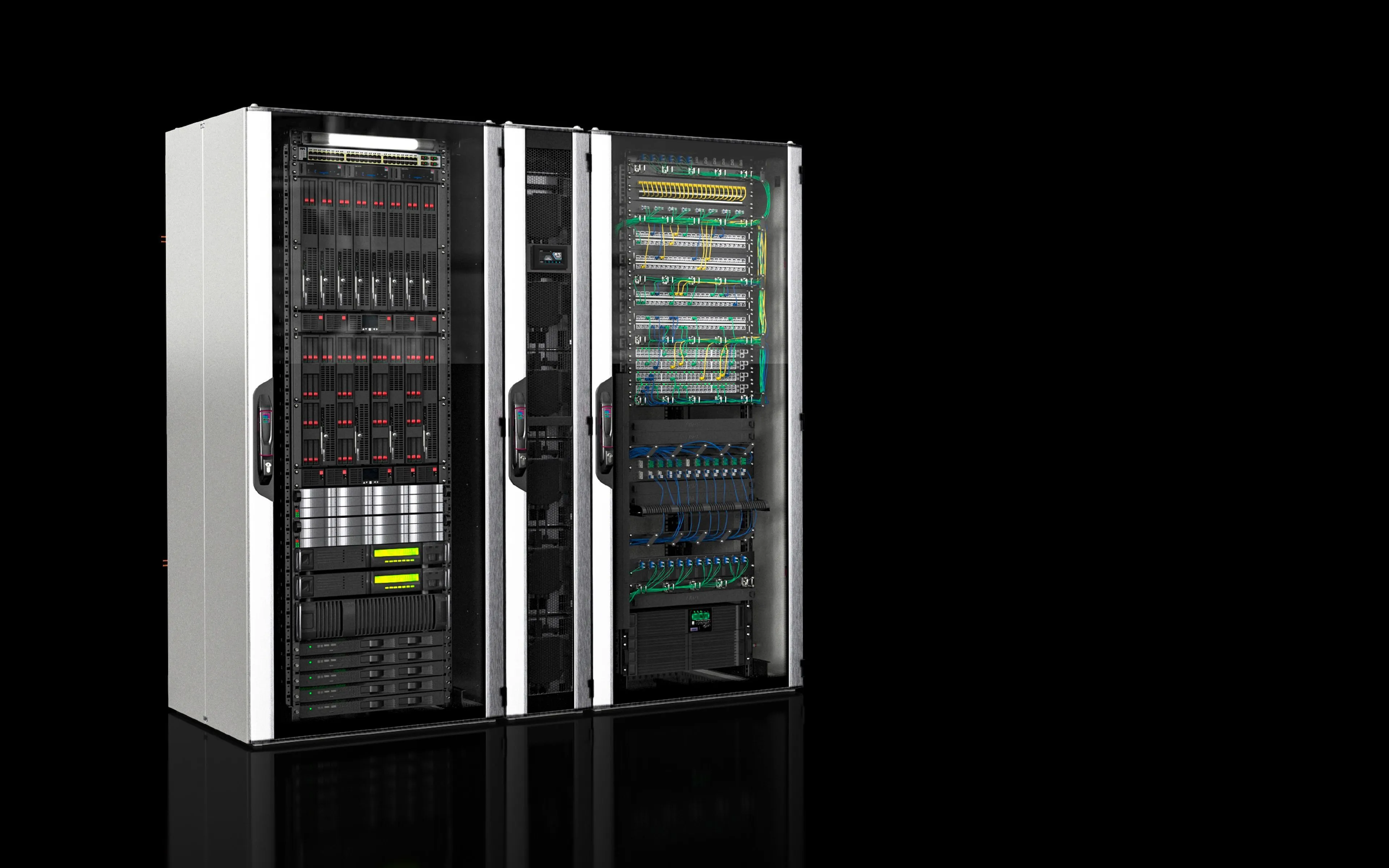

3314250 Rittal: SK LCP Rack CWG, 35 kW, RAL 7035, WHD: 300x2000x1200 mm
Article number
SK 3314.250
Design
Rack cooling | CWG
Benefits
Maximum energy efficiency due to EC fan technology and IT-based control
Function principle
The LCP draws in the air at the sides at the rear of the server enclosures, cools it using high-performance compact impellers, and blows the cooled air back into the front part of the server enclosure at the sides
Material
Enclosure: Sheet steel | Front door: Aluminium, anodised/spray-finished
Colour
Enclosure: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005
Options
Fully integrated fire detection and extinguisher system | Automatic server enclosure door opening | Direct connection of an additional 16 CMC III sensors possible | Racks 2200 mm high
Monitoring
Monitoring of all system-relevant parameters such as server air intake temperature, server waste air temperature, water inlet/return temperature, water flow, cooling output, fan speed, leakage
Total cooling output
384044
Total cooling output/Number of fan modules
38 kW/4 | 40 kW/5 | 44 kW/6
Air throughput (unimpeded air flow)
At 50 Hz: 4,800 m³/h
Number of fan modules in supplied state
4
Dimensions
Width: 300 mm | Height: 2,000 mm | Depth: 1,200 mm
To fit enclosure type
VX IT
Installation in bayed enclosure suite
Flush
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Max. cooling output
35 kW
Type of electrical connection
Connector
Duty cycle
100 %
Cooling medium
Water/glycol
EC fan
Yes
Fans may be exchanged with the system operational
Yes
Temperature control
Linear fan control
Water connections
DN 40 (G 1½" external thread)
Permissible operating pressure (p. max.)
10 bar
Water inlet temperature
15 °C
Protection category to IEC 60 529
IP 10B
Optimized condensate management even at low water flow temperatures
Yes
Options
Fully integrated fire detection and extinguisher system
Packs of
1 pc(s).
Weight/pack
280 kg
Customs tariff number
84186900
EAN
4028177977723
Product description
SK LCP Rack CWG, 35 kW, RAL 7035, WHD: 300x2000x1200 mm
