3314560
Part Number: 3314560
Product Information
Extended Description

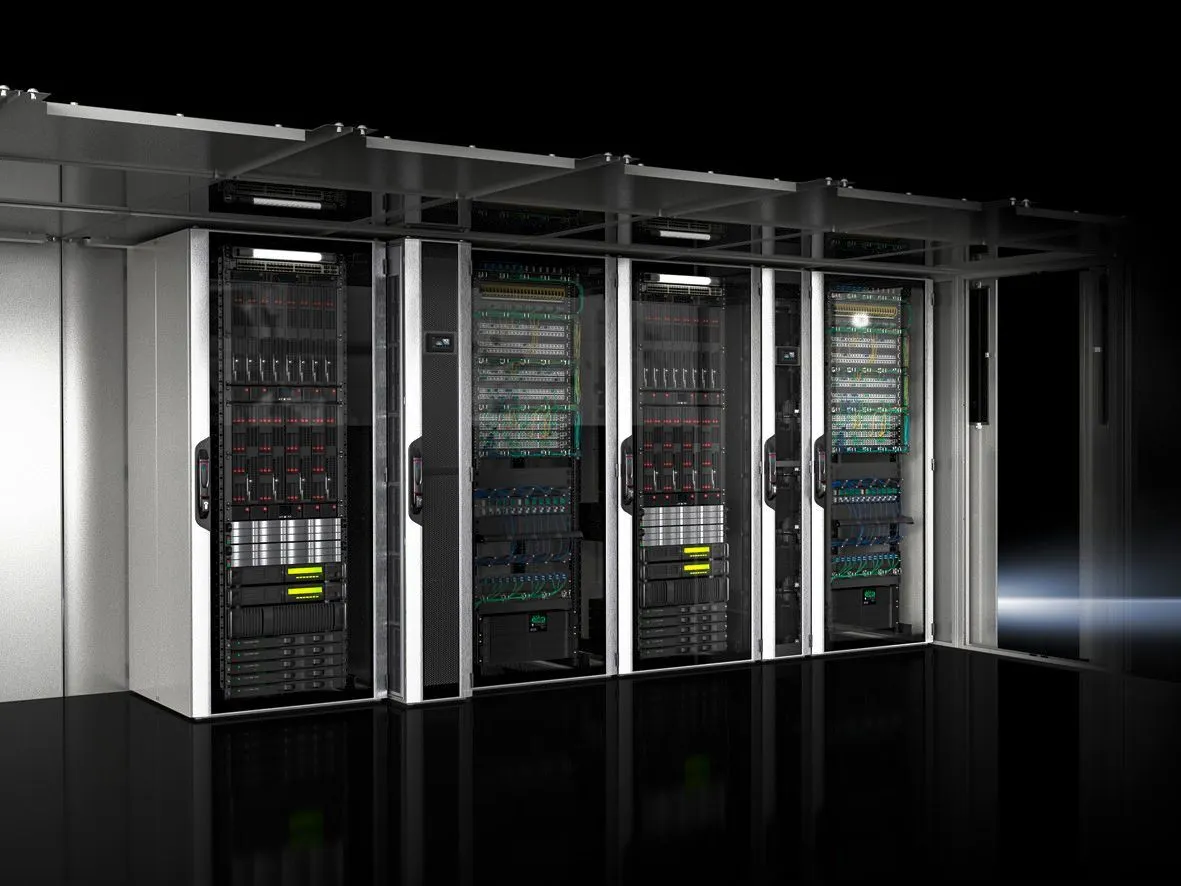

3314560 Rittal: LCP Inline CW, 53 kW, set forward, RAL 7035, WHD: 300x2000x1200 mm
Article number
SK 3314.560
Design
Suite cooling | CW
Benefits
Maximum energy efficiency due to EC fan technology and IT-based control
Function principle
The hot air is drawn in from the room or hot aisle at the rear of the device and expelled at the front into the cold aisle after cooling. With this product, a raised floor is not necessary.
Material
Enclosure: Sheet steel | Front door: Aluminium, anodised/spray-finished
Colour
Enclosure: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005
Options
Direct connection of an additional 16 CMC III sensors possible | Racks in height 2200 mm, additional baffle plate separator including humidity sensor
Monitoring
Monitoring of all system-relevant parameters such as server air intake temperature, server waste air temperature, water inlet/return temperature, water flow, cooling output, fan speed, leakage
Note on Model No.
Optimised condensate management also at low water inlet temperatures, available upon request.
Total cooling output
485153
Total cooling output/Number of fan modules
48 kW/4 | 51 kW/5 | 53 kW/6
Air throughput (unimpeded air flow)
At 50 Hz: 8,000 m³/h
Number of fan modules in supplied state
4
Dimensions
Width: 300 mm | Height: 2,000 mm | Depth: 1,200 mm
To fit enclosure type
VX IT
Installation in bayed enclosure suite
Set forward
Rated operating voltage
200 V - 240 V, 1~, 50 Hz/60 Hz
Max. cooling output
53 kW
Type of electrical connection
Connector
Duty cycle
100 %
Cooling medium
Water
EC fan
Yes
Fans may be exchanged with the system operational
Yes
Temperature control
Linear fan control
Water connections
DN 40 (G 1½" external thread)
Permissible operating pressure (p. max.)
10 bar
Water inlet temperature
15 °C
Protection category to IEC 60 529
IP 10B
Options
Direct connection of an additional 16 CMC III sensors possible
Packs of
1 pc(s).
Weight/pack
260 kg
Customs tariff number
84186900
EAN
4028177977747
Product description
LCP Inline CW, 53 kW, set forward, RAL 7035, WHD: 300x2000x1200 mm
