3328610
Part Number: 3328610
Product Information
Extended Description

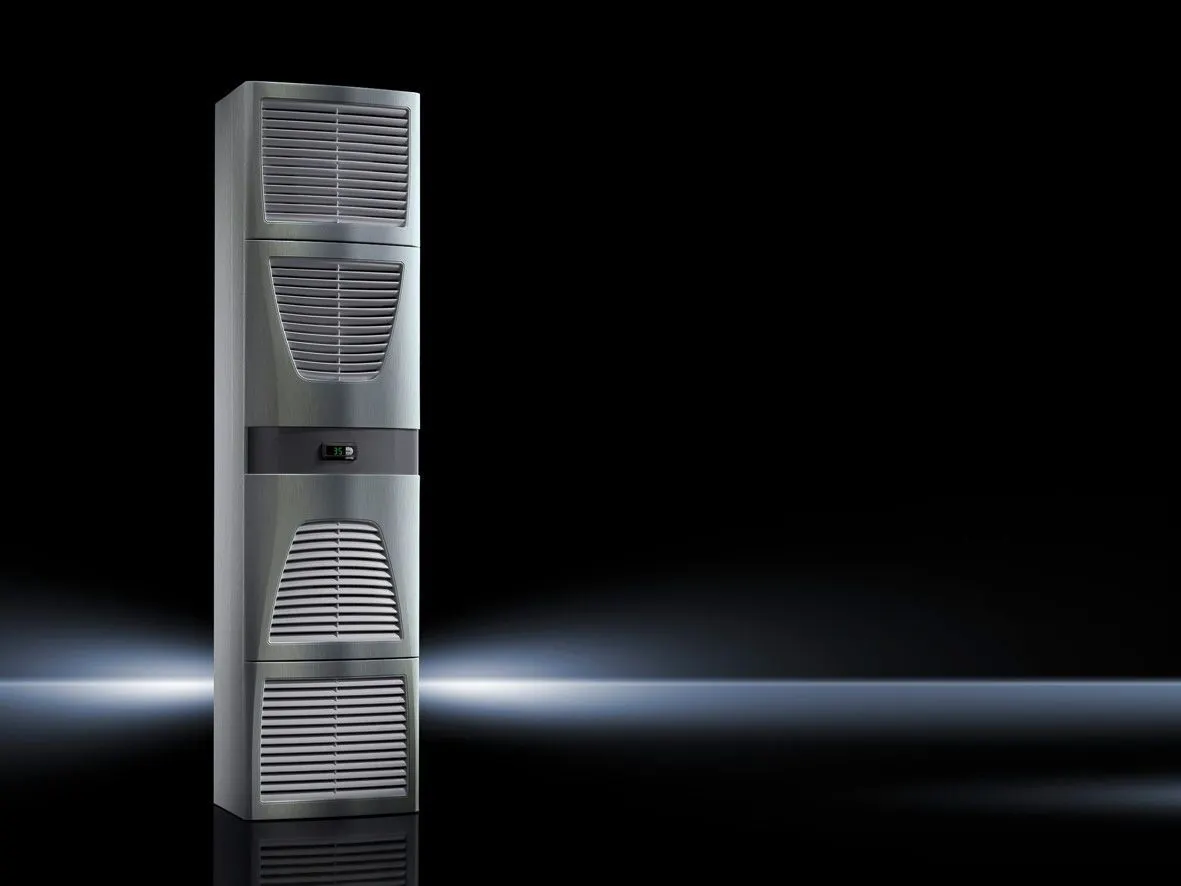

3328610 Rittal: SK Cooling unit Blue e, wall-mounted, 2.1 kW, 115 V, 1~, 50/60 Hz, stainless steel, WHD: 400 x 1580 x 295 mm
Article number
SK 3328.610
Design
wall-mounted
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Stainless steel 1.4301 (AISI 304)
Colour
RAL 9007
Supply includes
Condenser with hydrophobic RiNano coating | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts | Integral electric condensate evaporation
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 2.1 kW | Cooling output L35 L35/60 Hz: 2.44 kW | Cooling output L35 L50/50 Hz: 1.6 kW | Cooling output L35 L50/60 Hz: 1.85 kW
Rated operating voltage
115 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 13.4 A | At 60 Hz: 14.8 A
Start-up current max.
At 50 Hz: 27 A | At 60 Hz: 27 A
Air throughput (unimpeded air flow)
External circuit: 640 m³/h | Internal circuit: 550 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.3 | Refrigeration factor L35 L35 (EER) 60 Hz: 2.47
Design
wall-mounted
Dimensions
Width: 400 mm | Height: 1,580 mm | Depth: 295 mm
Protection category to IEC 60 529
External circuit IP 34
Protection category NEMA
UL Type 12
Refrigerant/cooling medium
Refrigerant: R134a | Quantity: 0.95 kg | Global Warming Potential (GWP): 1,430 | CO₂ equivalent (CO₂e): 1.36 t
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...55 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.86 kW | Power consumption L35 L35/60 Hz: 1.04 kW | Power consumption L35 L50/50 Hz: 1.02 kW | Power consumption L35 L50/60 Hz: 1.23 kW
Permissible operating pressure (p. max.)
28 bar
Note on Model No.
Extended delivery times.
Pre-fuse
Transformer circuit-breaker: 18...25 A
Packs of
1 pc(s).
Weight/pack
73 kg
Customs tariff number
84158200
EAN
4028177379800
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Cooling unit Blue e, wall-mounted, 2.1 kW, 115 V, 1~, 50/60 Hz, stainless steel, WHD: 400 x 1580 x 295 mm
