3340230
Part Number: 3340230
Product Information
Extended Description

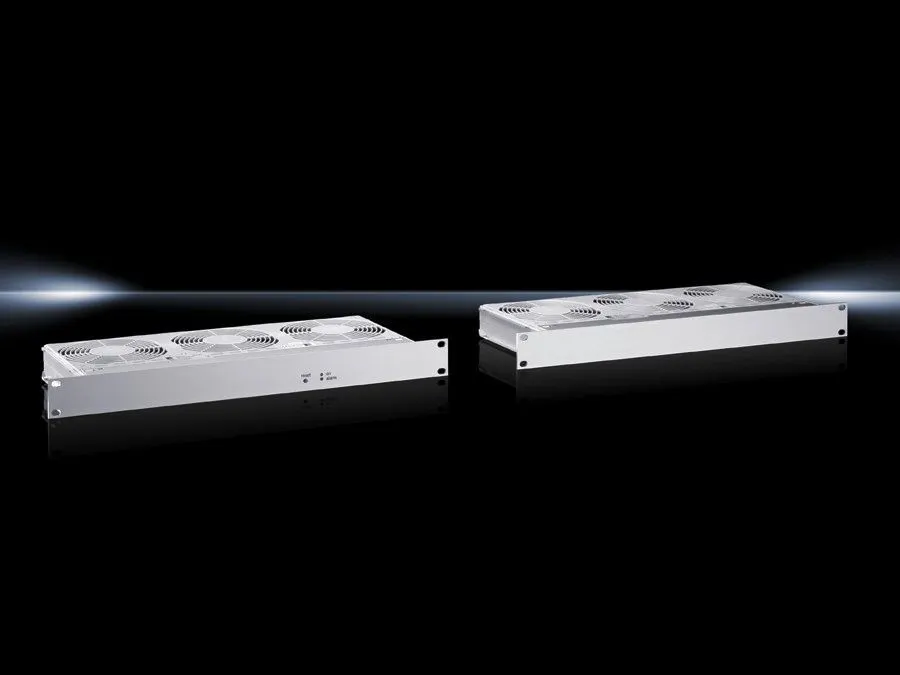

3340230 Rittal: SK rack-mounted fan, for 482.6 mm (19"), 320 m³/h, 230 V, 1~, 50/60 Hz, WHD: 482.6 x 44 x 200 mm
Article number
SK 3340.230
Product description
Rack-mounted fan for direct installation in the 482.6 mm (19") level. Installation allows air to circulate permanently inside the enclosure, thus preventing the formation of hot spots.
Colour
RAL 7035
Supply includes
Fully wired unit ready for connection | Terminal strip and assembly parts
Air throughput (unimpeded air flow)
320 m³/h
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 0.24 A | At 60 Hz: 0.22 A
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Dimensions
Width: 482.6 mm | Height: 44 mm | Depth: 200 mm
Distance between axes of fans
85 mm
No. of fans
2
Noise level
At 50 Hz: 51 dB(A)
Operating temperature range
-10 °C...55 °C
Packs of
1 pc(s).
Weight/pack
2.24 kg
Customs tariff number
84145915
EAN
4028177041448
ETIM 9
EC000320
ETIM 8
EC000320
ECLASS 8.0
27180716
Product description
SK rack-mounted fan, for 482.6 mm (19"), 320 m³/h, 230 V, 1~, 50/60 Hz, WHD: 482.6 x 44 x 200 mm
