3342500
Part Number: 3342500
Product Information
Extended Description
3342500 Rittal: SK rack-mounted fan, for 482.6 mm (19"), 480 m³/h, 115-230 V, 1~, 50/60 Hz, 24 V (DC), WHD: 482.6 x 44 x 200 mm
Article number
SK 3342.500
Product description

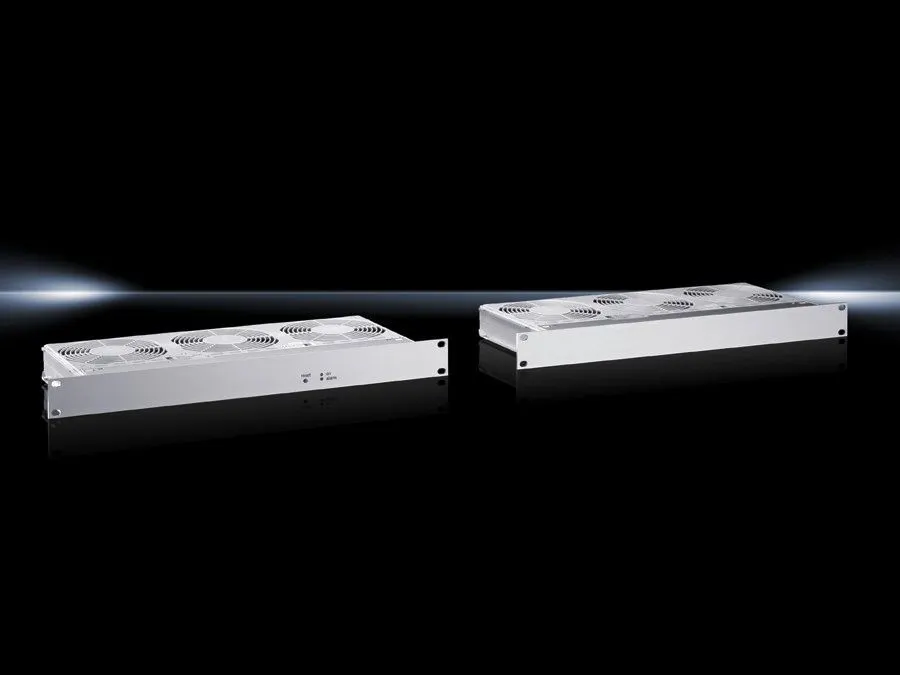

Rack-mounted fan for direct installation in the 482.6 mm (19") level. Installation allows air to circulate permanently inside the enclosure, thus preventing the formation of hot spots.
Colour
RAL 7035
Supply includes
Fully wired unit ready for connection | Terminal strip and assembly parts
Air throughput (unimpeded air flow)
480 m³/h
Note on Model No.
Rack-mounted fan for metric mounting angles available on request.
Rated operating voltage
115 V - 230 V, 1~, 50 Hz/60 Hz
Rated current max.
At 50 Hz: 0.85 A
Pre-fuse
Miniature circuit-breaker/fuse: 6 A
Dimensions
Width: 482.6 mm | Height: 44 mm | Depth: 200 mm
Distance between axes of fans
105 mm
No. of fans
3
Noise level
With DC: 51 dB(A)
Operating temperature range
-10 °C...55 °C
Packs of
1 pc(s).
Weight/pack
2 kg
Customs tariff number
84145915
EAN
4028177041530
ETIM 8
EC000320
ETIM 7.0
EC000320
ECLASS 8.0
27180716
Product description
SK rack-mounted fan, for 482.6 mm (19"), 480 m³/h, 115-230 V, 1~, 50/60 Hz, 24 V (DC), WHD: 482.6 x 44 x 200 mm
