3355700
Part Number: 3355700
Manufacturer
Rittal
Part number
3355700
Category
Alt Part Number
SK 3355.700
Product Information
Extended Description

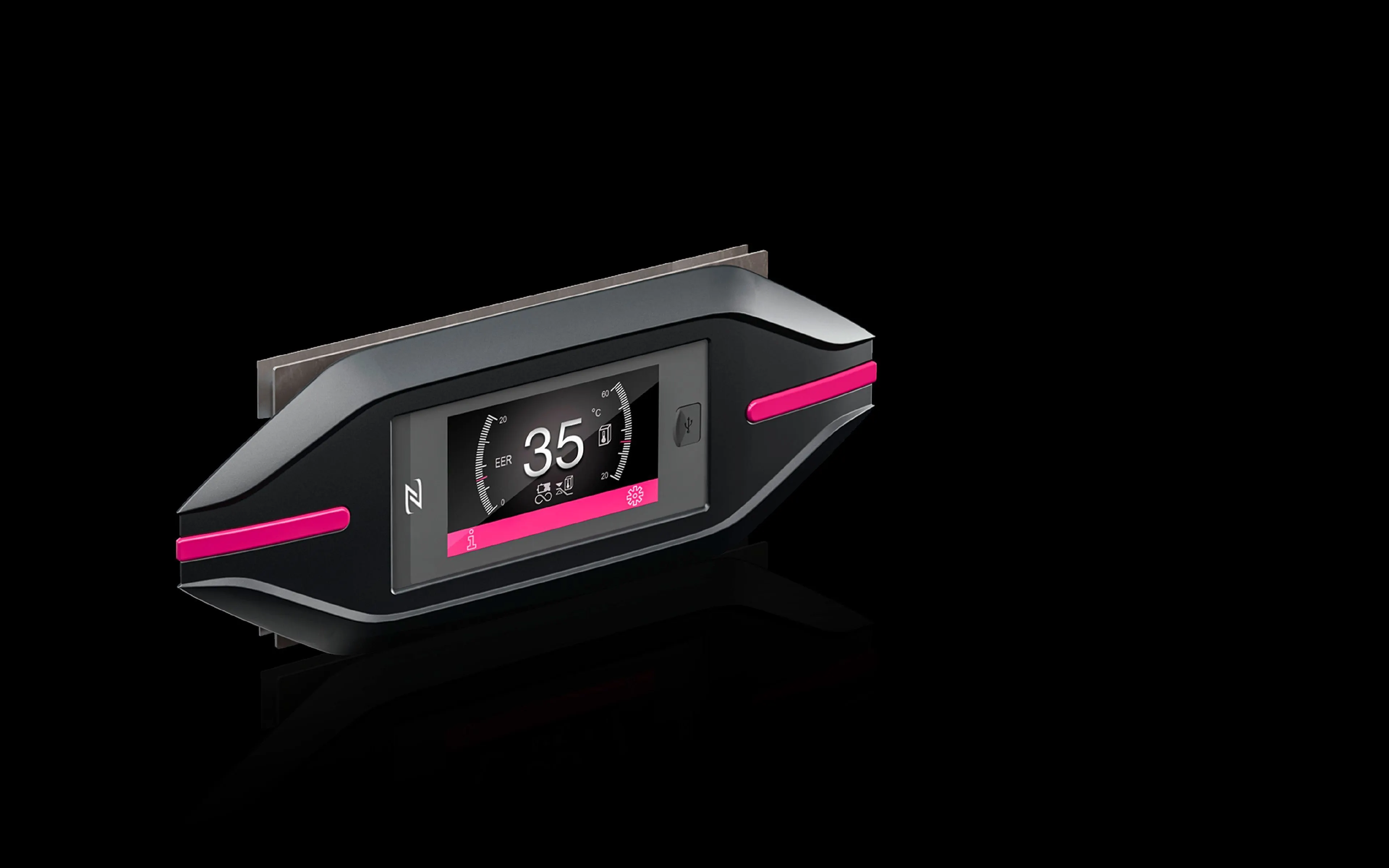

3355700 Rittal: SK Display frame, for Blue e+ roof-mounted cooling unit and VX25 Blue e+ integration, Plastic, WHD: 316 x 118 x 27.5 mm
Article number
SK 3355.700
Product description
The display frame allows the touch display of the roof-mounted cooling unit Blue e+ or the VX25 Blue e+ integration solution to be positioned in the enclosure door.
Benefits
For positioning the display at the optimum operator height
Material
Plastic
Colour
RAL 7016
Supply includes
Display frame | Blanking cover | RJ 12 extension cable (3 m) | Assembly parts and sealing material
To fit Model No.
3185.030
Dimensions
Width:Â 316 mm | Height:Â 118 mm | Depth:Â 27.5 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
0.58 kg
Customs tariff number
73269098
EAN
4028177927131
ETIM 9
EC002617
ETIM 8
EC002617
ECLASS 8.0
27189260
Product description
SK Display frame, for Blue e+ roof-mounted cooling unit and VX25 Blue e+ integration, Plastic, WHD: 316 x 118 x 27.5 mm
