3359600
Part Number: 3359600
Product Information
Extended Description

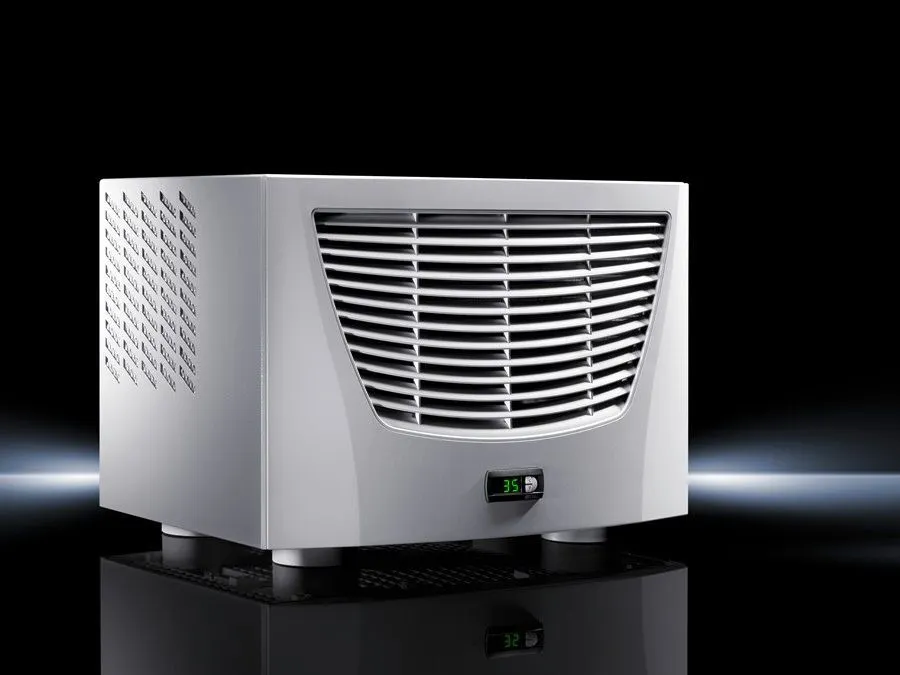

3359600 Rittal: SK cooling unit Blue e, roof-mounted, 0.77 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 597 x 417 x 380 mm
Article number
SK 3359.600
Design
roof-mounted
Product description
Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard.
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Stainless steel 1.4301 (AISI 304)
Colour
RAL 9007
Supply includes
Condenser with hydrophobic RiNano coating | Integral electric condensate evaporation | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 0.77 kW | Cooling output L35 L35/60 Hz: 0.78 kW | Cooling output L35 L50/50 Hz: 0.6 kW | Cooling output L35 L50/60 Hz: 0.47 kW
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Note
The roof-mounted cooling unit 3273.500 is also suitable for office applications, thanks to its low noise level.
Rated current max.
At 50 Hz: 2.8 A | At 60 Hz: 3.7 A
Start-up current max.
At 50 Hz: 9.2 A | At 60 Hz: 9 A
Air throughput (unimpeded air flow)
External circuit: 800 m³/h | Internal circuit: 585 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.14 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.86
Design
roof-mounted
Dimensions
Width: 597 mm | Height: 417 mm | Depth: 380 mm
Protection category to IEC 60 529
External circuit IP 34
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 0.4 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.25 t
Type of electrical connection
Plug-in terminal strip
Duty cycle
100 %
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...55 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.36 kW | Power consumption L35 L35/60 Hz: 0.42 kW | Power consumption L35 L50/50 Hz: 0.44 kW | Power consumption L35 L50/60 Hz: 0.48 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Miniature circuit-breaker/fuse: 10 A
Note on Model No.
Extended delivery times.
Packs of
1 pc(s).
Weight/pack
32 kg
Customs tariff number
84158200
EAN
4028177429659
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK cooling unit Blue e, roof-mounted, 0.77 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 597 x 417 x 380 mm
