3366545
Part Number: 3366545
Product Information
Extended Description

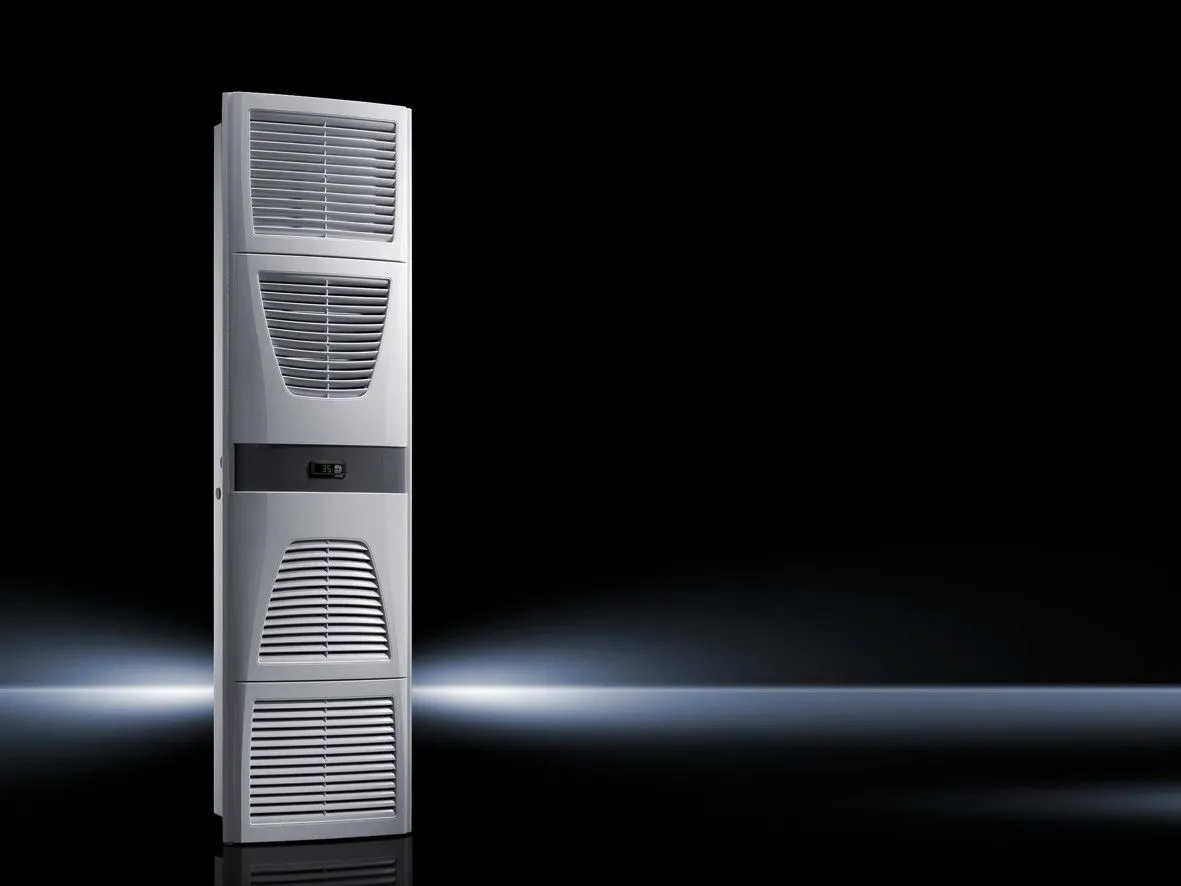

3366545 Rittal: SK Cooling unit Blue e, wall-mounted, slimline, 1.25 kW, 400-460 V, 3~, 50-60 Hz, sheet steel, WHD: 435 x 1590 x 205 mm
Article number
SK 3366.545
Design
wall-mounted | Flat
Product description
Energy-efficient Blue e wall-mounted cooling units in the output categories 300 W to 4000 W and with integral electrical condensate evaporator (from 1000 W).
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Sheet steel
Colour
RAL 7035
Supply includes
Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts | Integral electric condensate evaporation | Assembly parts for internal mounting | Condenser with hydrophobic RiNano coating
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 1.25 kW | Cooling output L35 L35/60 Hz: 1.25 kW | Cooling output L35 L50/50 Hz: 0.8 kW | Cooling output L35 L50/60 Hz: 0.8 kW
Rated operating voltage
400 V, 3~, 50 Hz
Note on Model No.
For external mounting of the cooling unit, trim frame 3377.000 including assembly parts may be fitted. This gives the cooling unit a closed front appearance.
Rated current max.
At 50 Hz: 1.9 A | At 60 Hz: 1.8 A
Start-up current max.
At 50 Hz: 6 A | At 60 Hz: 6 A
Air throughput (unimpeded air flow)
External circuit: 910 m³/h | Internal circuit: 860 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.78 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.78
Design
wall-mounted
Dimensions
Width: 435 mm | Height: 1,590 mm | Depth: 205 mm
Protection category to IEC 60 529
External circuit IP 34
Protection category NEMA
UL Type 12
Refrigerant/cooling medium
Refrigerant: R134a | Quantity: 0.7 kg | Global Warming Potential (GWP): 1,430 | CO₂ equivalent (CO₂e): 1 t
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...50 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 0.7 kW | Power consumption L35 L35/60 Hz: 0.8 kW | Power consumption L35 L50/50 Hz: 0.8 kW | Power consumption L35 L50/60 Hz: 0.8 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Transformer circuit-breaker: 2 A
Packs of
1 pc(s).
Weight/pack
46 kg
Customs tariff number
84158200
EAN
4028177977594
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK Cooling unit Blue e, wall-mounted, slimline, 1.25 kW, 400-460 V, 3~, 50-60 Hz, sheet steel, WHD: 435 x 1590 x 205 mm
