3378380
Part Number: 3378380
Product Information
Extended Description

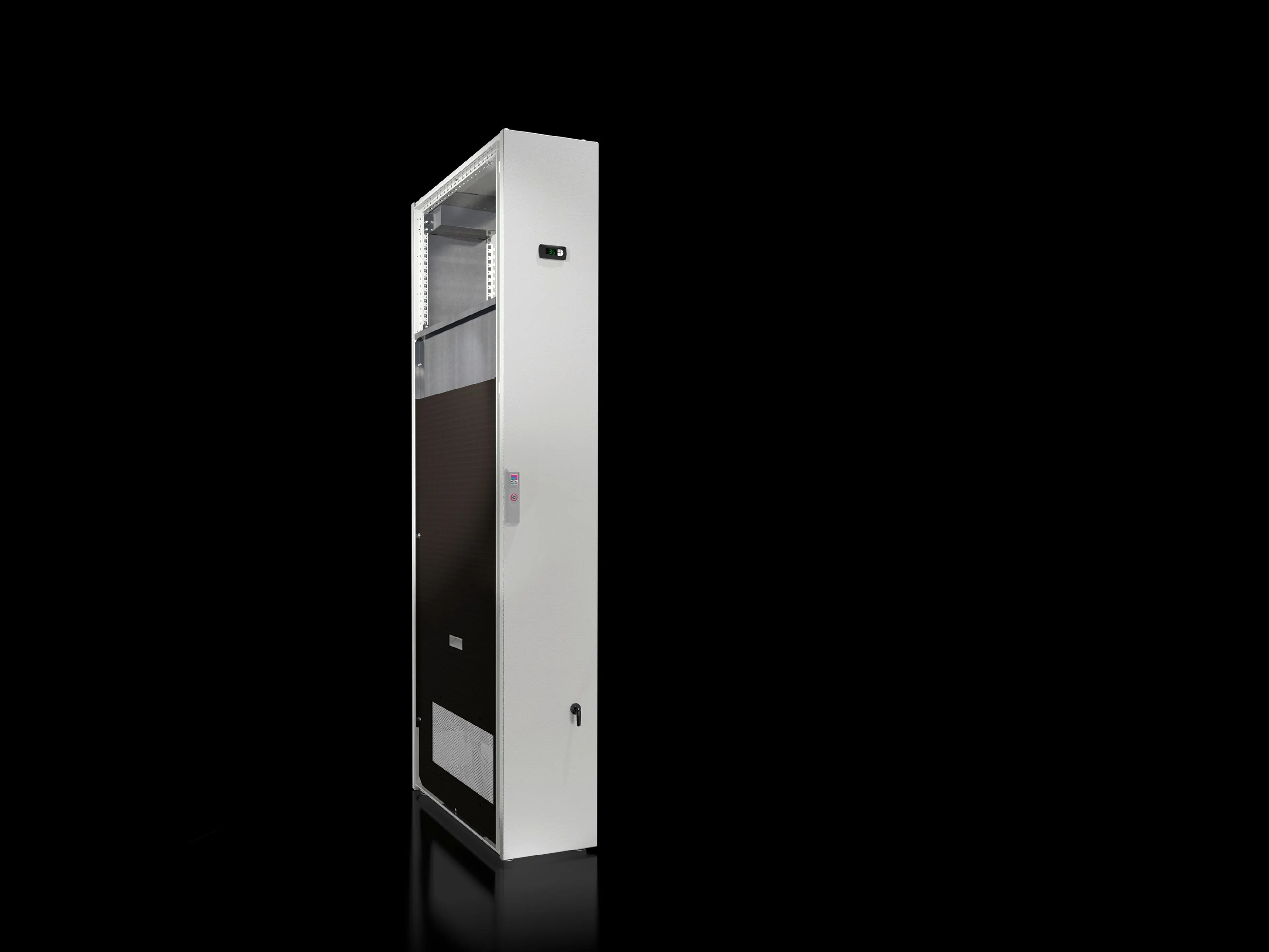

3378380 Rittal: SK Liquid cooling package, air/water heat exchanger in the bayed enclosure system VX25, 9.5 kW, 230 V, 1~, 50/60 Hz, water-carrying parts: copper/brass, WHD: 300 x 2000 x 800 mm
Article number
SK 3378.380
Design
Water-carrying parts, copper/brass (Cu/CuZn)
Product description
Air/water heat exchanger in the bayed enclosure system VX25. To fit 600 or 800 mm deep and 2,000 mm high VX25 enclosures. Air outlet either with 5 kW on each side or 10 kW on one side only. Flexible options for water connection on the top or bottom of the unit.
Colour
RAL 7035
Supply includes
Cooling unit ready for connection, wired to terminal strip | Front door with display | Rear panel | Multilingual documentation
Total cooling output
L 35 W 10 at 2000 l/h: 9.5 kW
Rated operating voltage
230 V, 1~, 50 Hz/60 Hz
Power consumption Pel
At 50 Hz: 350 W | At 60 Hz: 350 W
Rated current max.
At 50 Hz: 2.65 A | At 60 Hz: 2.62 A
Permissible operating pressure (p. max.)
1 ‐ 6 bar
Type of electrical connection
Connection clamp
Duty cycle
100 %
Cooling medium
Water (see Internet for specifications)
Water inlet temperature
7 °C...30 °C
Water connections
G ¾" internal thread
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
5 °C...70 °C
Note
Bayable by screw-fastening at the sides
Dimensions
Width: 300 mm | Height: 2,000 mm | Depth: 800 mm
Noise level
60 dB(A)
Pre-fuse
Miniature circuit-breaker/fuse: 4 A
Setting range
20 °C...55 °C
Protection category to IEC 60 529
IP 55
Packs of
1 pc(s).
Weight/pack
115 kg
Customs tariff number
84158200
EAN
4028177958272
ETIM 9
EC002515
ETIM 8
EC002515
ECLASS 8.0
27180712
Product description
SK Liquid cooling package, air/water heat exchanger in the bayed enclosure system VX25, 9.5 kW, 230 V, 1~, 50/60 Hz, water-carrying parts: copper/brass, WHD: 300 x 2000 x 800 mm
