3385540
Part Number: 3385540
Product Information
Extended Description

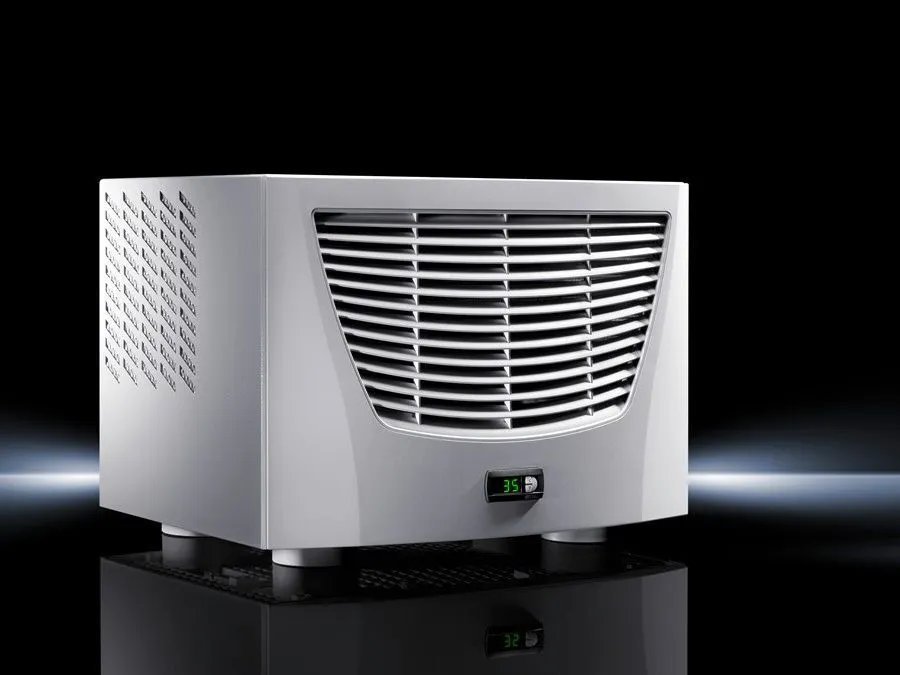

3385540 Rittal: SK cooling unit Blue e, roof-mounted, 2 kW, 400 V, 2~, 50/60 Hz, Sheet steel, WHD: 597 x 417 x 475 mm
Article number
SK 3385.540
Design
roof-mounted
Product description
Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard.
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Sheet steel
Colour
RAL 7035
Supply includes
Condenser with hydrophobic RiNano coating | Integral electric condensate evaporation | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 2 kW | Cooling output L35 L35/60 Hz: 2.14 kW | Cooling output L35 L50/50 Hz: 1.58 kW | Cooling output L35 L50/60 Hz: 1.51 kW
Rated operating voltage
400 V, 2~, 50 Hz/60 Hz
Note
The roof-mounted cooling unit 3273.500 is also suitable for office applications, thanks to its low noise level.
Rated current max.
At 50 Hz: 4.2 A | At 60 Hz: 4.4 A
Start-up current max.
At 50 Hz: 11.7 A | At 60 Hz: 11.7 A
Air throughput (unimpeded air flow)
External circuit: 1,760 m³/h | Internal circuit: 470 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 1.96 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.69
Design
roof-mounted
Dimensions
Width: 597 mm | Height: 417 mm | Depth: 475 mm
Protection category to IEC 60 529
External circuit IP 34
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 0.9 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 0.57 t
Type of electrical connection
Plug-in terminal strip
Duty cycle
100 %
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Operating temperature max @60 Hz
53 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...53 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 1.02 kW | Power consumption L35 L35/60 Hz: 1.27 kW | Power consumption L35 L50/50 Hz: 1.15 kW | Power consumption L35 L50/60 Hz: 1.29 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Transformer circuit-breaker: 6.3...10 A
Packs of
1 pc(s).
Weight/pack
48 kg
Customs tariff number
84158200
EAN
4028177323285
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK cooling unit Blue e, roof-mounted, 2 kW, 400 V, 2~, 50/60 Hz, Sheet steel, WHD: 597 x 417 x 475 mm
