Part Number: 3387640
Product Information
Extended Description

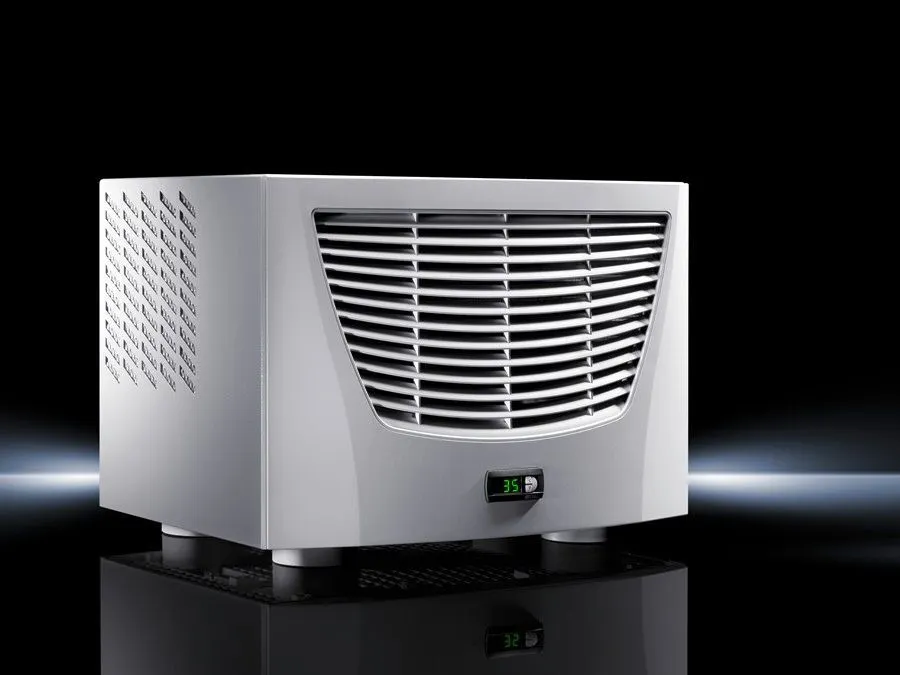

3387640 Rittal: SK cooling unit Blue e, roof-mounted, 3.8 kW, 400-460 V, 3~, 50/60 Hz, Stainless steel, WHD: 796 x 470 x 580 mm
Article number
SK 3387.640
Design
roof-mounted
Product description
Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard.
Benefits
May be linked to the IoT interface via Blue e IoT adaptor for cooling units from 500 W cooling output with e-Comfort controller
Material
Stainless steel 1.4301 (AISI 304)
Colour
RAL 9007
Supply includes
Condenser with hydrophobic RiNano coating | Integral electric condensate evaporation | Fully wired ready for connection (plug-in terminal strip) | Drilling template | Assembly parts
Total cooling output to DIN EN 14511
Cooling output L35 L35/50 Hz: 3.8 kW | Cooling output L35 L35/60 Hz: 4 kW | Cooling output L35 L50/50 Hz: 3.05 kW | Cooling output L35 L50/60 Hz: 3.3 kW
Rated operating voltage
400 V, 3~, 50 Hz
Note
The roof-mounted cooling unit 3273.500 is also suitable for office applications, thanks to its low noise level.
Rated current max.
At 50 Hz: 4.1 A | At 60 Hz: 4.5 A
Start-up current max.
At 50 Hz: 17 A | At 60 Hz: 19 A
Air throughput (unimpeded air flow)
External circuit: 3,870 m³/h | Internal circuit: 1,420 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35
Refrigeration factor L35 L35 (EER) 50 Hz: 2.24 | Refrigeration factor L35 L35 (EER) 60 Hz: 1.97
Design
roof-mounted
Dimensions
Width: 796 mm | Height: 470 mm | Depth: 580 mm
Protection category to IEC 60 529
External circuit IP 34
Refrigerant/cooling medium
Refrigerant: R-513A | Quantity: 1.8 kg | Global Warming Potential (GWP): 631 | CO₂ equivalent (CO₂e): 1.14 t
Type of electrical connection
Plug-in terminal strip
Duty cycle
100 %
Temperature control
e-Comfort controller (factory setting +35 °C)
Operating temperature range
10 °C...55 °C
Storage temperature range
-40 °C...70 °C
Setting range
20 °C...55 °C
Power consumption Pel
Power consumption L35 L35/50 Hz: 1.7 kW | Power consumption L35 L35/60 Hz: 2.03 kW | Power consumption L35 L50/50 Hz: 1.84 kW | Power consumption L35 L50/60 Hz: 2.31 kW
Permissible operating pressure (p. max.)
28 bar
Pre-fuse
Motor circuit-breaker: 6.3...10 A
Note on Model No.
Extended delivery times.
Packs of
1 pc(s).
Weight/pack
77 kg
Customs tariff number
84158200
EAN
4028177380240
ETIM 9
EC000855
ETIM 8
EC000855
ECLASS 8.0
27180704
Product description
SK cooling unit Blue e, roof-mounted, 3.8 kW, 400-460 V, 3~, 50/60 Hz, Stainless steel, WHD: 796 x 470 x 580 mm
