3418010
Part Number: 3418010
Manufacturer
Rittal
Part number
3418010
Category
Alt Part Number
SV 3418.010
Product Information
Extended Description

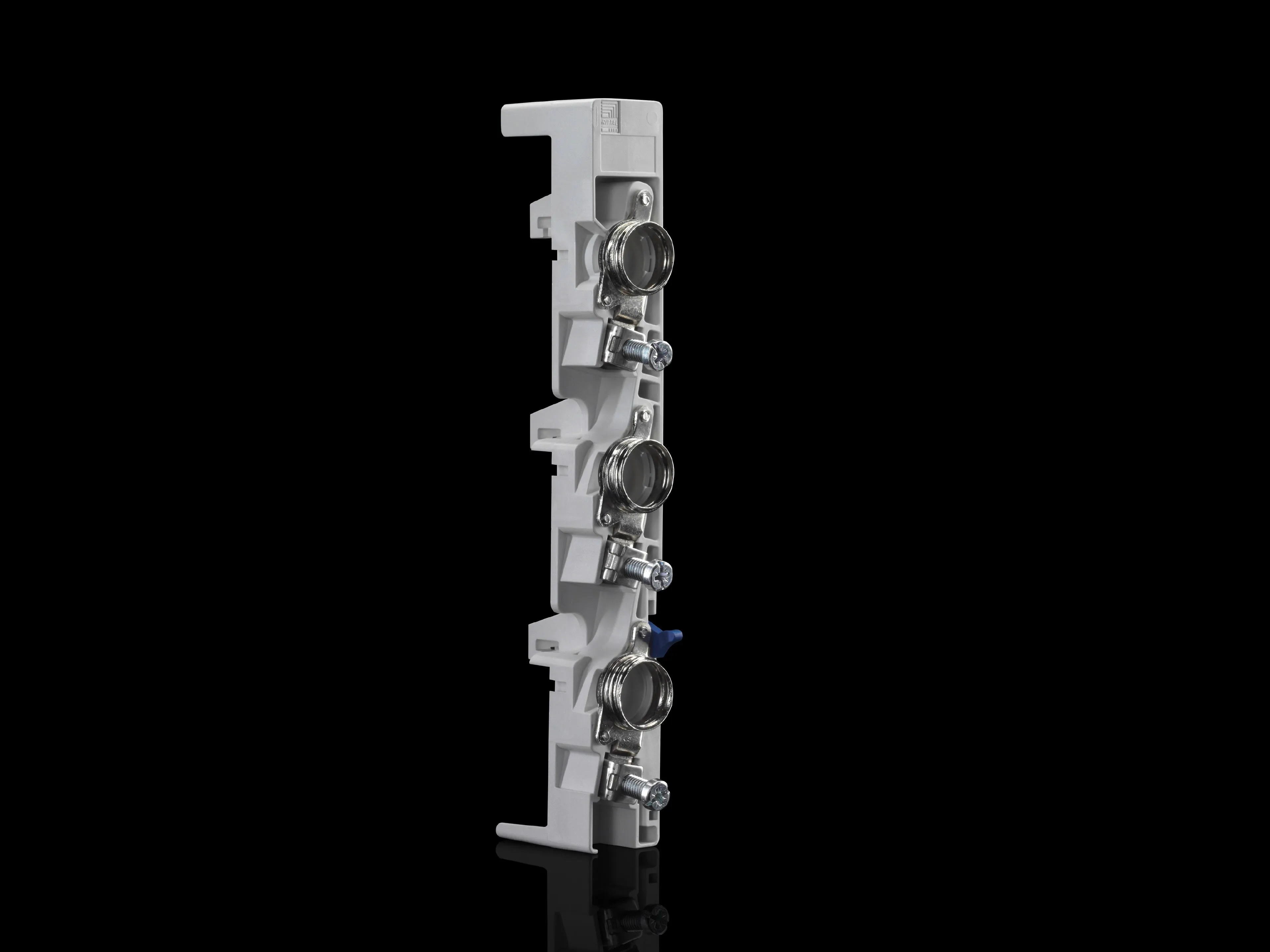

3418010 Rittal: SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve
Article number
SV 3418.010
Material
Bus-mounting fuse base: Fibreglass-reinforced, thermoplastic polyester (PBT) | Contact hazard protection: Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Note
Wire end ferrules should be used with fine wire conductors
For bar systems with centre-to-centre spacing
60 mm
Type of electrical connection
Box terminal
Fuse inserts
D 02-E 18 (adaptor sleeve)
Rated insulation voltage
690 V
Rated current max.
63 A
Note
For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-3)
Dimensions
Width: 27 mm | Height: 209 mm
Connection for round conductor
1.5 ‐ 25 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
400 V, 3~
Number of poles
3-pole
Rated operating voltage (L1 + L2)
400 V (DC)
Rated operating voltage (L1 + L3)
400 V (DC)
Packs of
10 pc(s).
Weight/pack
1.69 kg
Copper weight (kg per piece)
0.018
Customs tariff number
85369095
EAN
4028177674929
ETIM 9
EC001644
ETIM 8
EC001644
ECLASS 8.0
27142120
Product description
SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve
