3431000
Part Number: 3431000
Manufacturer
Rittal
Part number
3431000
Category
Alt Part Number
SV 3431.000
Product Information
Extended Description

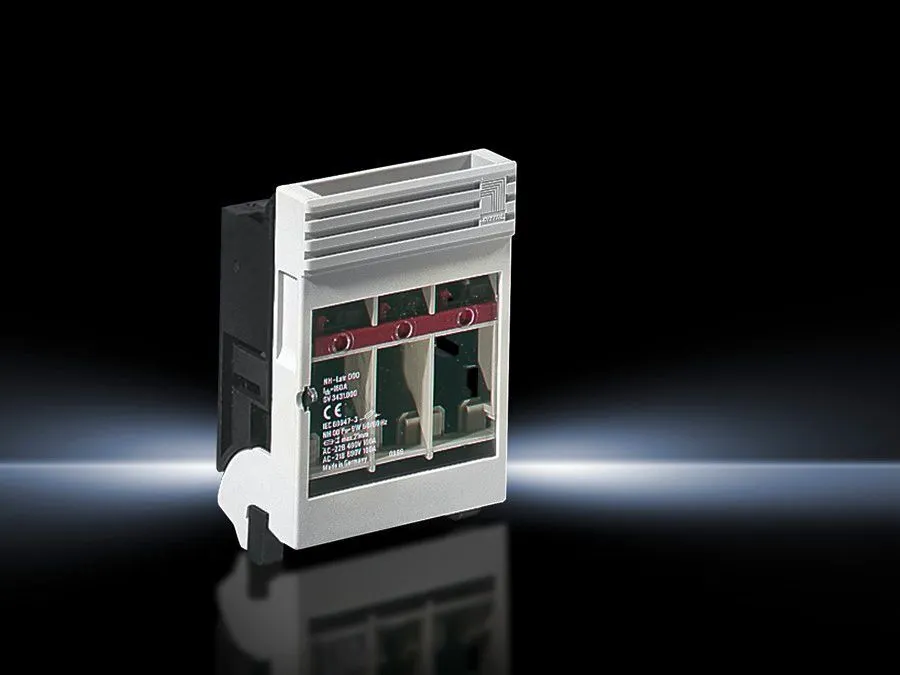

3431000 Rittal: SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, for mounting plate assembly
Article number
SV 3431.000
Material
Fibreglass-reinforced polyamide | Fire protection corresponding to UL 94 | Contact tracks: Silver-plated hard copper
Colour
Chassis: RAL 9011 | Cover: RAL 7035
Clamping area for laminated copper bars
Clamping area width: 10 mm | Clamping area height: 10 mm
for mounting plate assembly
Yes
Cable outlet
Top/bottom
Type of electrical connection
Box terminal
Rated operating current max.
100 A
For NH size
000
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 89 mm | Height: 141.5 mm
Connection for round conductor
1.5 ‐ 50 mm²
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
0.451 kg
Copper weight (kg per piece)
0.15
Customs tariff number
85369095
EAN
4028177042391
ETIM 9
EC001040
ETIM 8
EC001040
ECLASS 8.0
27371401
Product description
SV NH fuse-switch disconnector, size 000, 100 A, 690 V, 3-pole, box terminal, for mounting plate assembly
