3433040
Part Number: 3433040
Manufacturer
Rittal
Part number
3433040
Category
Alt Part Number
SV 3433.040
Product Information
Extended Description

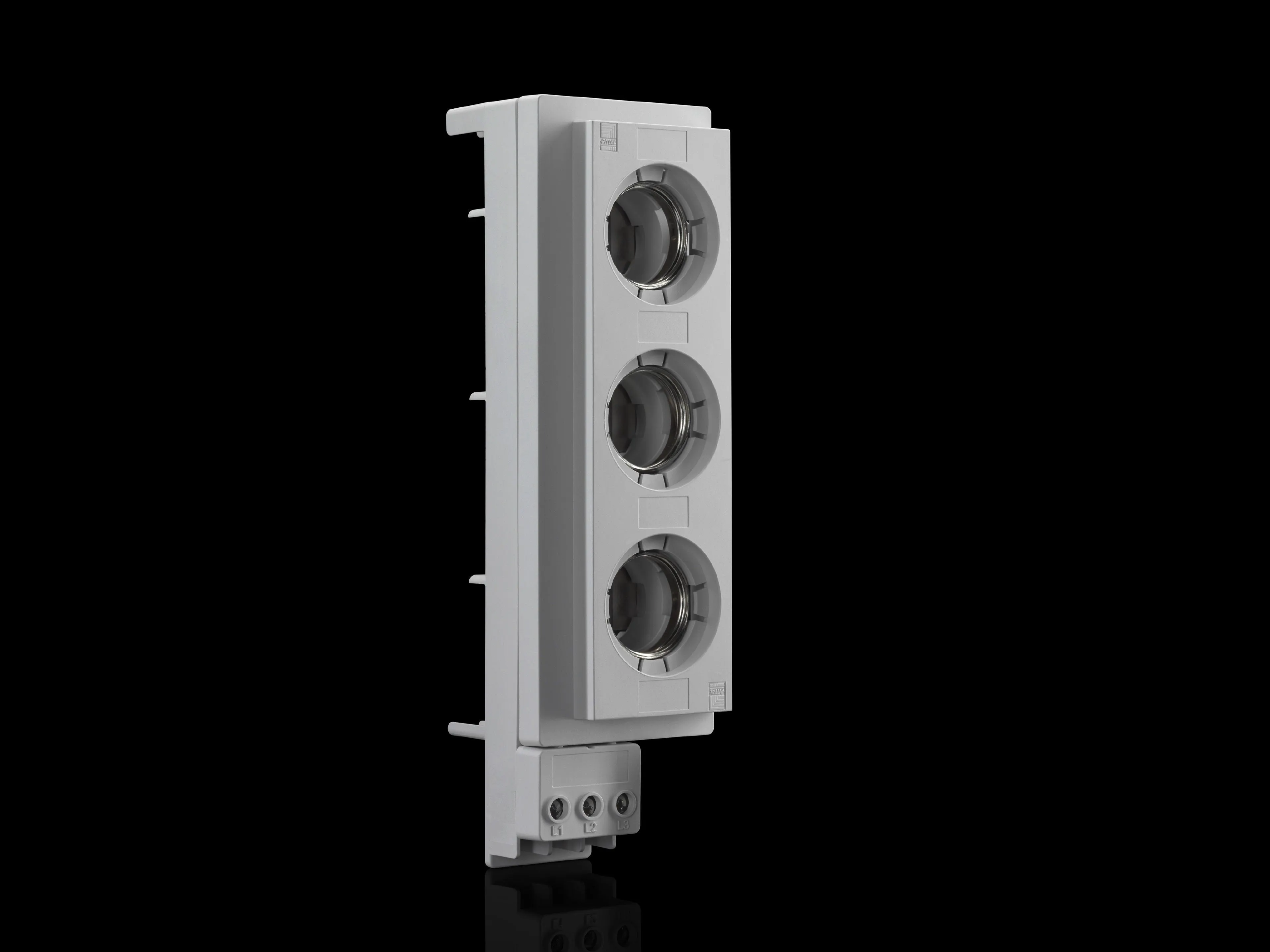

3433040 Rittal: SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw, including cover plate
Article number
SV 3433.040
Design
Easy Connect
Material
Bus-mounting fuse base: Fibreglass-reinforced, thermoplastic polyester (PBT) | Contact hazard protection: Polyamide | Fire protection corresponding to UL 94-V0 | Contact hazard protection: Polyamide
Colour
RAL 7035
Supply includes
Pre-configured element ready for connection including cover plate, contact hazard protection and exterior connection clamps
Note
Wire end ferrules should be used with fine wire conductors
For bar systems with centre-to-centre spacing
60 mm
Type of electrical connection
Box terminal
Fuse inserts
D III-E 33 (adaptor screw)
Rated insulation voltage
690 V
Rated current max.
63 A
Note
For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-3)
Dimensions
Width: 71 mm | Height: 251 mm
Connection for round conductor
1.5 ‐ 16 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
690 V (DC)
Number of poles
3-pole
Rated operating voltage (L1 + L2)
690 V (DC)
Rated operating voltage (L1 + L3)
690 V (DC)
Packs of
5 pc(s).
Weight/pack
2.495 kg
Copper weight (kg per piece)
0.119
Customs tariff number
85369095
EAN
4028177675018
ETIM 9
EC001644
ETIM 8
EC001644
ECLASS 8.0
27142120
Product description
SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw, including cover plate
