3439010
Part Number: 3439010
Manufacturer
Rittal
Part number
3439010
Category
Alt Part Number
SV 3439.010
Product Information
Extended Description

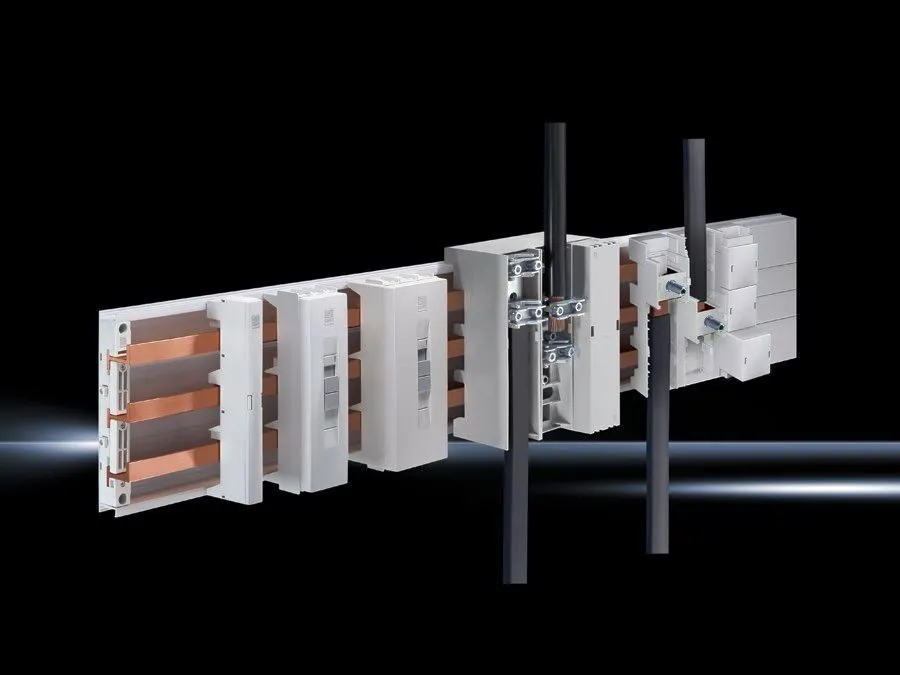

3439010 Rittal: SV Connection adaptor, 600 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-240 mm², clamping area WH: 24x21 mm
Article number
SV 3439.010
Material
Cover: ABS | Chassis: Fibreglass-reinforced, thermoplastic polyester (PBT) | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated current max.
600 A
Rated operating voltage
690 V, 3~
Cable outlet
Top/bottom
For bar systems with centre-to-centre spacing
60 mm
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 180 mm | Height: 247 mm
Connection of round conductors, multi-wire
35 ‐ 240 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
24 x 21 mm
Packs of
1 pc(s).
Weight/pack
4.56 kg
Copper weight (kg per piece)
0.732
Customs tariff number
85369010
EAN
4028177236295
ETIM 9
EC001531
ETIM 8
EC001531
ECLASS 8.0
27370304
Product description
SV Connection adaptor, 600 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-240 mm², clamping area WH: 24x21 mm
