3450500
Part Number: 3450500
Manufacturer
Rittal
Part number
3450500
Category
Alt Part Number
SV 3450.500
Product Information
Extended Description

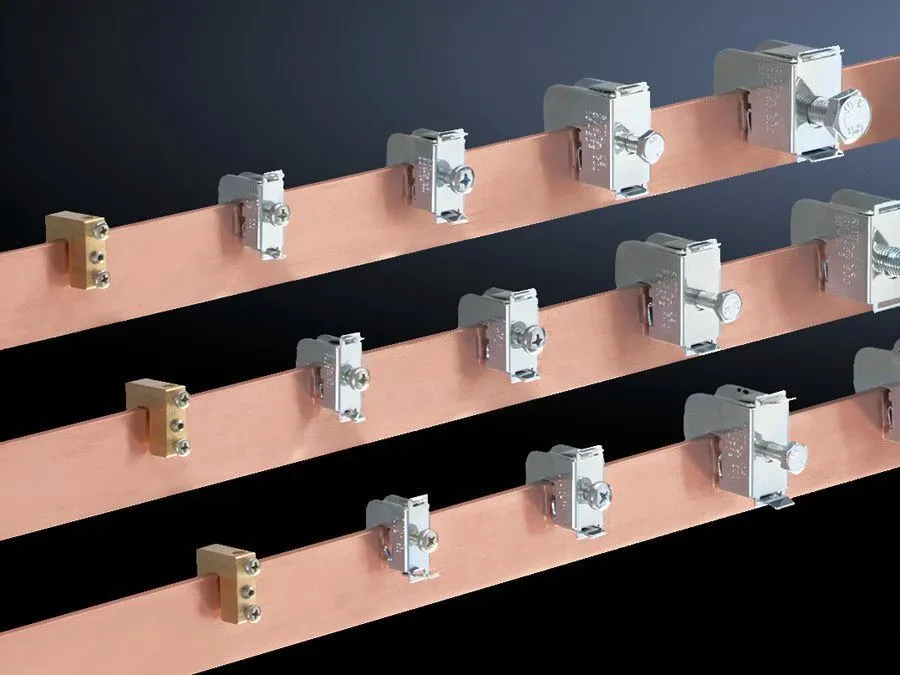

3450500 Rittal: SV Conductor connection clamp, 1-4 mm², for bar thickness 5 mm
Article number
SV 3450.500
Product description
For connecting round conductors and laminated copper bars.
Material
Sheet steel
Surface finish
Zinc-plated, passivated
Note
Wire end ferrules should be used with fine wire conductors
Connection for round conductor
1 ‐ 4 mm²
For bar thickness
5 mm
Packs of
15 pc(s).
Weight/pack
0.27 kg
PCF per pack (cradle-to-gate)
1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177042674
ETIM 9
EC000001
ETIM 8
EC000001
ECLASS 8.0
27141146
Product description
SV Conductor connection clamp, 1-4 mm², for bar thickness 5 mm
