3451505
Part Number: 3451505
Manufacturer
Rittal
Part number
3451505
Category
Alt Part Number
SV 3451.505
Product Information
Extended Description

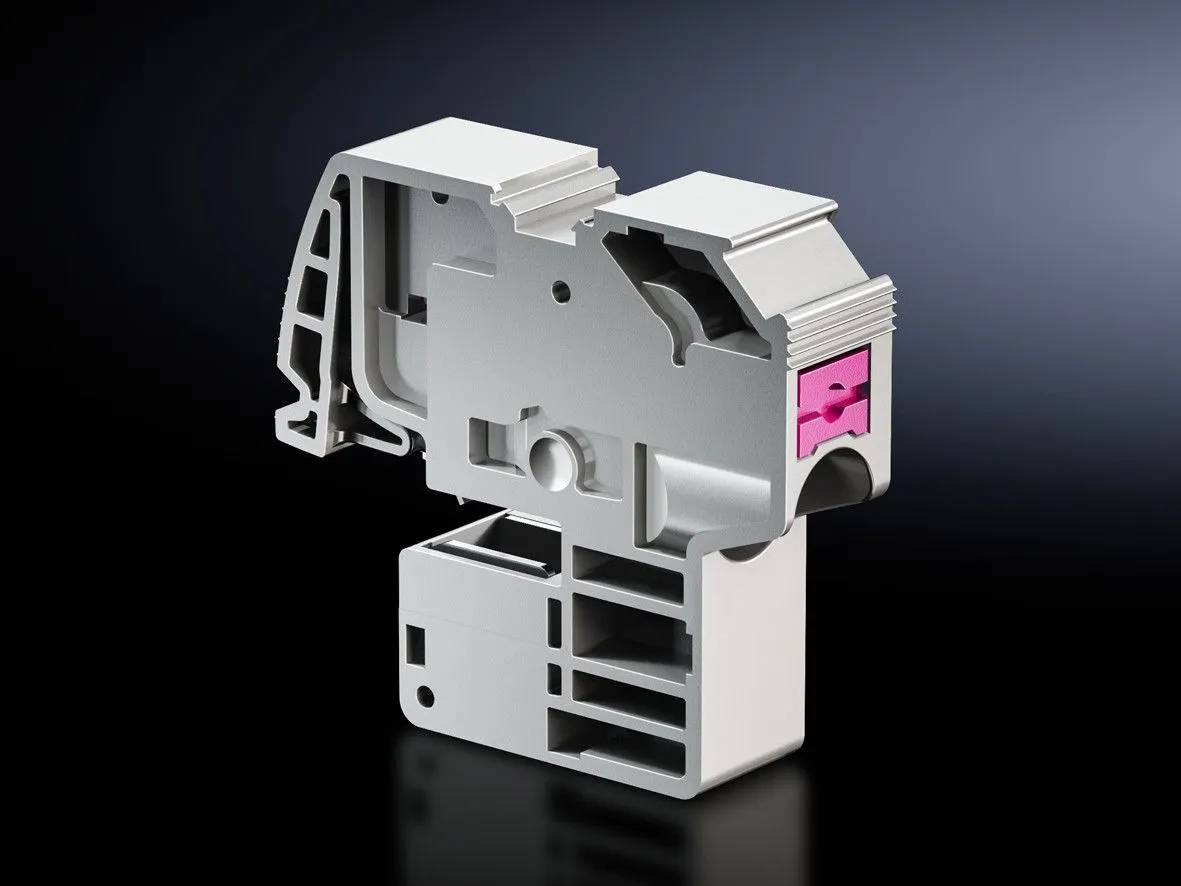

3451505 Rittal: SV Conductor connection clamp, 1.5 – 16 mm² (Push-in), for bar thickness 5 mm
Article number
SV 3451.505
Benefits
Maintenance-free
Applications
For use as busbar pick-off of L, N or PE conductors in switchgear and controlgear, and as a conductor connection clamp in meter boxes.
Function principle
Fully insulated terminal for tool-free conductor connection
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7042
Test specification
IEC 60 999-1
Connection of round conductors, fine wire with wire end ferrule
1.5 ‐ 16 mm²
Connection of round conductors, fine wire without wire end ferrule
1.5 ‐ 16 mm²
Connection of round conductors, multi-wire
1.5 ‐ 16 mm²
Connection of round conductors, single-wire
1.5 ‐ 16 mm²
For bar thickness
5 mm
Packs of
10 pc(s).
Weight/pack
0.23 kg
PCF per pack (cradle-to-gate)
0.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177813977
ETIM 9
EC000001
ETIM 8
EC000001
ECLASS 8.0
27141146
Product description
SV Conductor connection clamp, 1.5 – 16 mm² (Push-in), for bar thickness 5 mm
