3453500
Part Number: 3453500
Manufacturer
Rittal
Part number
3453500
Category
Alt Part Number
SV 3453.500
Product Information
Extended Description

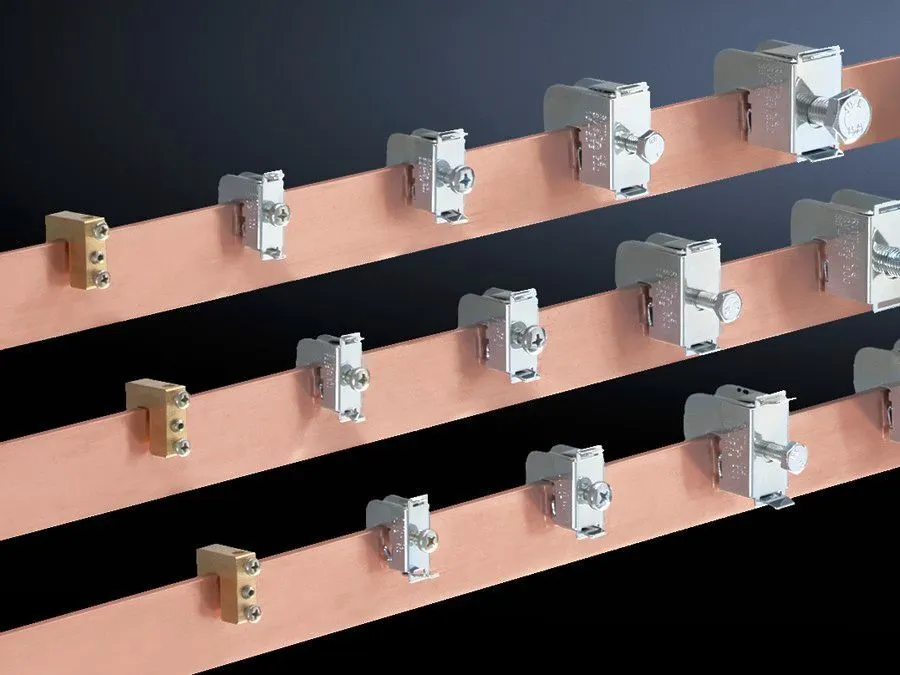

3453500 Rittal: SV Conductor connection clamp, 35-70 mm², clamping area WH: 16,5x15 mm, for bar thickness 5 mm
Article number
SV 3453.500
Product description
For connecting round conductors and laminated copper bars.
Material
Sheet steel
Surface finish
Zinc-plated, passivated
Clamping area for laminated copper bars (W x H)
16.5 x 15 mm
Note
Wire end ferrules should be used with fine wire conductors
Connection for round conductor
35 ‐ 70 mm²
For bar thickness
5 mm
Packs of
15 pc(s).
Weight/pack
1.68 kg
PCF per pack (cradle-to-gate)
6.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177042704
ETIM 9
EC000001
ETIM 8
EC000001
ECLASS 8.0
27141146
Product description
SV Conductor connection clamp, 35-70 mm², clamping area WH: 16,5x15 mm, for bar thickness 5 mm
