3460500
Part Number: 3460500
Manufacturer
Rittal
Part number
3460500
Category
Alt Part Number
SV 3460.500
Product Information
Extended Description

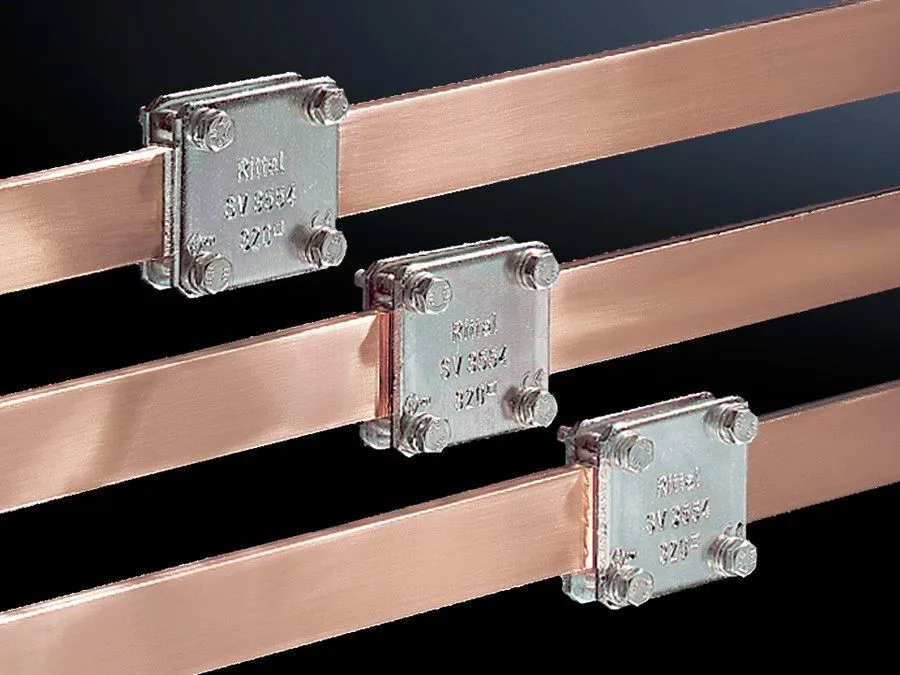

3460500 Rittal: SV Plate clamp, for laminated copper bar, clamping area WH: 65x10 mm, for busbar WH: 80x10 mm
Article number
SV 3460.500
Product description
For connecting laminated copper bars, no drilling required.
Material
Sheet steel
Surface finish
Zinc-plated, passivated
Clamping area for laminated copper bars (W x H)
65 x 10 mm
To fit busbars
80 x 10 mm
To fit busbars
Busbar E-Cu
Packs of
3 pc(s).
Weight/pack
2.202 kg
PCF per pack (cradle-to-gate)
8.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85369010
EAN
4028177149793
ETIM 9
EC000001
ETIM 8
EC000001
ECLASS 8.0
27141146
Product description
SV Plate clamp, for laminated copper bar, clamping area WH: 65x10 mm, for busbar WH: 80x10 mm
