3528000

Part Number: 3528000
3528000
Manufacturer
Rittal
Part number
3528000
Category
Alt Part Number
SV 3528.000

Product Information

Extended Description

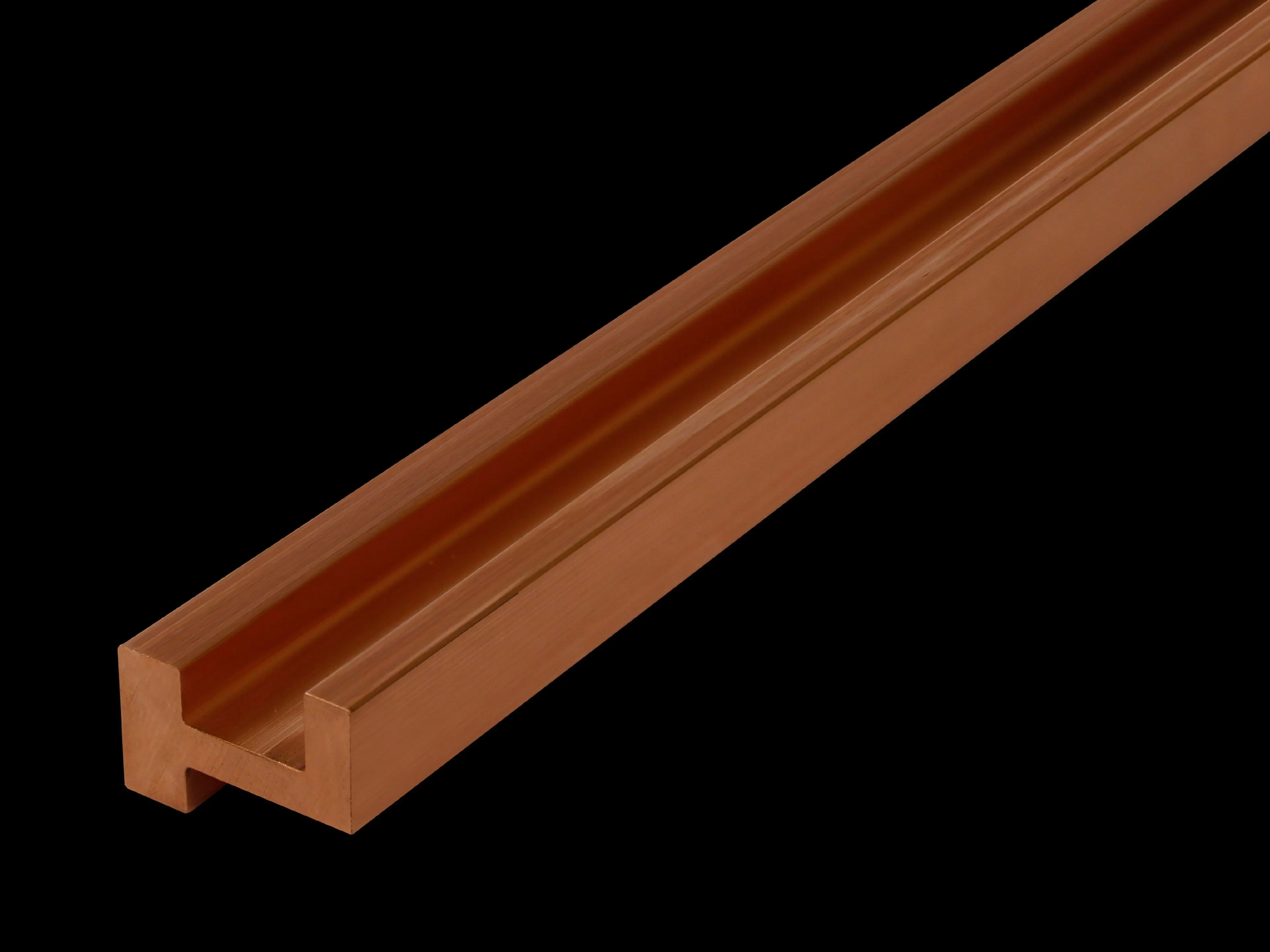

3528000 Rittal: SV PLS special busbar E-Cu, L: 695 mm, PLS 1600, bar thickness: 10 mm, 900 mm² bar cross-section
Article number
SV 3528.000
Material
E-Cu
Bar thickness
10 mm
Cross-section
900 mm²
Length
695 mm
Note
May be cut individually to required length
Busbar type
Busbar E-Cu
To fit busbar system
PLS 1600
Dimensions
Length: 695 mm
To fit
Width: = 800 mm
Packs of
3 pc(s).
Weight/pack
16.86 kg
Copper weight (kg per piece)
5.62
Customs tariff number
74071000
EAN
4028177043787
ETIM 9
EC001522
ETIM 8
EC001522
ECLASS 8.0
27370303
Product description
SV PLS special busbar E-Cu, L: 695 mm, PLS 1600, bar thickness: 10 mm, 900 mm² bar cross-section
